Image-formation system
Electrophotographic process
The electrophotographic process forms an image on the paper. Following are the major components used in
the process:
●
Print cartridges
●
Intermediate transfer belt (ITB)
●
Secondary transfer roller
●
Fuser
●
Laser scanner
The DC controller uses the laser scanner and HVPS to form the toner image on the photosensitive drum. The
image is transferred to the print media and then fused onto the paper.

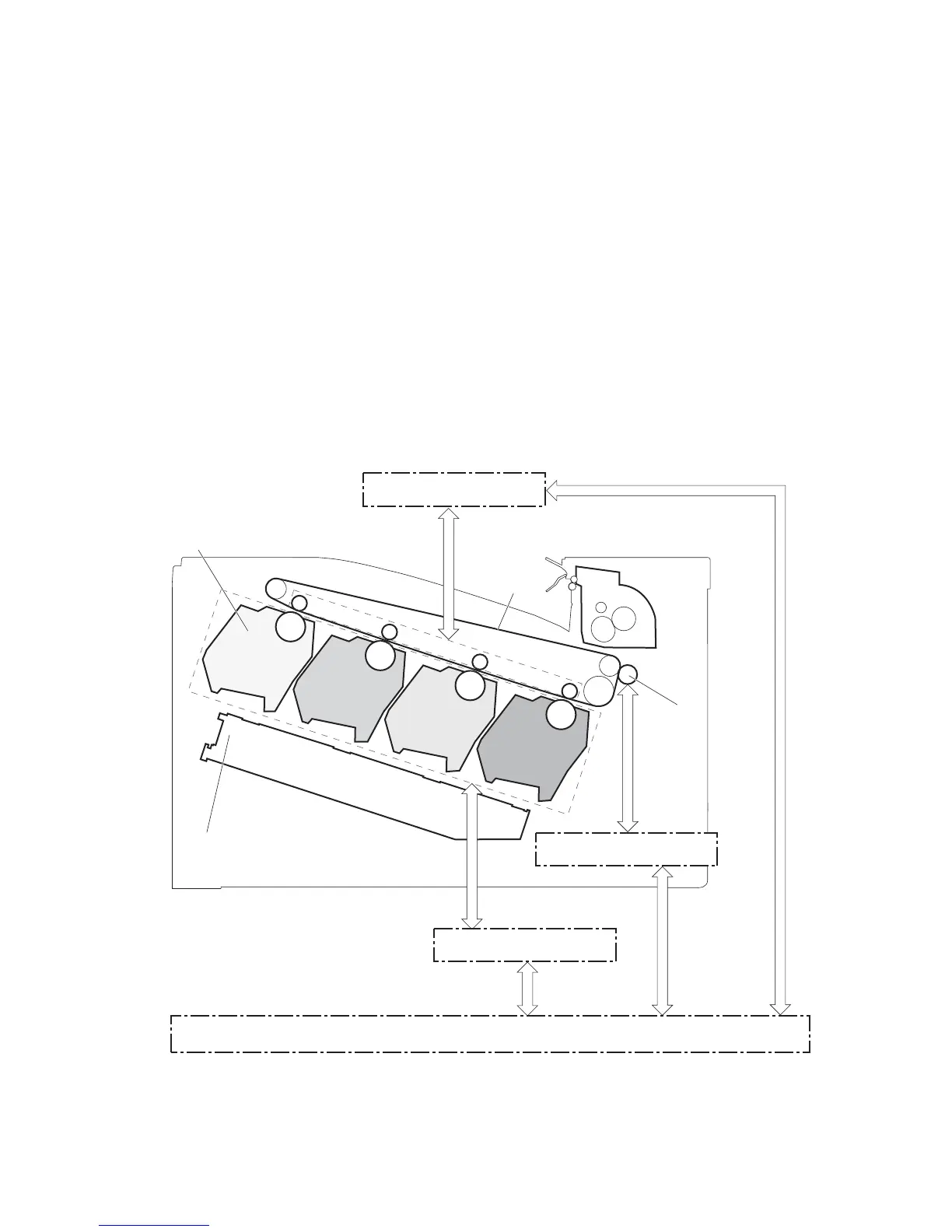

Figure 1-11 Electrophotographic process block diagram
ITB
Fuser
Secondary transfer
roller
Cartridge
Laser scanner
DC controller
DEV high-voltage
power supply
TR2 high-voltage
power supply
TR1 high-voltage
power supply
ENWW Image-formation system 25
