HP M750 series

1x500 paper feeder
The 1x500 paper feeder is referred to as the 1x500PF.
1x500PF external components

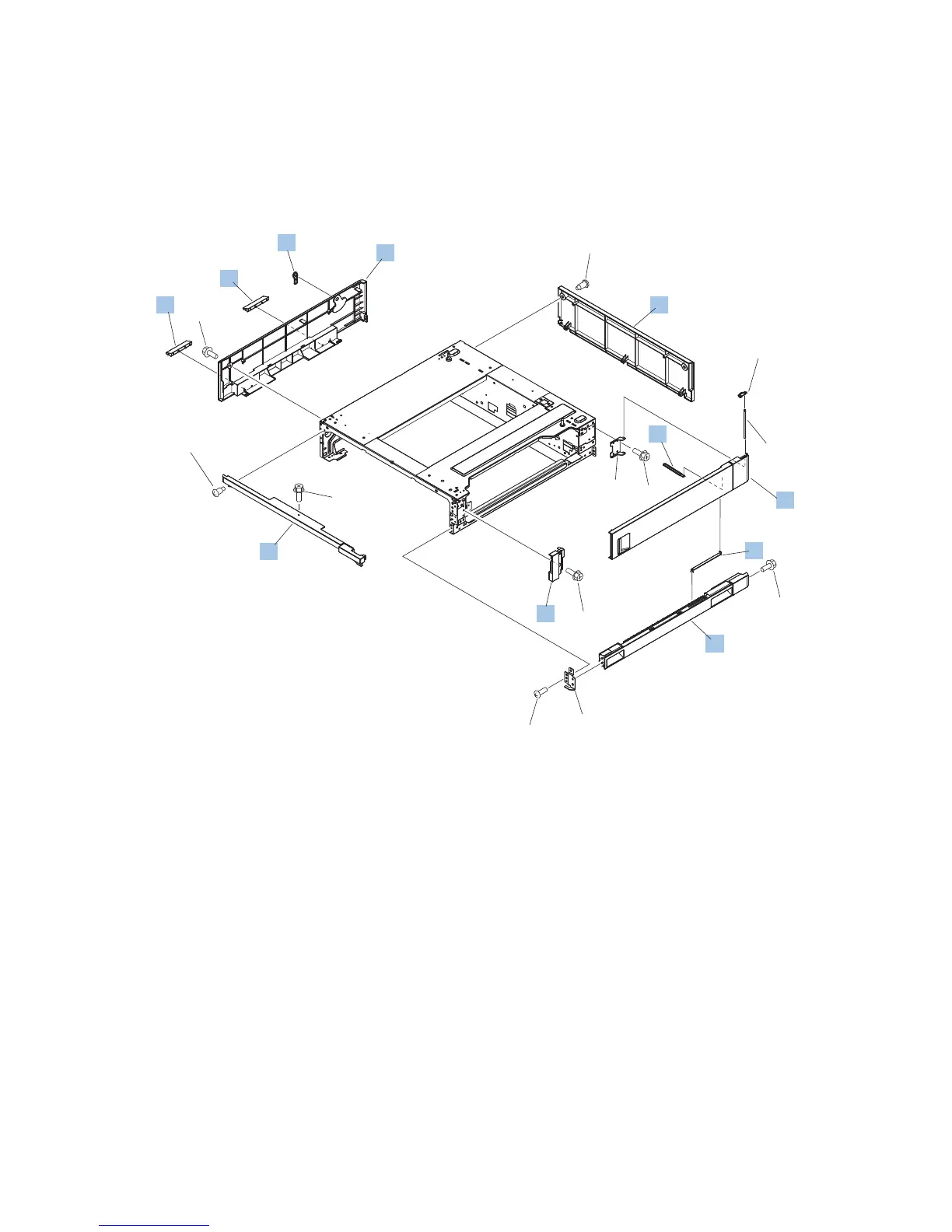

Figure 4-16 1x500PF external components
2
8
9
3
7
4
5
1
6
6
10
*A06
*A03
*A05
*A03
*A01
*A02
*A04
*A04
*A04
*A07
*A04
*A04
578 Chapter 4 Parts and diagrams ENWW
