last-paper. The MP tray last-paper detection roller rotates when the last-paper is picked up. The DC
controller notifies the formatter of a media absence when it detects the last-paper by the last-paper sensor.

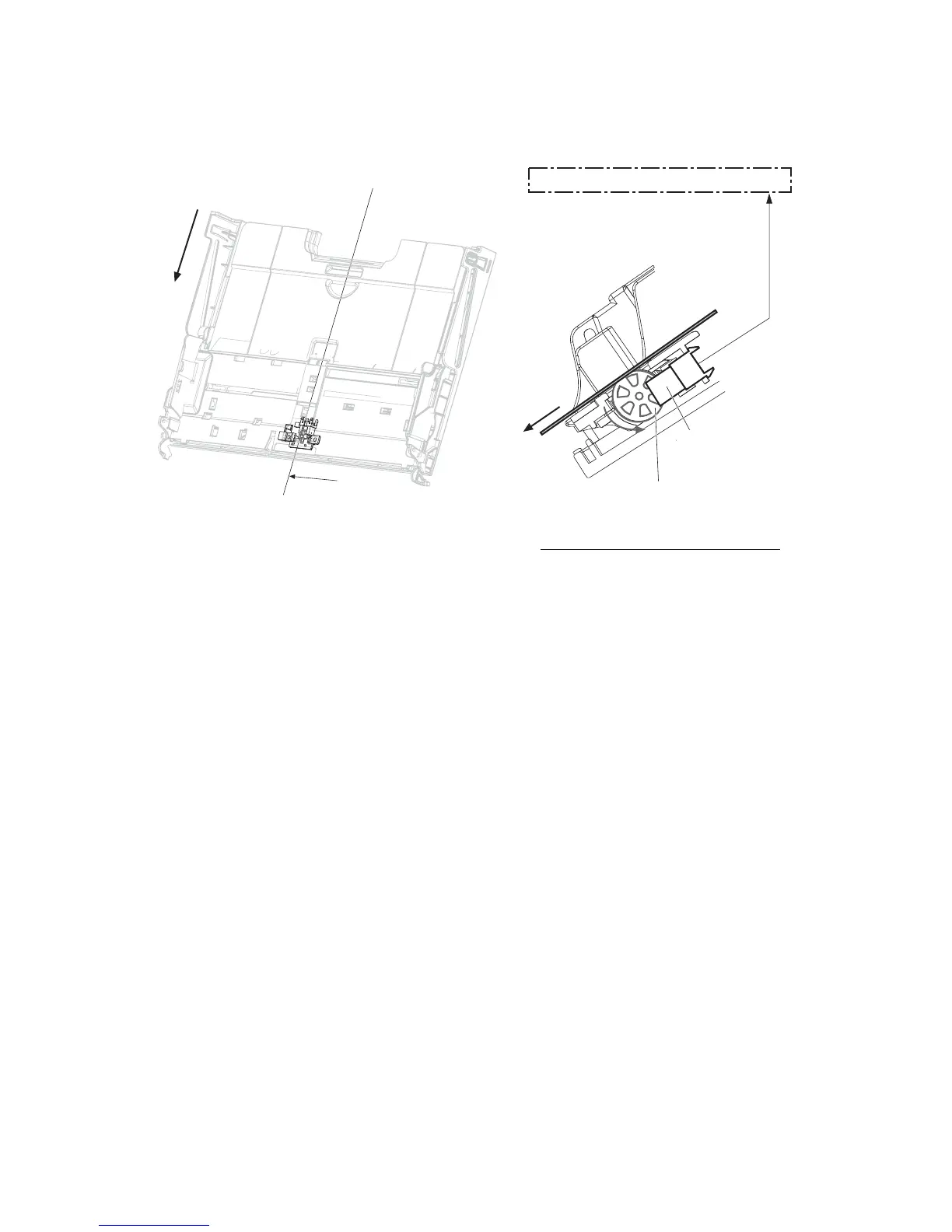

Figure 1-39 Tray 1 (MP tray) last-paper detection
A
DC controller
PS3:
Last-paper sensor
Last-paper
MP tray last-paper detection roller
Cross sectional view from A direction
Feed direction
Paper feed
After the paper pickup operation, the paper picked up from either the Tray 2 cassette or MP tray is then fed to
the fixing-and-delivery block.
1. The registration shutter corrects the skew-feeding of the paper that is picked up from the Tray 2
cassette or MP tray.
2. When the TOP sensor detects the leading edge of paper, the DC controller controls the rotational speed
of the pickup motor to align with the leading edge of toner image on the ITB.
3. The toner image on the ITB is transferred onto the paper, and the paper is fed to the fusing-and-
delivery block.
54 Chapter 1 Theory of operation ENWW
