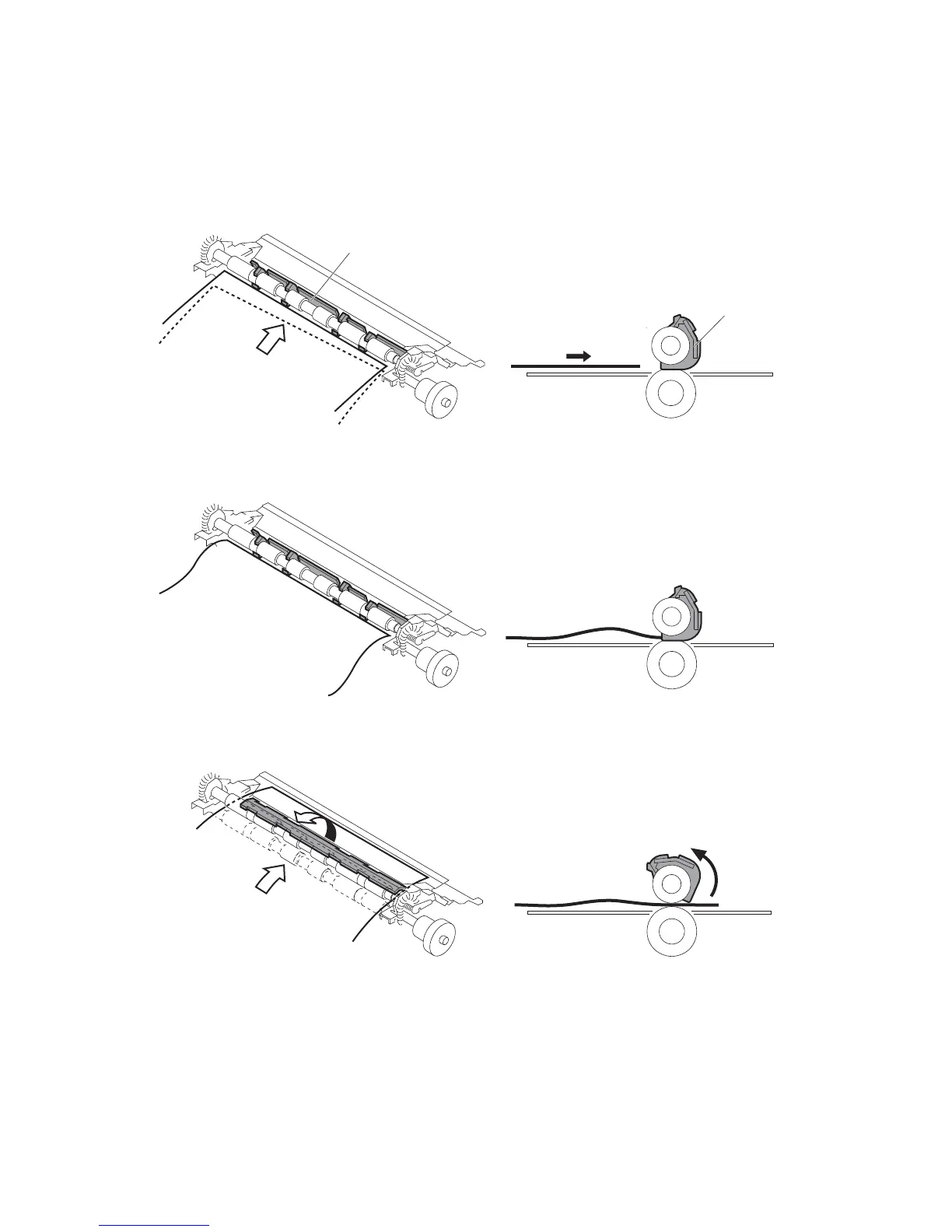

1. The leading edge of paper strikes the registration shutter and aligns.
2. As the feed rollers keep pushing the paper, the paper gets warped against the registration shutter.
3. The stiffness of paper pushes up the registration shutter and the realigned paper passes through
straightened.
Figure 1-41 Skew-feed prevention
Paper
Paper
Registration shutter
Registration shutter
56 Chapter 1 Theory of operation ENWW
