5. The duplex feed motor rotates.
6. The duplex feed roller feeds the paper.

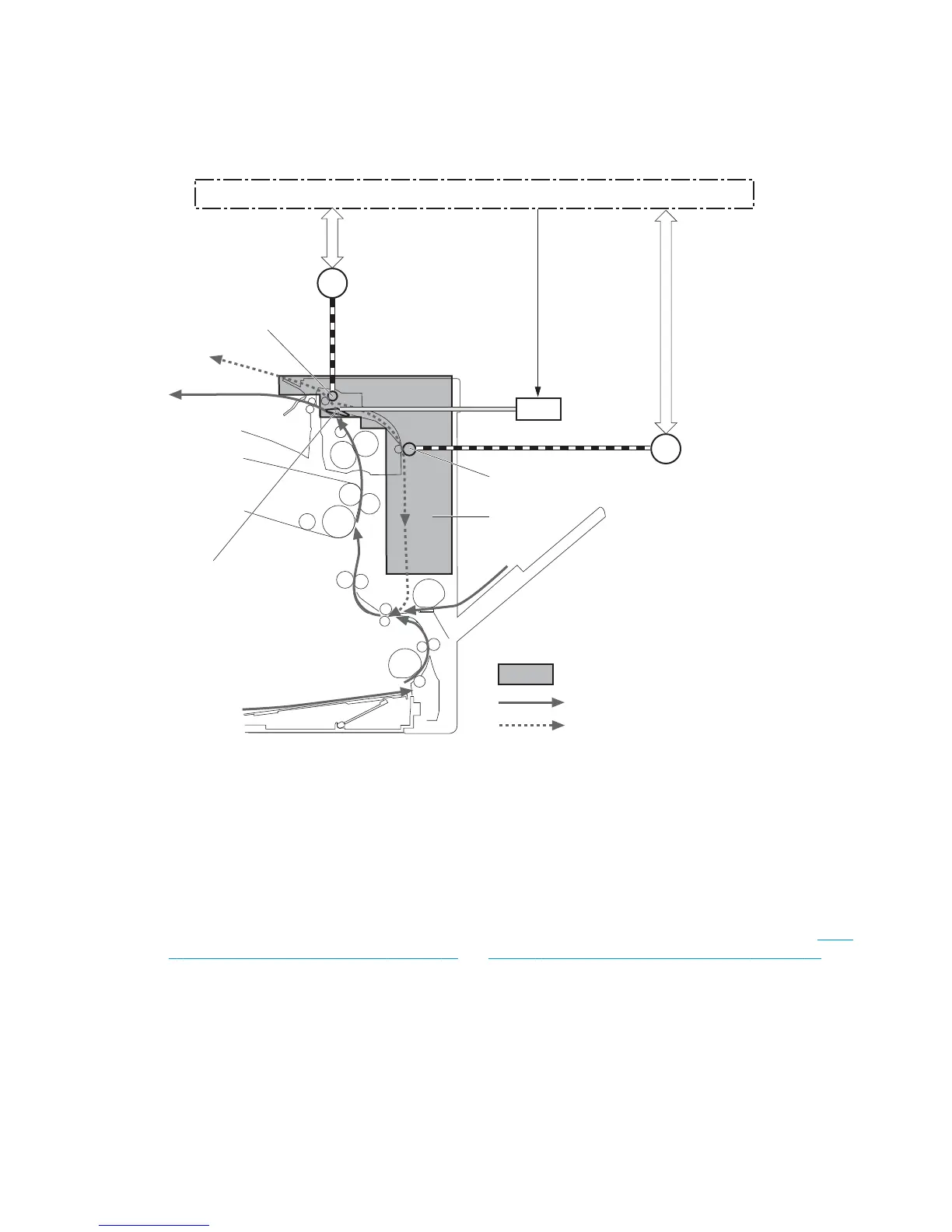

Figure 1-46 Duplex operation
DC controller
Duplex reverse solenoid
Duplex feed roller
Duplex ass’y
Simplex paper path
Duplex paper path (duplex model)
Duplex reverse roller
Duplex flapper
Only for the duplex model
SL3
M7
M8
Duplex feed motor
Duplex reverse motor
Duplex operation
The product prints two sides of paper with the following operation depending on the paper size.
●
One-sheet operation: Feeds one sheet of two-sided page in a duplex print operation
●
Two-sheet operation: Feeds two sheets of two-sided page in a duplex print operation
The duplex print operation is specified by the formatter.
The duplex print is performed only with the duplex printable paper size and specified print mode. See
Table
1-8 Paper sizes, duplex operation on page 64 and Table 1-9 Print modes, duplex operation on page 64.
ENWW Pickup, feed, and delivery system 63
