HP M750 series

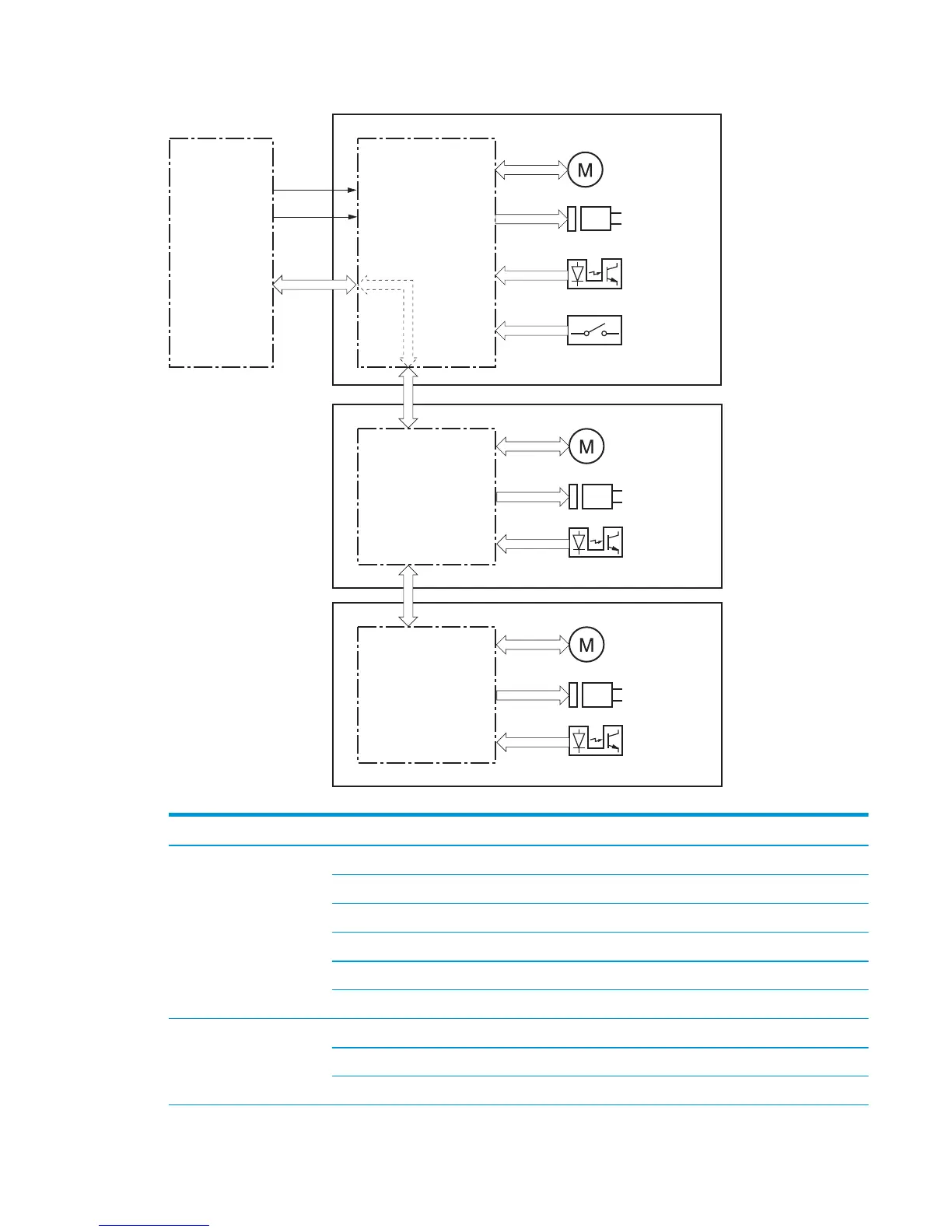

Figure 1-55 3X500-sheet paper deck block diagram
DC controller
Paper deck
controller 1
Motor
Solenoid
Photointerrupter
Switch
Paper deck cassette 1
+24V
+3.3V
Paper deck
controller 2
Paper deck
controller 3
Paper deck cassette 2
Paper deck cassette 3
Motor
Solenoid
Photointerrupter
Motor
Solenoid
Photointerrupter
Table 1-13 3X500-sheet paper deck
Component Description
Motor M1 Paper deck cassette 1 pickup motor
M2 Paper deck cassette 1 lifter motor
M81 Paper deck cassette 2 pickup motor
M82 Paper deck cassette 2 lifter motor
M91 Paper deck cassette 3 pickup motor
M92 Paper deck cassette 3 lifter motor
Solenoid SL1 Paper deck cassette 1 pickup solenoid
SL82 Paper deck cassette 2 pickup solenoid
SL92 Paper deck cassette 3 pickup solenoid
ENWW Optional 3X500-sheet paper deck 73
