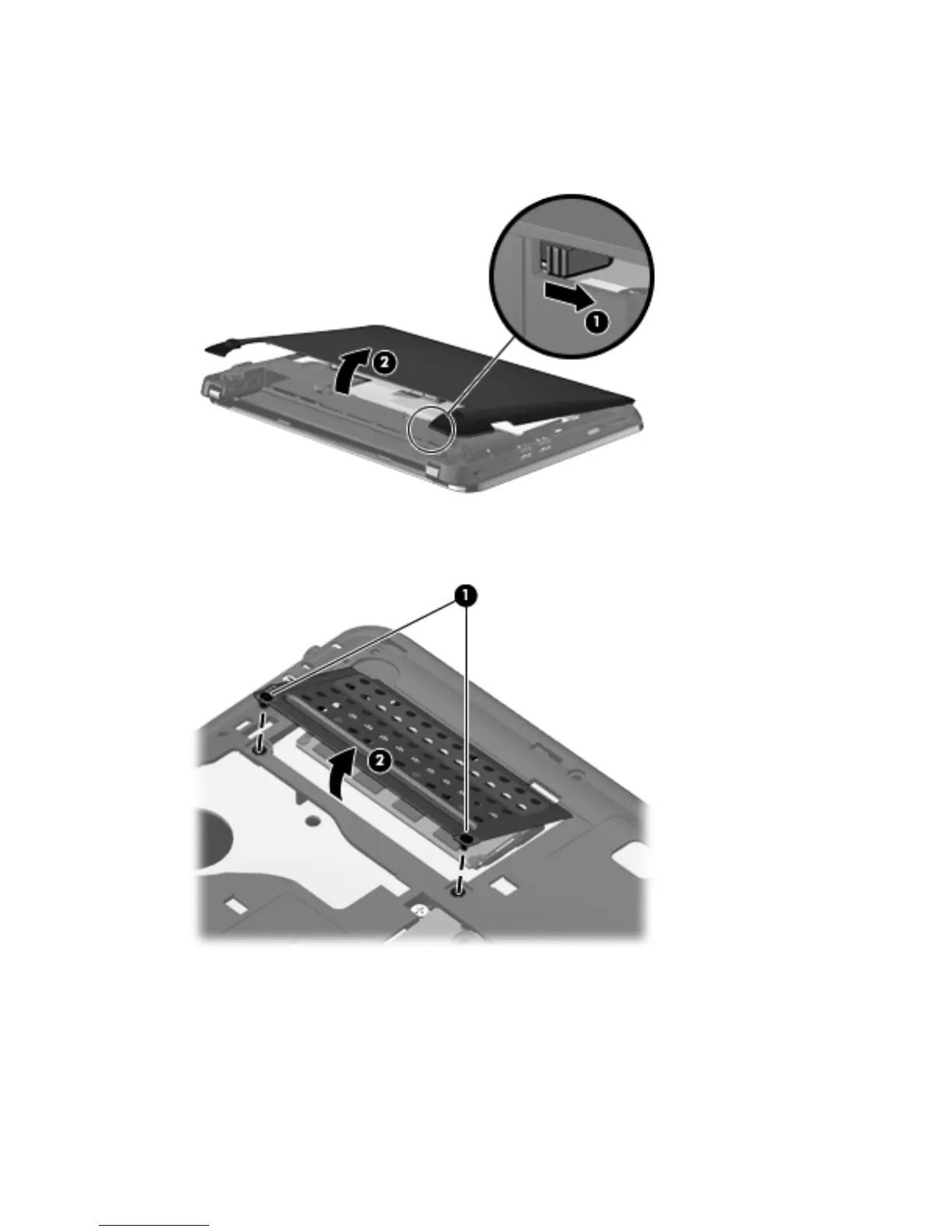

6. Remove the vanity cover:
a. Slide the inner release latch (1) to loosen the vanity cover.
b. Pull away the vanity cover (2).
7. Loosen the 2 memory bracket screws (1).
8. Remove the memory bracket (2).
9. If you are replacing a memory module, remove the existing memory module:
a. Pull away the retention clips (1) on each side of the memory module.
The memory module tilts up.
32 Chapter 6 Maintenance
