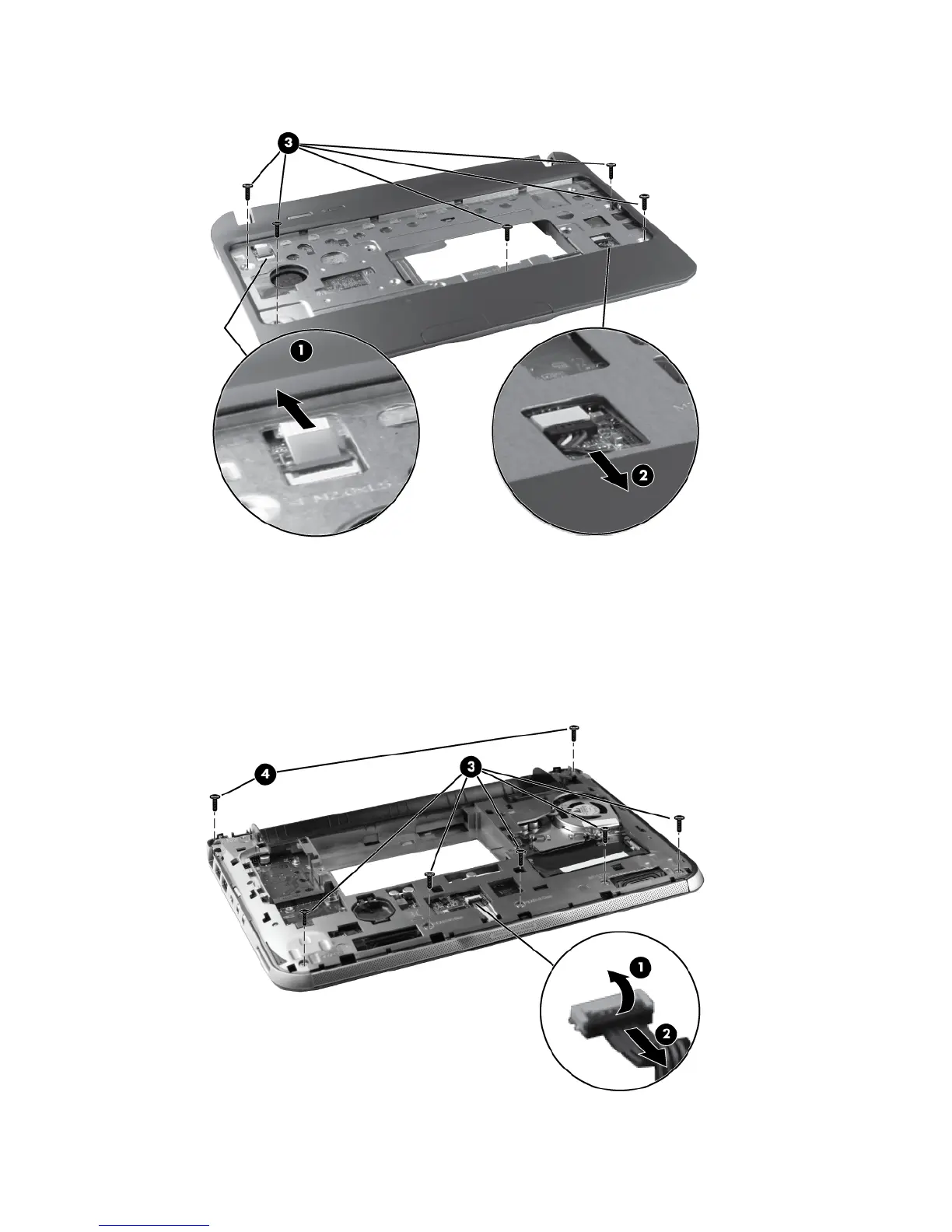

4. Remove the five Phillips PM2.0x5.0 screws (3) from the top cover .
5. Turn the computer upside down, with the front toward you.
6. Release the TouchPad ZIF connector (1) and disconnect the TouchPad cable (2). (The ZIF
cable is attached with double-sided adhesive.)
7. Remove the five Phillips PM2.0x5.0 screws (3) along the front edge of the base enclosure.
8. Remove the two Phillips PM2.0x5.0 screws (4) from underneath the rear corner plates, one in
each corner.
Component replacement procedures 55
