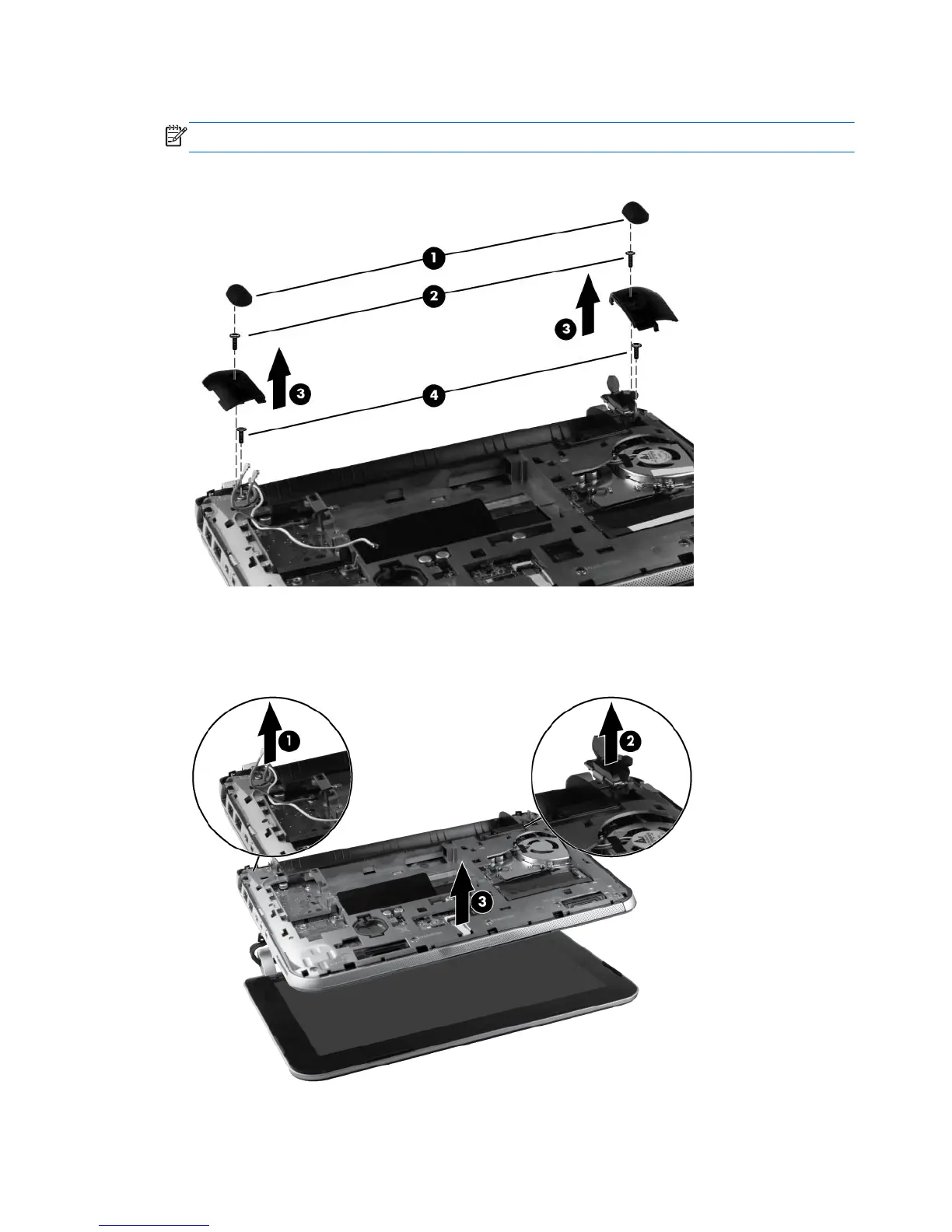

5. Remove the plastic rear corner covers (3).
NOTE: The rear corner covers are included in the Plastics Kit, spare part number 652308-001.
6. Remove the two Phillips PM2.0x5.0 screws (4), one beneath each rear corner cover.
7. Remove the WLAN antenna cables (1) from the routing channel.
8. Disconnect the display panel cable (2) from the system board.
9. Carefully lift the base enclosure away from the display assembly (3).
Reverse this procedure to reassemble and install the display assembly.
60 Chapter 4 Removal and replacement procedures
