6. If it is necessary to replace the display panel/webcam cable, perform the following steps:

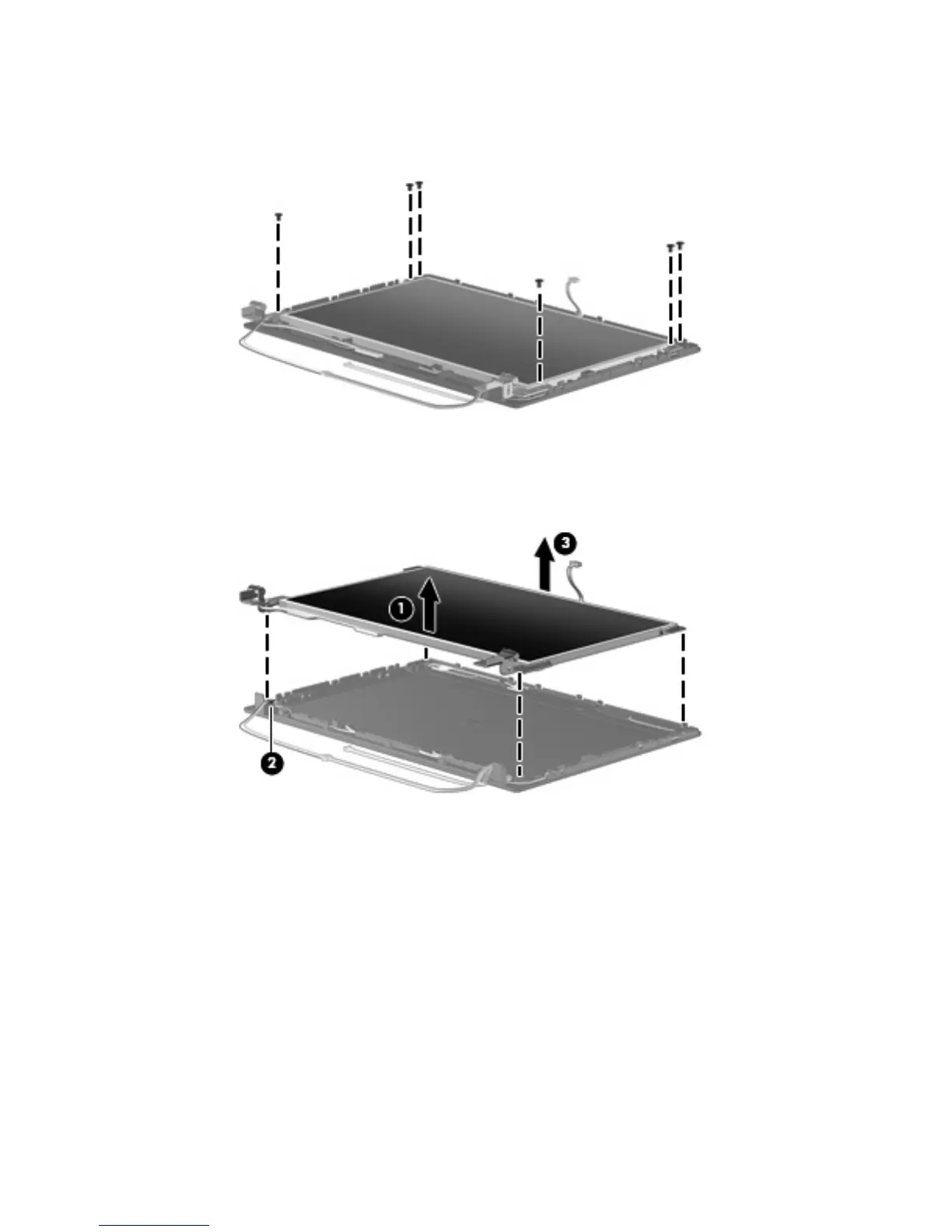

a. Remove the 6 Phillips PM2.5×5.0 screws that secure the display panel to the display
enclosure.
b. Lift the display panel up from the display enclosure (1).
c. Disengage the display panel cable (2) from the left hinge clip.
d. Remove the display panel (3) from the display enclosure.
e. Turn the display panel over, and peel back the Mylar protection (1) on the back of the display
panel.
Component replacement procedures 55
