9. If it is necessary to replace the wireless antenna transceivers and cables, perform the following
steps:

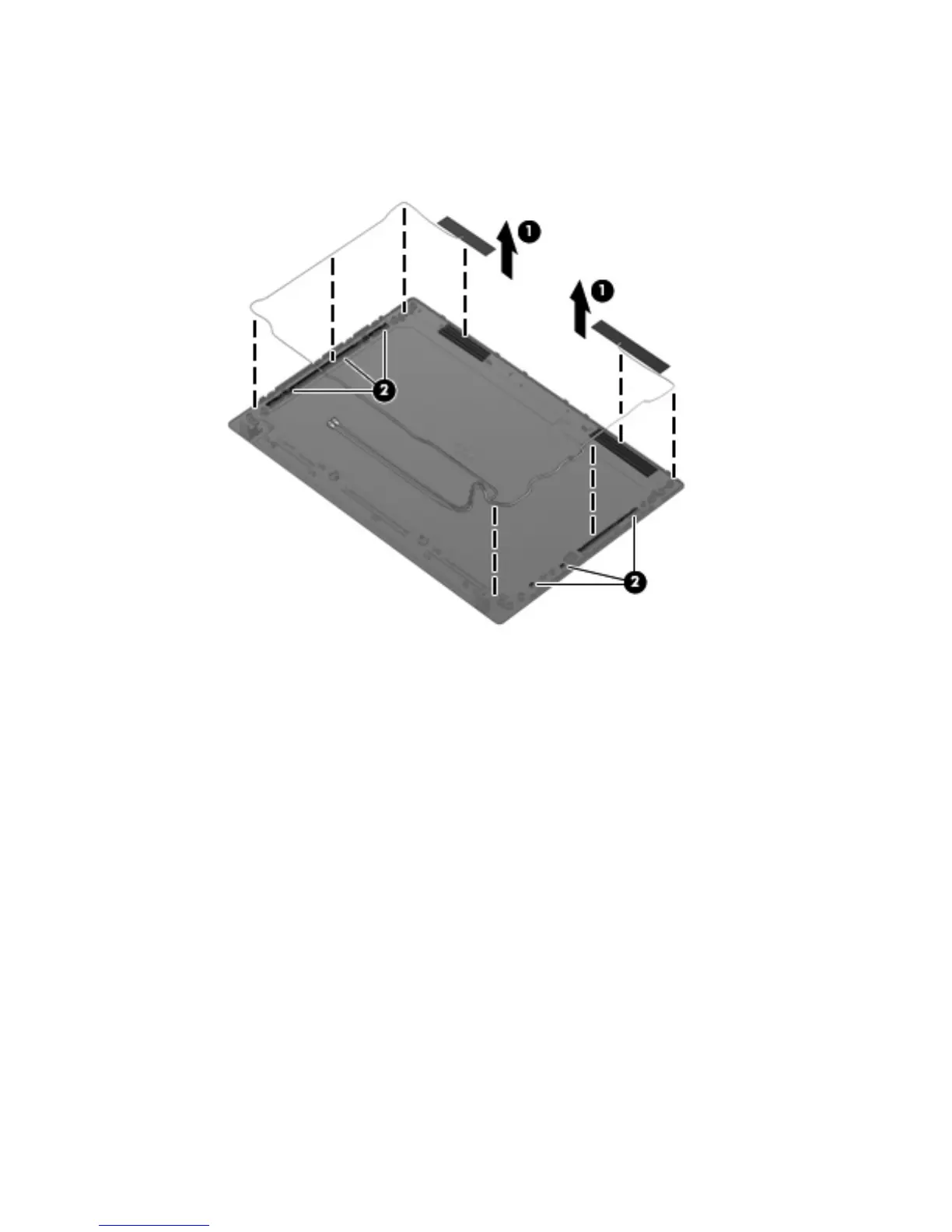

a. Detach the cables from the adhesive (1), and then route them through the clips (2) that secure
them to the display enclosure.
b. Remove the wireless antenna transceivers and cables.
Reverse this procedure to reassemble and install the display assembly.
58 Chapter 4 Removal and replacement procedures
