b.

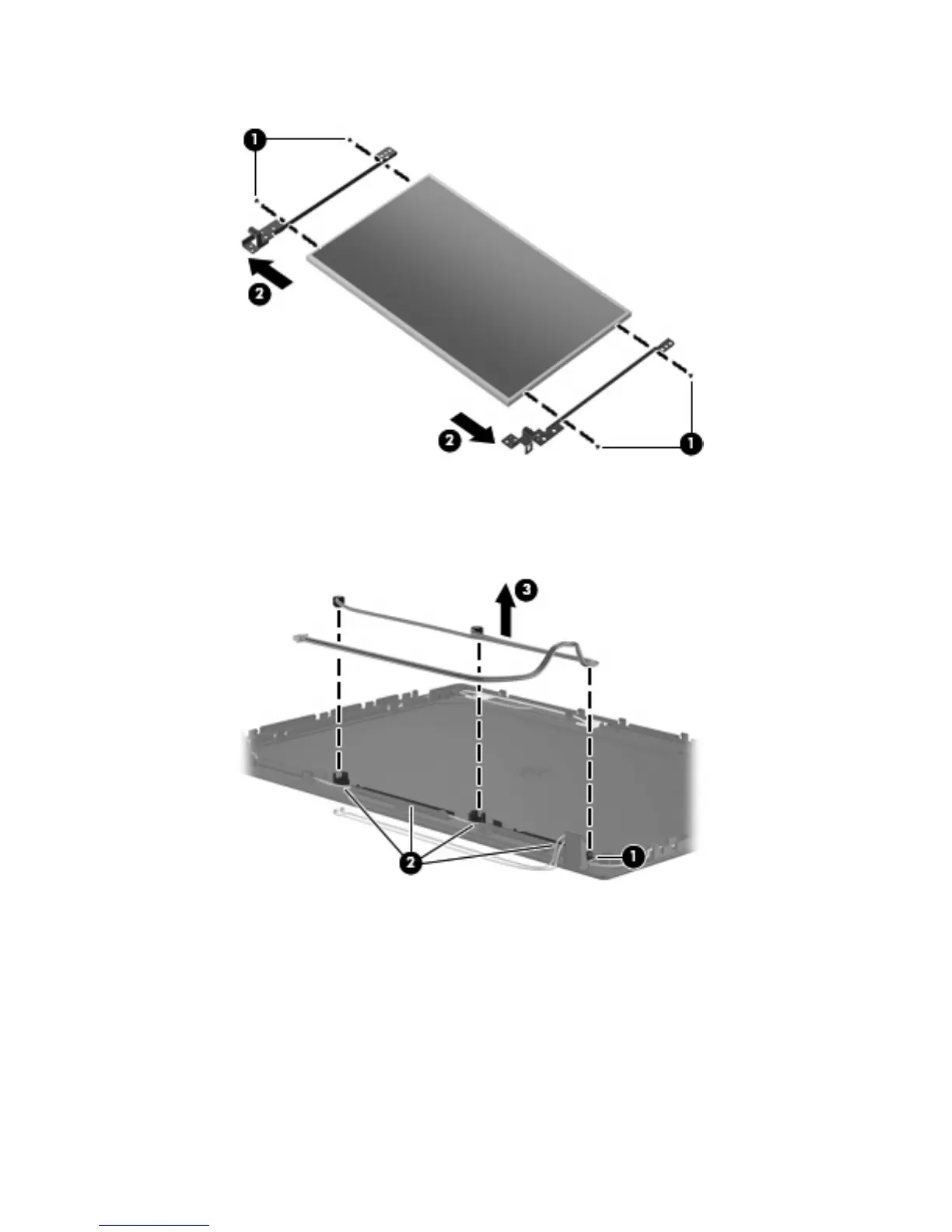

Remove the hinges
(2)
.
8.
If it is necessary to replace the microphone recei
ver, perform the following steps:
a.
Release the microphone rece
iver from the clip
(1)
that secures it
to the
display en
closure.
b.
Pull the receiver through
the tabs
(2)
, and remove
the micropho
ne receiver
(3)
.
Component replacement p
rocedures
57
64
66
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 External Component Identification
12
Top Components
12
Touchpad
12
Lights
13
Buttons
14
Keys
15
Front Components
16
Right-Side Components
17
Left-Side Components
18
Display Components
19
Bottom Components
20
Wireless Antennas
21
3 Illustrated Parts Catalog
22
Service Tag
22
Device Major Components
23
Display Assembly Components
27
Miscellaneous Parts
28
Sequential Part Number Listing
29
4 Removal and Replacement Procedures
33
Preliminary Replacement Requirements
33
Tools Required
33
Service Considerations
33
Cables and Connectors
33
Plastic Parts
33
Drive Handling
34
Grounding Guidelines
35
Electrostatic Discharge Damage
35
Packaging and Transporting Guidelines
36
Workstation Guidelines
36
Equipment Guidelines
37
Component Replacement Procedures
38
Service Tag
38
Device Feet
39
Battery
40
Sim
41
Memory Module
42
Keyboard
44
Hard Drive
47
WLAN Module
49
SIM Module
51
Top Cover
52
Speaker
55
WWAN Module
56
Bluetooth Module
58
Power Button Board
59
Display Assembly
60
System Board
67
RTC Battery
69
Fan and Heat Sink Assembly
71
5 Computer Setup
74
Starting Computer Setup
74
Using Computer Setup
75
Navigating and Selecting in Computer Setup
75
Restoring Factory Settings in Computer Setup
75
Computer Setup Menus
76
File Menu
76
Security Menu
77
Diagnostics Menu
77
System Configuration Menu
78
6 Specifications
80
Device Specifications
80
10.1-Inch, Antiglare Display Specifications
81
Hard Drive Specifications
82
System DMA Specifications
83
System Interrupt Specifications
84
System I/O Address Specifications
85
System Memory Map Specifications
87
7 Screw Listing
88
Phillips PM2.0×2.0 Screw
88
Phillips PM2.0×2.0 Broadhead Screw
90
Phillips PM2.0×3.0 Screw
91
Phillips PM2.0×4.0 Screw
94
Phillips PM2.0×6.0 Screw
95
Phillips PM2.0×7.0 Screw
96
Phillips PM2.0×7.0 Captive Screw
97
Phillips PM2.5×5.0 Screw
98
Torx T8M2.5×5.0 Screw
99
Phillips PM2.5×6.0 Screw
100
Phillips PM2.5×11.0 Captive Screw
101
8 Backup and Recovery
102
SUSE Linux Recovery
103
Windows Vista Backup and Recovery
104
Backing up
104
Recovering
105
Windows XP Backup and Recovery
107
Backing up
107
Recovering
107
9 Connector Pin Assignments
109
Audio-In (Microphone)
109
Audio-Out (Headphone)
110
External Monitor
111
Network)
112
Universal Serial Bus
113
10 Power Cord Set Requirements
114
Requirements for All Countries and Regions
114
Requirements for Specific Countries and Regions
115
11 Recycling
116
Battery
116
Display
116
Index
122
