Removal and replacement procedures 31
1. Power down the server (on page 26).

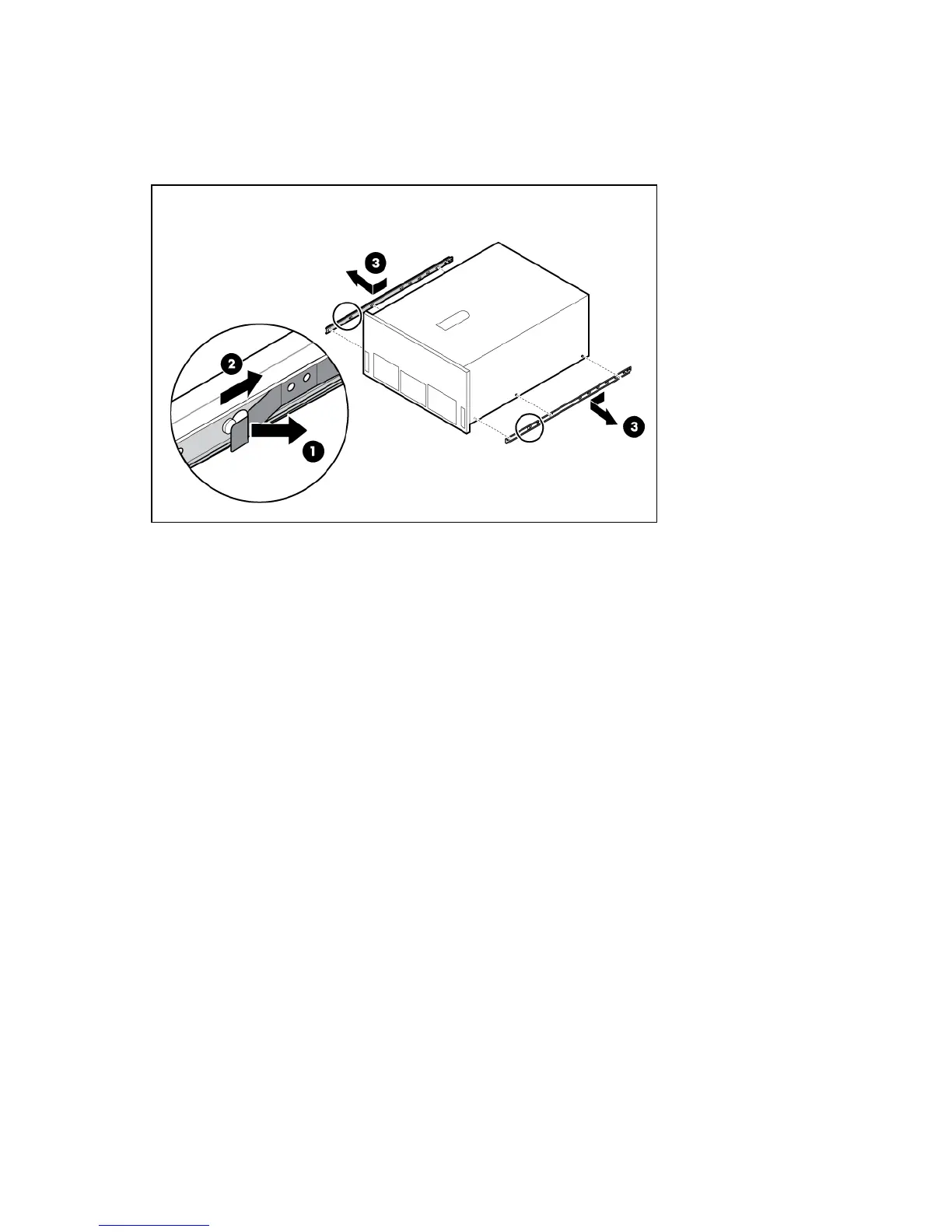

2. Remove the server from the rack (on page 27).
3. Use a flat-head screwdriver to lift the spring tab.
4. Slide the rail forward and remove it from the server.
5. Repeat the steps above to remove the other rail.
To replace the component, reverse the removal procedure.
Large redundant fan air baffle
To remove the component:
1. Power down the server (on page 26).
2. Do one of the following:
o Open or remove the tower bezel, as needed ("Front bezel" on page 28).
o Extend the server from the rack (on page 25).
3. Remove the access panel ("Access panel" on page 29).
