HP mt42 User Manual

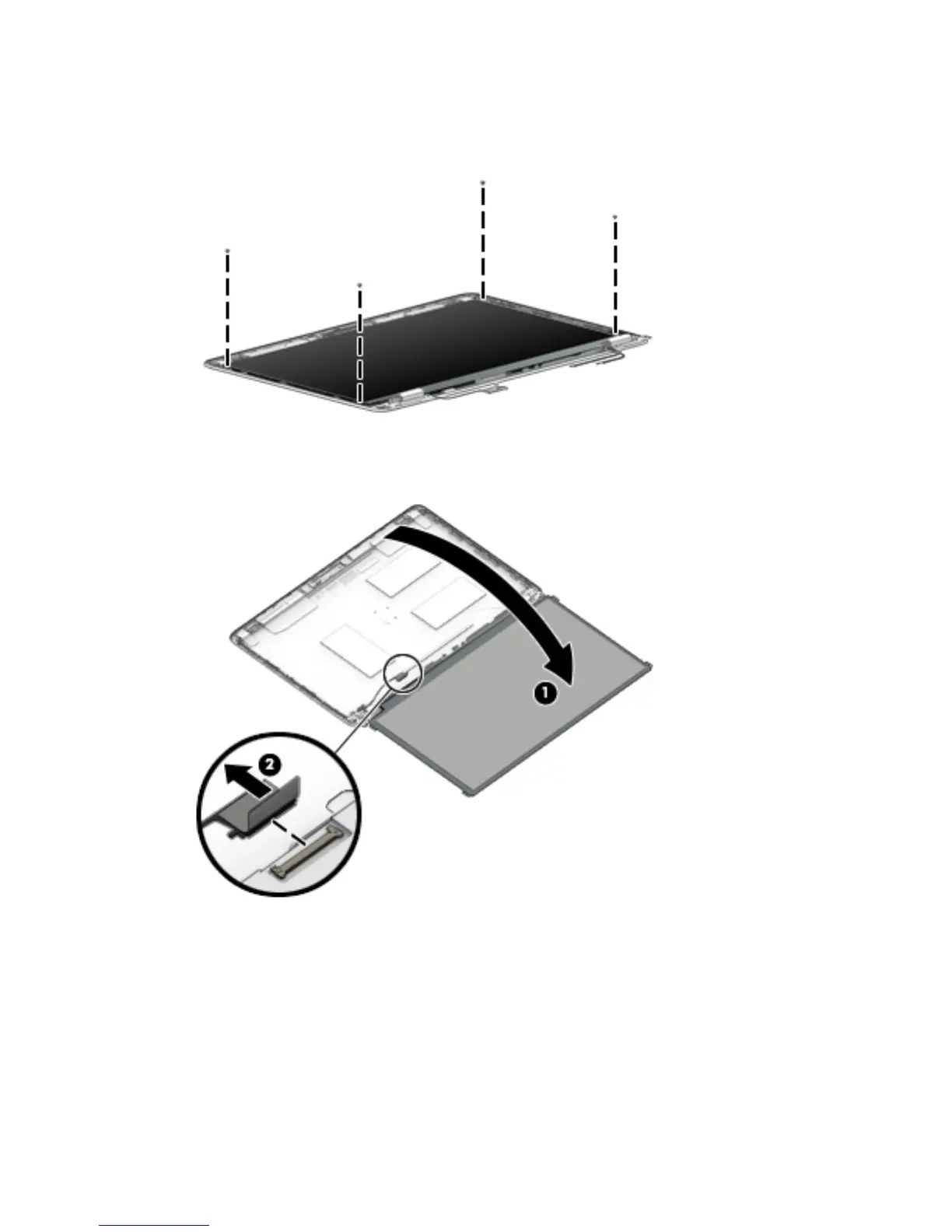

9. If it is necessary to remove the display panel from the enclosure, remove the 4 Phillips PM2.0×3.0
screws that secure the panel to the display enclosure, and then lift the top of the panel upward.
The raw display panel is available using spare part number 823951-001.
10. Rotate the display panel all the way over (1), disconnect the display cable from the rear of the panel (2),
and then remove the display panel from the enclosure.
11. If it is necessary to replace the display hinges, remove the 1 Phillips PM2.0×3.0 screw (1) that secure the
hinge covers to the display enclosure, and then remove the hinge covers (2).
54 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

HP mt42 Specifications

General

Graphics	Intel HD Graphics 520
Display	14-inch, 1920 x 1080 (Full HD)
Storage	512GB SSD
Operating System	Windows 10 Pro
Weight	1.5 kg (3.31 lbs)
Battery	3-cell, 48 Wh Li-ion
Ports	USB 3.0, USB-C, VGA, Ethernet, Headphone/microphone combo
Wireless	Wi-Fi 802.11ac, Bluetooth 4.2
Processor	Intel Core i7-6600U
Memory	8GB / 16GB DDR4
