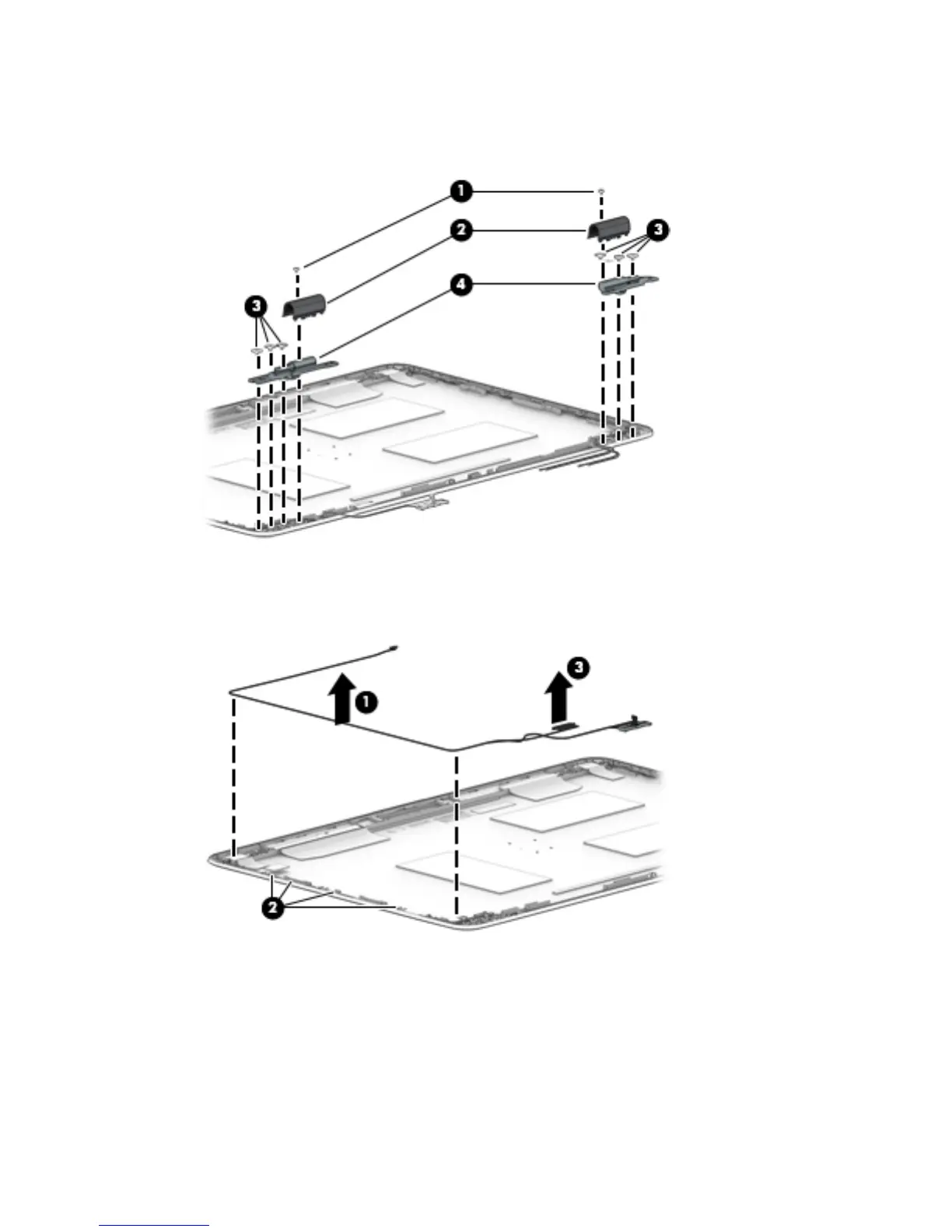

12. Remove the 6 Phillips PM2.5x2.5 screws that secure the hinges to the display enclosure (3), and then
remove the display hinges from the display enclosure (4).
Display hinges are available in the Display Hinge Kit using spare part number 821166-001.
13. If it is necessary to replace the display/webcam cable, lift the display/webcam cable assembly (1) from
the routing (2) and disconnect the cable if needed (3).
The display cable is available in the Cable Kit using spare part number 821174-001.
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures 55
