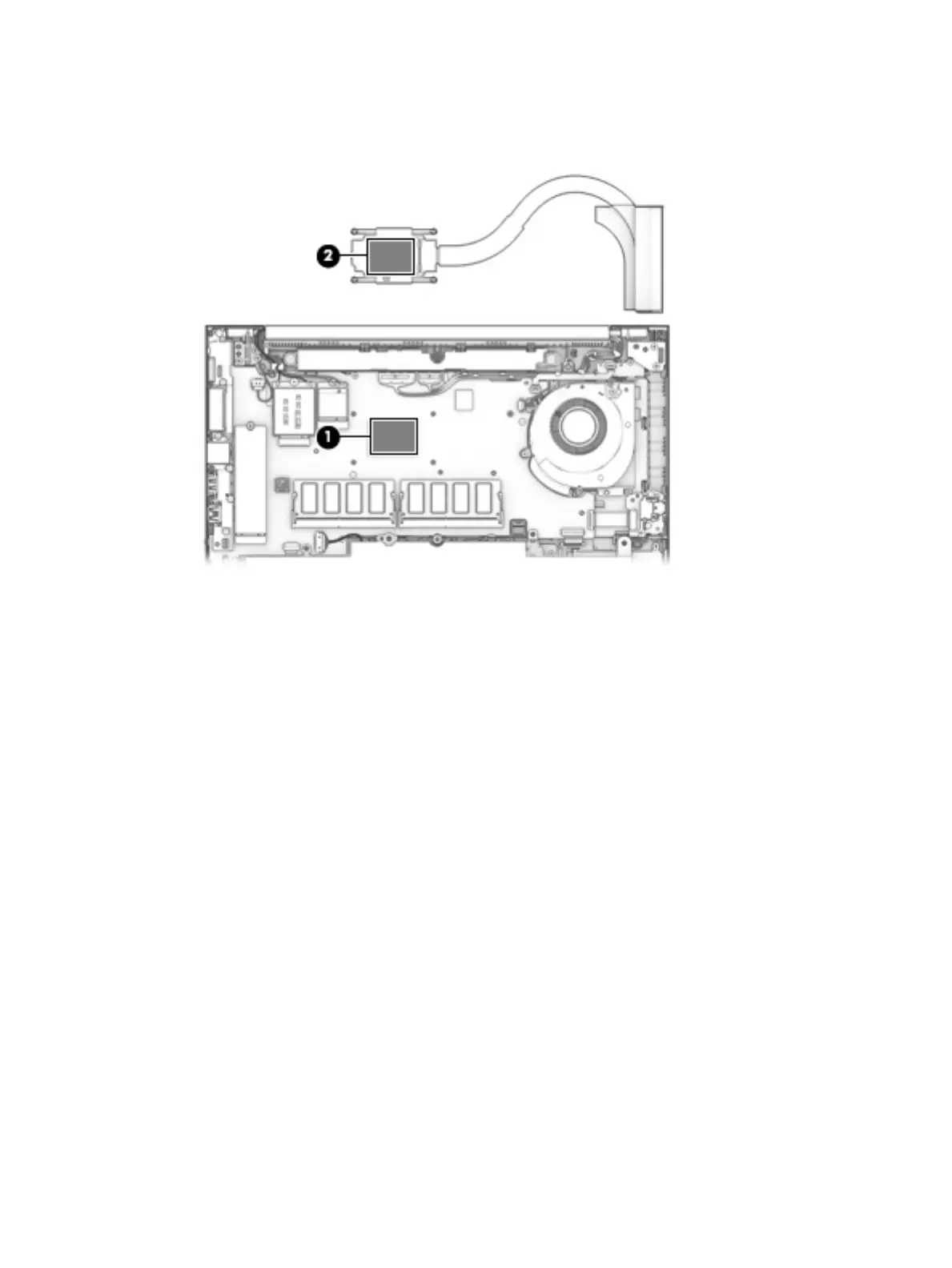

2. Thoroughly clean the thermal material from the surfaces of the system board component (1) and the
heat sink (2) each time the heat sink is removed. Replacement thermal material is included with the heat
sink and system board spare part kits.
Reverse this procedure to install the heat sink.
Component replacement procedures 47

HP mt45 Specifications

General

Battery	HP Long Life 3-cell, 50 Wh Li-ion
Processor	AMD Ryzen 3 PRO 3300U
Graphics	AMD Radeon Vega Graphics
Display	14" diagonal FHD IPS anti-glare WLED-backlit (1920 x 1080)
Memory	8 GB DDR4-2400 SDRAM
Ports	1 USB 3.1 Type-C, 2 USB 3.1 Gen 1, 1 HDMI 2.0, 1 RJ-45, 1 headphone/microphone combo
Wireless	Intel Dual Band Wireless-AC 9260 802.11a/b/g/n/ac (2x2) Wi-Fi and Bluetooth 5 Combo
Operating System	Windows 10 IoT Enterprise
