RJ-45 board with bracket
Table 6-5 RJ-45 board with bracket description and part number
Description Spare part number
RJ-45 board with bracket L14386-001
Before removing the RJ-45 board and bracket, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 32).
2. Remove the bottom cover (see Bottom cover on page 32).
3. Disconnect the battery cable from the system board (see Battery on page 44).
Remove the RJ-45 board and bracket:

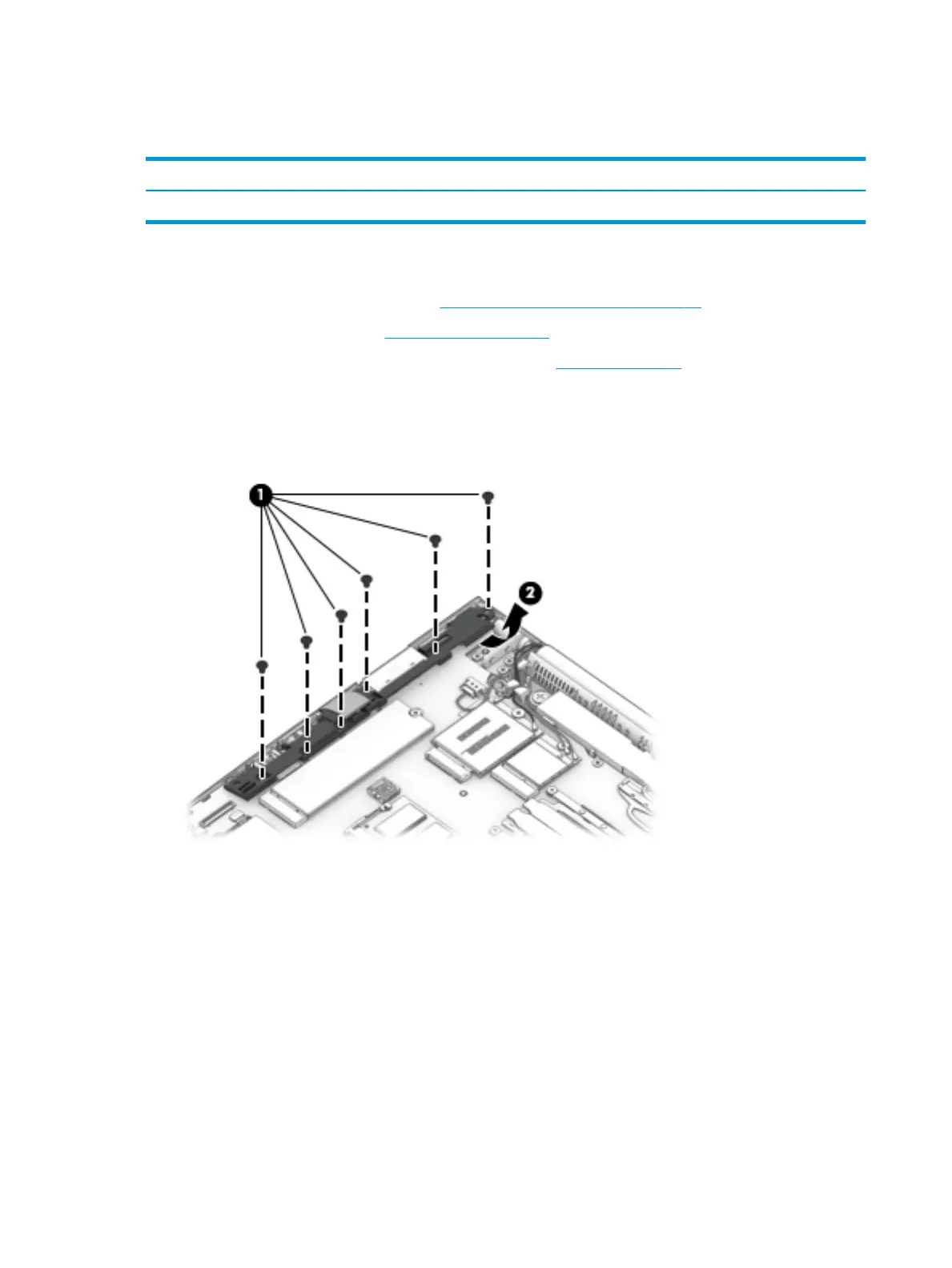

1. Remove the six Phillips M2.5 × 5.0 screws (1) that secure the assembly to the computer.
2. Rotate the assembly out of the computer (2).
Reverse this procedure to install the RJ-45 assembly.
