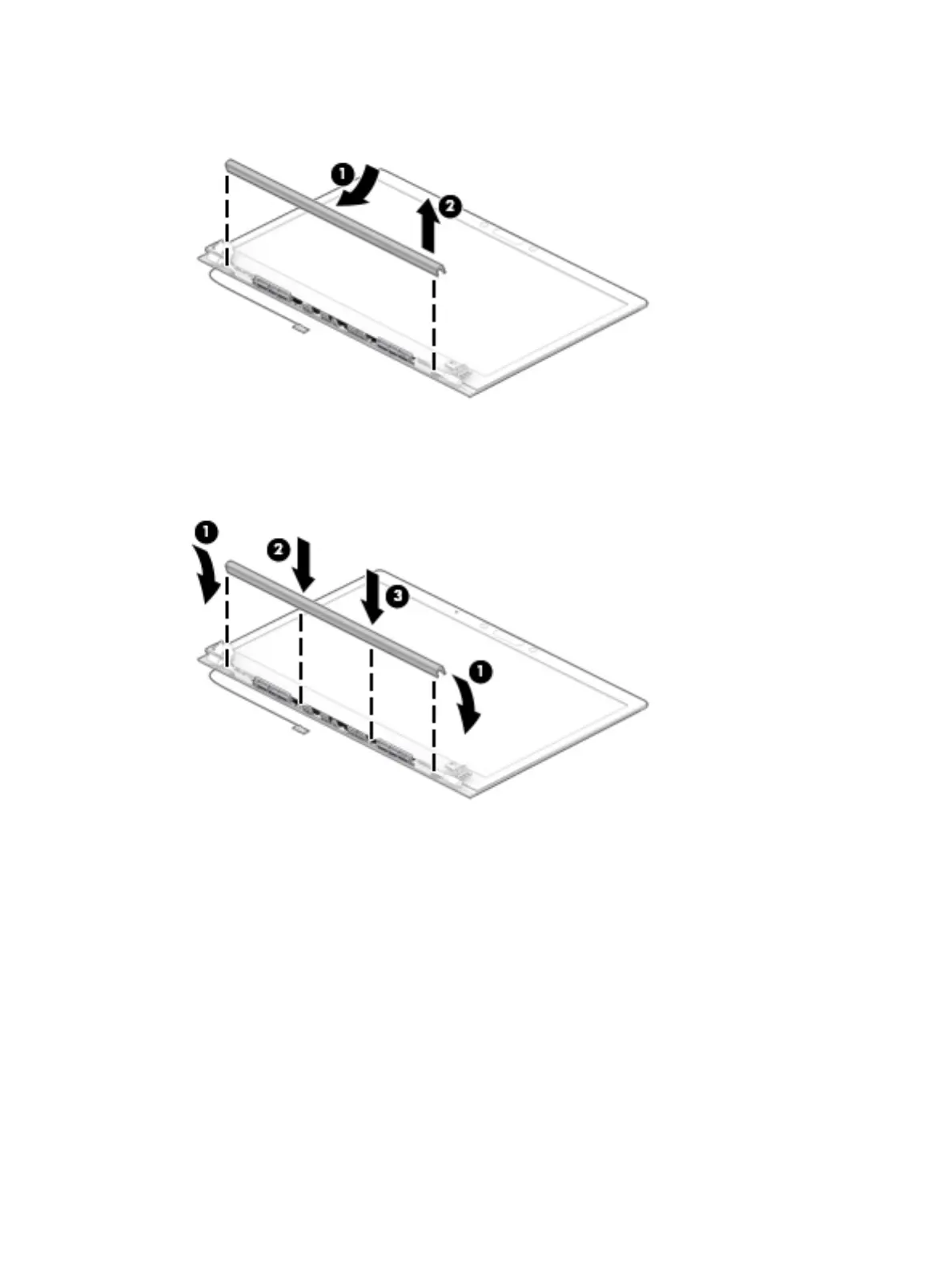

8. To remove the display hinge cover, rotate top of hinge cover away from display enclosure to release the

tabs (1), and then pull the cover o the enclosure (2).

The display hinge cover is available in the Hinge Kit as spare part number L14376-001.

When installing the hinge cover, make sure all cables are routed correctly under the hinge cover and the

hooks on the end of the cover are aligned correctly with the snaps on the bottom of the display (1).

Press the left (2), and then right (3) middle sections of the hinge cover until it snaps into place.

9. To remove the display bezel, ex the top (1) of the bezel, the inside edges of the left and right sides (2),

and then the bottom (3) of the bezel until it releases from the display enclosure.

66 Chapter 6 Removal and replacement procedures for authorized service provider parts

Questions and Answers:

Need help?

Do you have a question about the HP mt45 and is the answer not in the manual?

HP mt45 Specifications

General

Battery	HP Long Life 3-cell, 50 Wh Li-ion
Processor	AMD Ryzen 3 PRO 3300U
Graphics	AMD Radeon Vega Graphics
Display	14" diagonal FHD IPS anti-glare WLED-backlit (1920 x 1080)
Memory	8 GB DDR4-2400 SDRAM
Ports	1 USB 3.1 Type-C, 2 USB 3.1 Gen 1, 1 HDMI 2.0, 1 RJ-45, 1 headphone/microphone combo
Wireless	Intel Dual Band Wireless-AC 9260 802.11a/b/g/n/ac (2x2) Wi-Fi and Bluetooth 5 Combo
Operating System	Windows 10 IoT Enterprise
