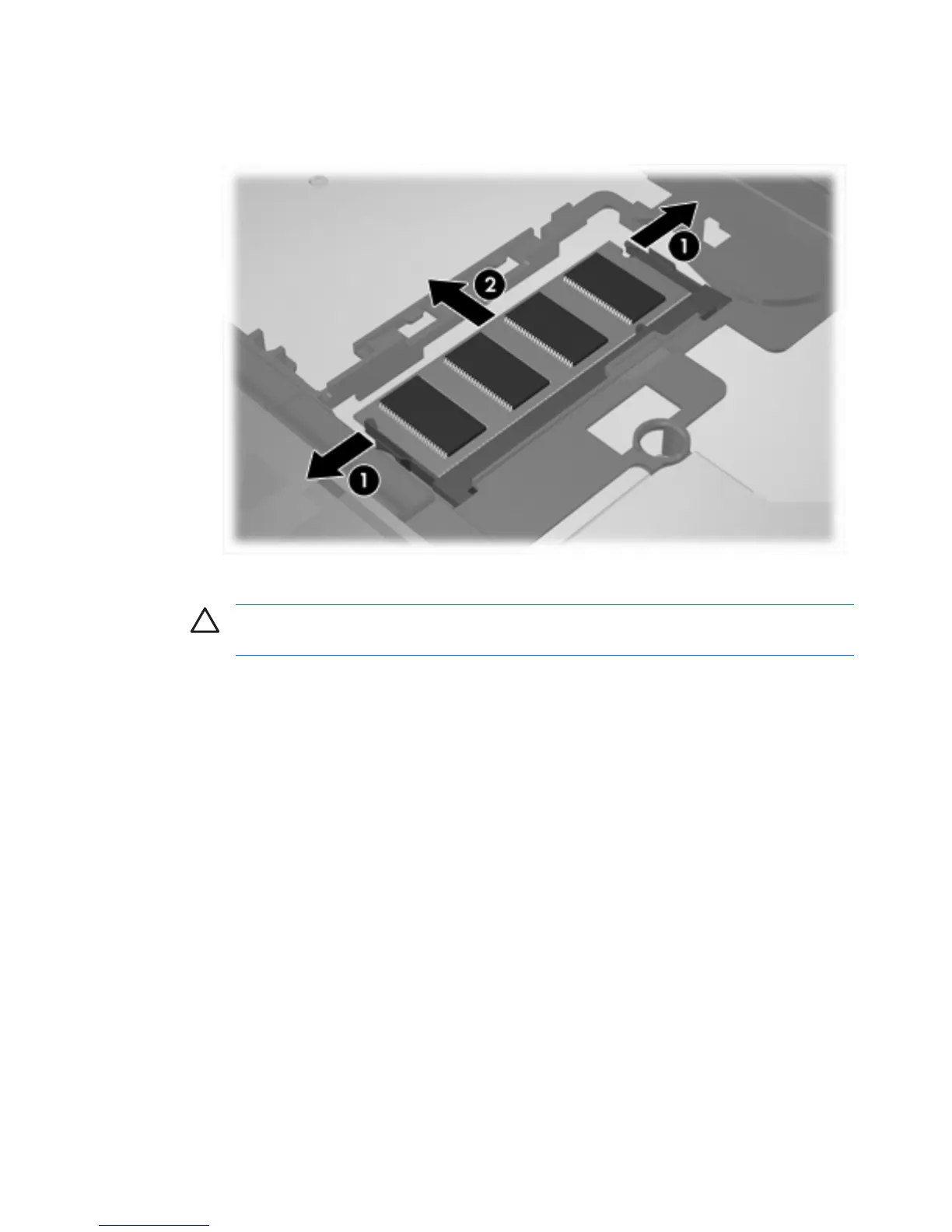

b. Grasp the edge of the memory module (2), and gently pull the module out of the memory
module slot. (To protect a memory module after removal, place it in an electrostatic-safe
container.)
12. To insert a memory module:
CAUTION To prevent damage to the memory module, be sure that you do not bend the
memory module.
a. Align the notched edge (1) of the memory module with the tab in the memory module slot.
b. With the memory module at a 45-degree angle from the surface of the memory module
compartment, press the module (2) into the memory module slot until it is seated.
8 Chapter 1 Adding or replacing memory modules ENWW
