1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the bottom cover (Bottom cover on page 31).
3. Remove the solid-state drives (Solid-state drive on page 32).
4. Remove the battery (see Battery on page 37).
5. Remove the fans (see Fans on page 45).
6. Remove the system board (see System board on page 48).
Remove the display assembly:

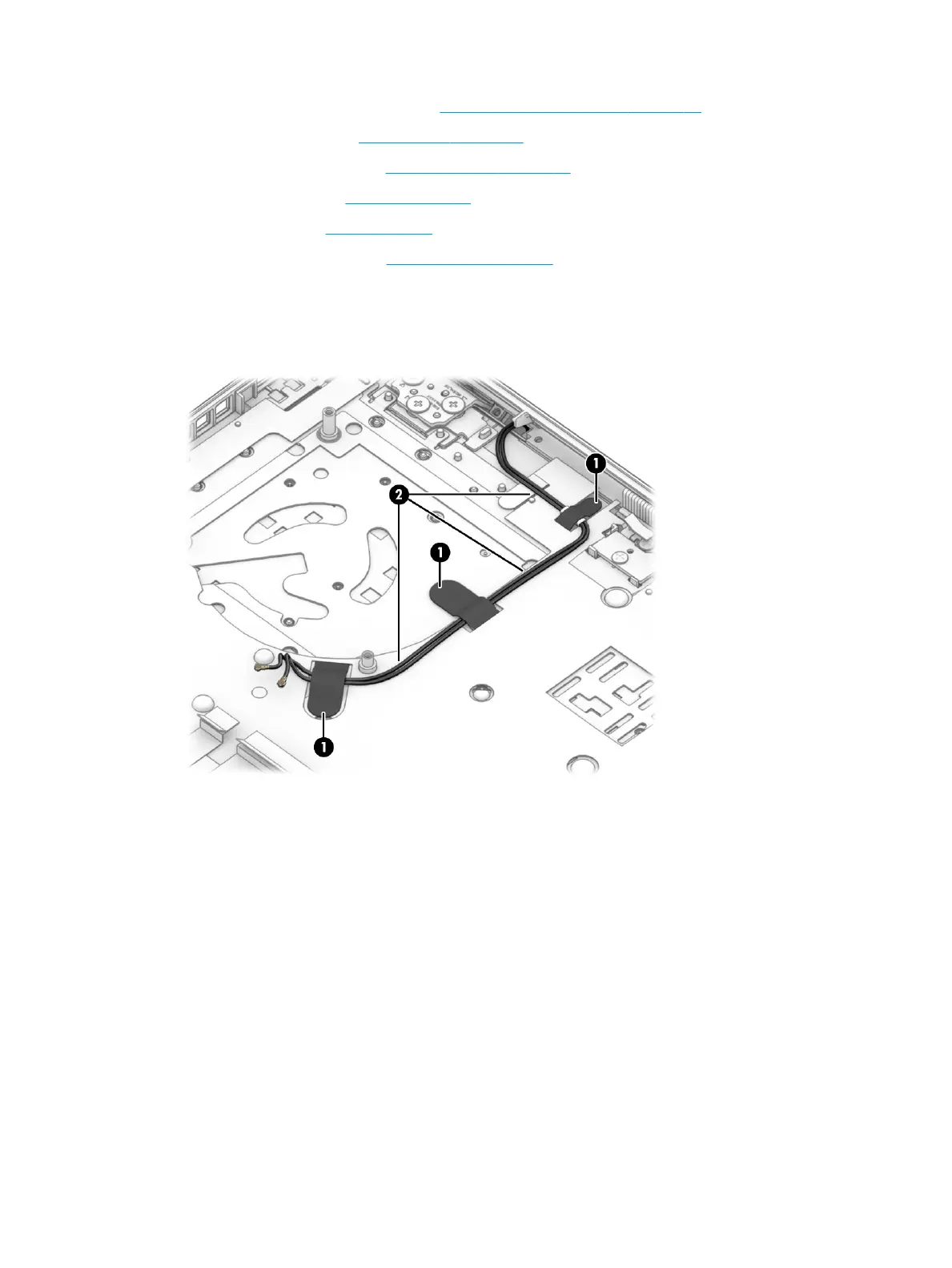

1. Lift the three pieces of tape that secure the antenna cables (1).
2. Remove the antenna cables from their routing path in the computer (2).
3. Remove the six Phillips M2.5 × 3.5 screws (1) that secure the display to the computer.
54 Chapter 6 Removal and replacement procedures for authorized service provider parts
