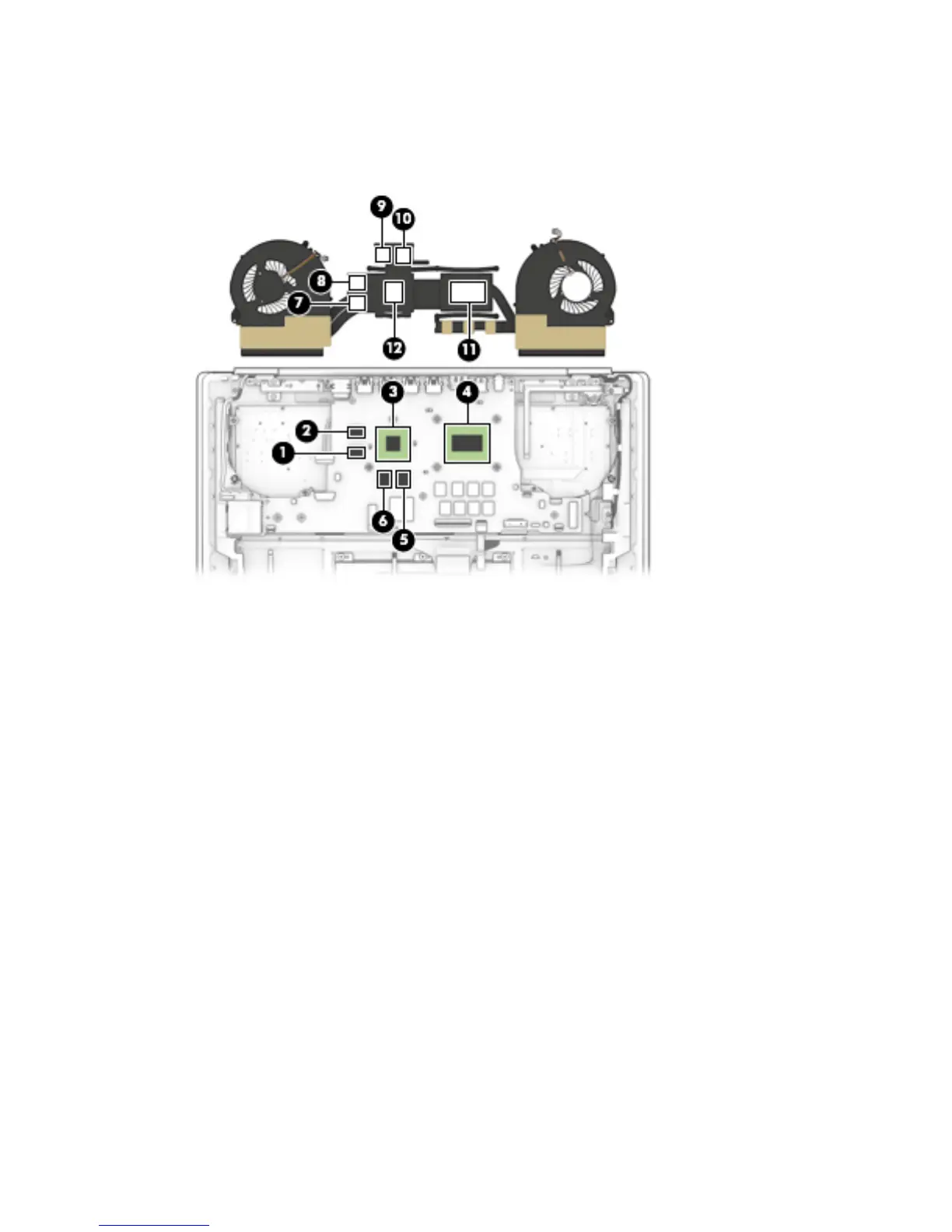

5. Use the following image to determine where thermal material must be installed on the heat sink and
system board.
(1)-(6) show locations on the system board that require thermal material. (7)-(12) show locations on
the heat sink that require thermal material.
Reverse this procedure to install the heat sink and fans.
