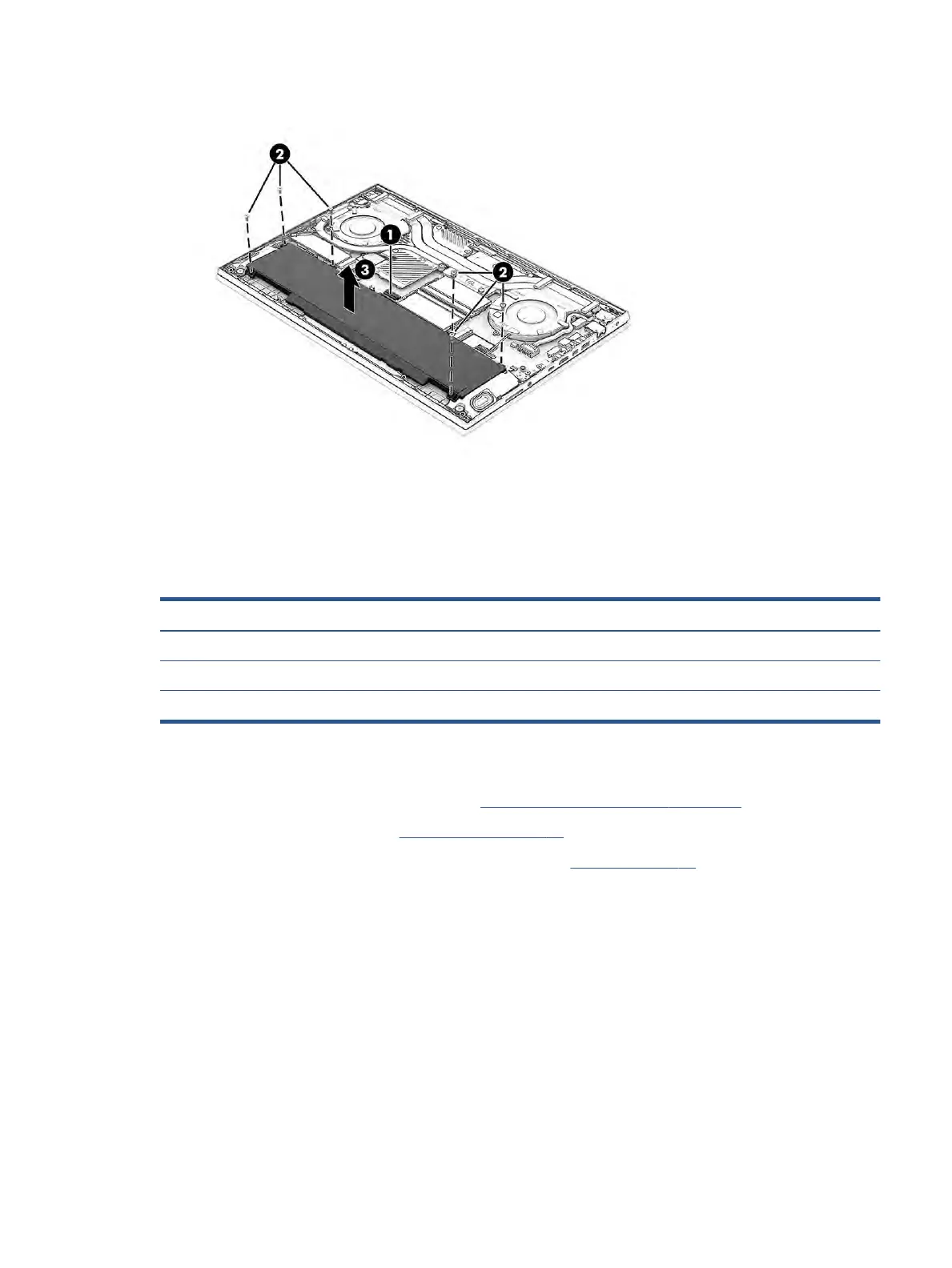

3. Remove the battery from the computer (3).
To replace the battery, reverse the removal procedures.
Solid-state drive
To remove the solid-state drive, use this procedure and illustration.
Table 5-3 Solid-state drive descriptions and part numbers
Description Spare part number
1 TB, PCIe, TLC L85348-001
512 GB, PCIe, TLC L85360-001
Thermal pad M57181-001
Before removing the solid-state drive, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 30).
2. Remove the bottom cover (see Bottom cover on page 30).
3. Disconnect the battery cable from the system board (see Battery on page 31).
Remove the solid-state drive:
1. Remove the Phillips M2.0 × 2.5 screw (1) that secures the drive to the computer.
Component replacement procedures 33
