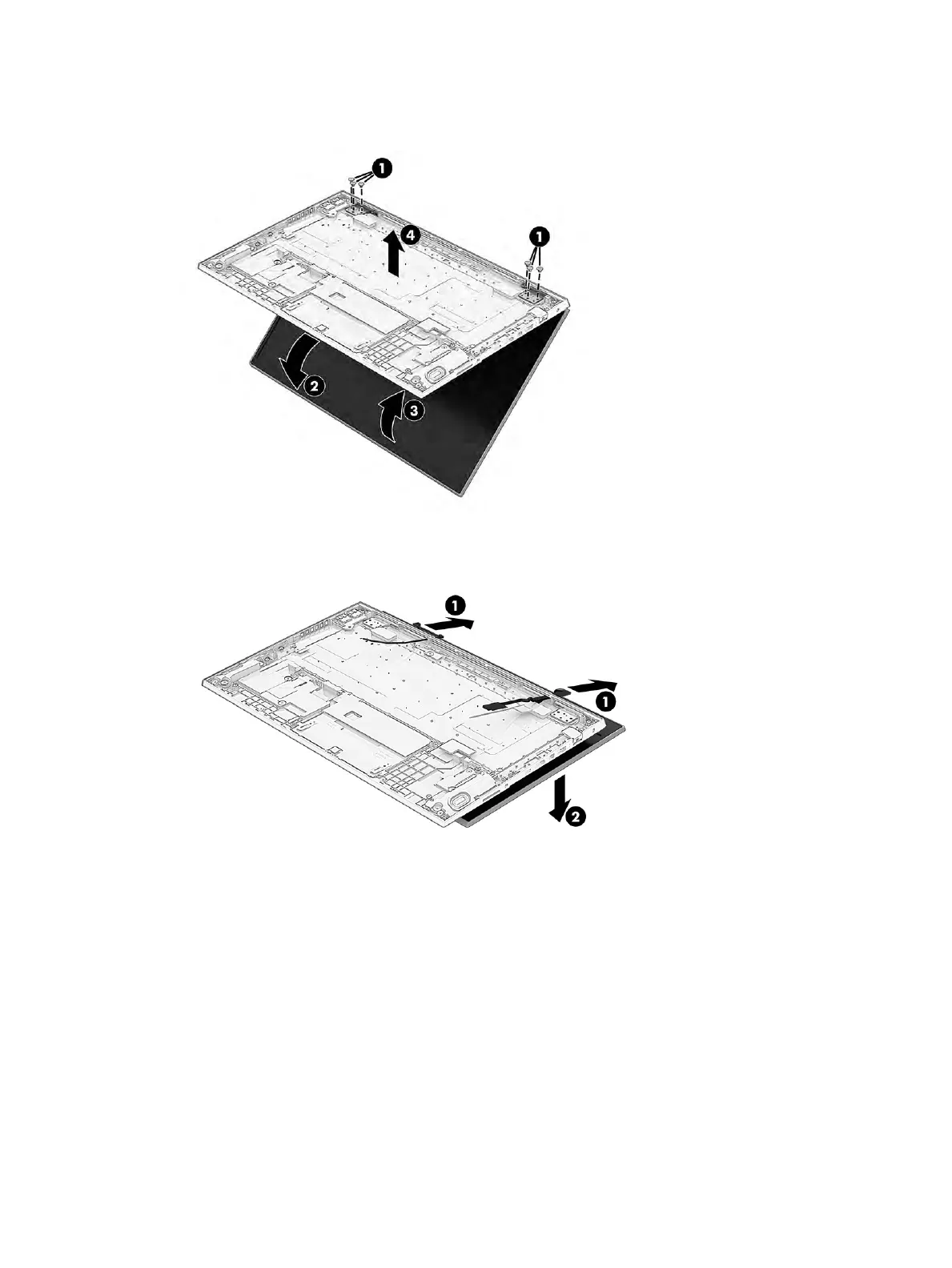

4. Separate the display from the computer (4). You must continue with the next step to completely remove
the display assembly.
5. While pulling the display cable (1) and WLAN antenna cables (1) through the holes in the computer, pull
display away from computer (2).
6. If you need to remove the display bezel:
a. Release the top, left, and right edges of the display bezel (1) from the display assembly.
b. Run a tool along the bottom edge of the bezel to release it from the display assembly (2).
c. Remove the display bezel (3) from the display assembly.
Display adhesive is available in the Adhesive Kit as spare part number M57184-001.
The bezel is available as spare part number M57174-001.
54 Chapter 5 Removal and replacement procedures for authorized service provider parts
