Rev
erse this procedur
e to instal
l the hard drive
.
If it is neces
sary to disassemble the h
ard drive, f
ollo

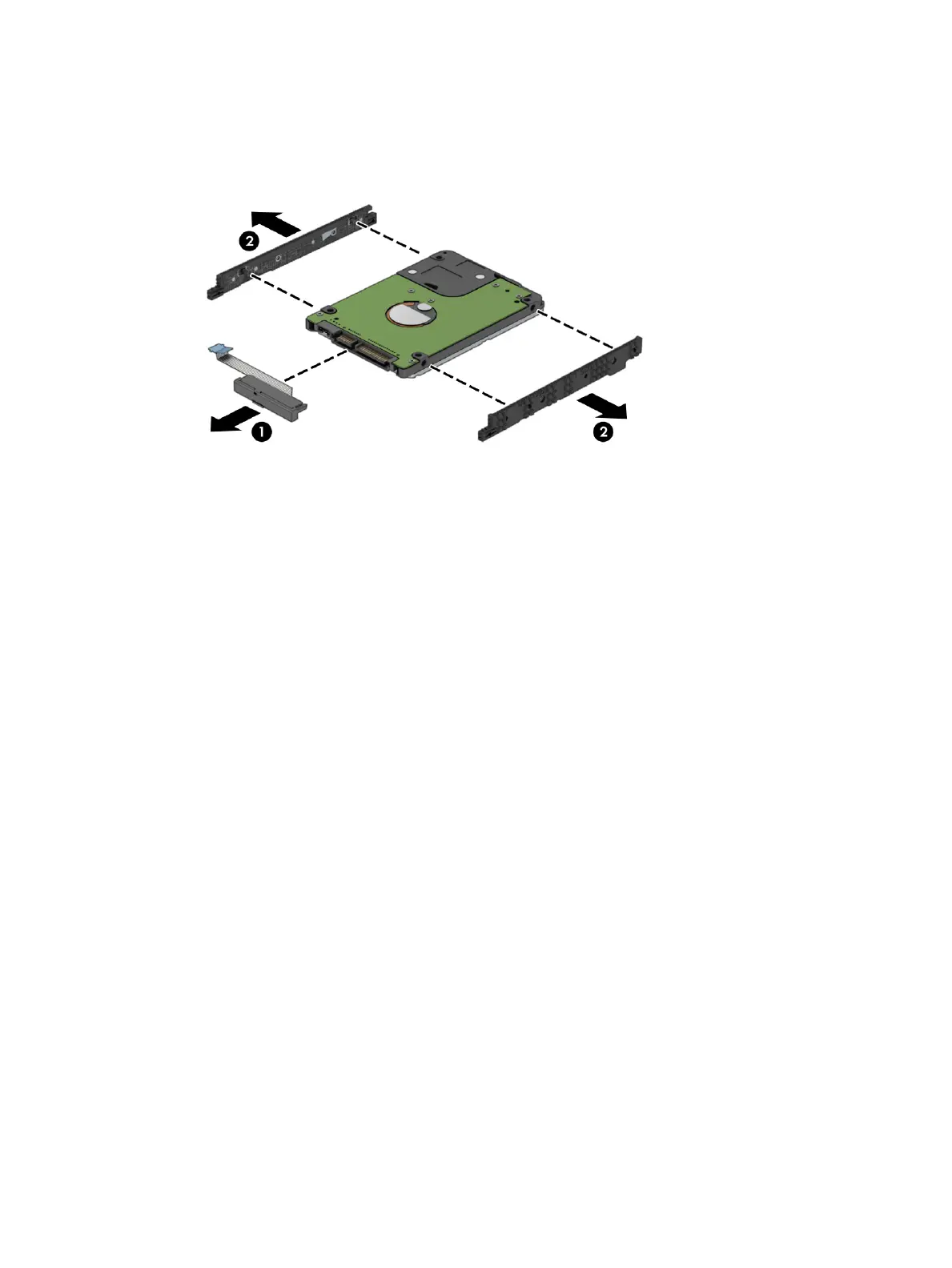

w these steps:
▲
Remov
e the hard driv
e connector
(1)
, and then r
emove the side br
ackets
(2)
.
Rev
erse this procedur
e to re
assemble the h
ard drive.
40
Chapt
er 5 Removal and r
eplacemen
t procedur
es for authorized servic
e provider parts
49
51
Table of Contents
Default Chapter
7
Table of Contents
7
1 Product Description
11
2 External Component Identification
19
Right Side
19
Left Side
20
Display
21
Top
22
Touchpad
22
Lights
23
Button and Speakers
24
Keys
25
Using the Action Keys
25
Bottom
27
Rear
28
Labels
28
3 Illustrated Parts Catalog
30
Computer Major Components
30
Display Assembly Subcomponents
34
Miscellaneous Parts
35
4 Removal and Replacement Procedures Preliminary Requirements
37
Tools Required
37
Service Considerations
37
Plastic Parts
37
Cables and Connectors
38
Drive Handling
38
Grounding Guidelines
39
Electrostatic Discharge Damage
39
Packaging and Transporting Guidelines
40
Workstation Guidelines
40
Equipment Guidelines
41
5 Removal and Replacement Procedures for Authorized Service Provider Parts
42
Component Replacement Procedures
42
Base Enclosure
42
Battery
44
Display Assembly
47
Hard Drive
49
Ssd (M.2)
51
Memory
52
WLAN Module
54
USB Board
55
Power Button Board
56
Fans
58
Heat Sink for Hybrid Graphics Memory
59
Heat Sink for CPU and Graphics
60
Speakers
62
System Board
63
RTC Battery
65
Power Connector
66
Touchpad
68
Display Panel
70
Camera
75
6 Using Setup Utility (BIOS)
77
Starting Setup Utility (BIOS)
77
Updating Setup Utility (BIOS)
77
Determining the BIOS Version
77
Downloading a BIOS Update
78
7 Using HP PC Hardware Diagnostics (UEFI)
79
Downloading HP PC Hardware Diagnostics (UEFI) to a USB Device
79
8 Backing Up, Restoring, and Recovering
81
Creating Recovery Media and Backups
81
Creating HP Recovery Media (Select Products Only)
81
Using Windows Tools
82
Restore and Recovery
83
Recovering Using HP Recovery Manager
83
What You Need to Know before You Get Started
83
Using the HP Recovery Partition (Select Products Only)
84
Using HP Recovery Media to Recover
84
Changing the Computer Boot Order
85
Removing the HP Recovery Partition (Select Products Only)
86
9 Specifications
87
Computer Specifications
87
39.62 CM (15.6 In) Display Specifications
88
Hard Drive Specifications
88
10 Power Cord Set Requirements
90
Requirements for All Countries
90
Requirements for Specific Countries and Regions
91
11 Recycling
93
Index
94
