Hard drive
Description Spare part number
Hard drive
1 TB 7200 RPM SATA RAW 9.5 mm 766644-005
2 TB 5400 RPM SATA RAW 7 mm, not available for products with AMD Radeon hybrid graphics 912487-855
Hard drive cable 858969-001
Hard drive brackets 913937-001
IMPORTANT: Make special note of each screw and screw lock size and location during removal
and replacement.
Before removing the hard drive, follow these steps:
1. Shut down the computer.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the base enclosure (see Base enclosure on page 32).
5. Disconnect the battery (see Battery on page 34).

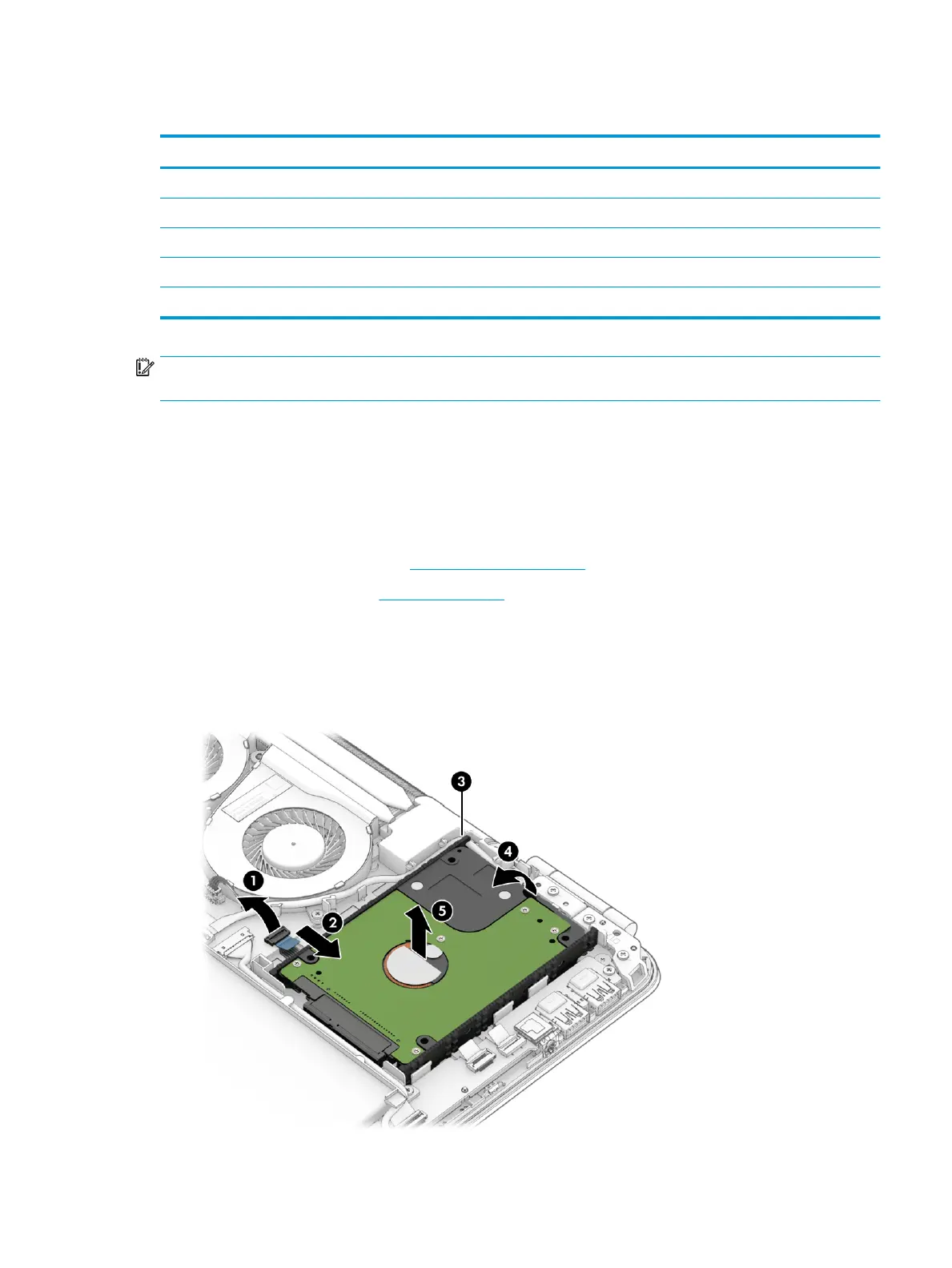

Remove the hard drive:
1. Disconnect the hard drive cable (1), slide the hard drive horizontally (2), and then loosen the side
brackets (3).
2. Lift the right side of the hard drive (4), and then remove the hard drive (5).
Component replacement procedures 39
