4. Remove the base enclosure (see Base enclosure on page 32).
5. Remove the battery (see Battery on page 34), and then remove the following components:
a. Hard drive (see Hard drive on page 39).
b. SSD (see SSD (M.2) on page 41).
c. Fans (see Fans on page 48).
NOTE: When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:
●
Heat sink for hybrid graphics (see Heat sink for hybrid graphics memory on page 49).
●
Heat sink for CPU and graphics (see Heat sink for CPU and graphics on page 50).
●
WLAN module (see WLAN module on page 44)
●
Memory module (see Memory on page 42)
●
RTC battery (see RTC battery on page 55)
Remove the system board:

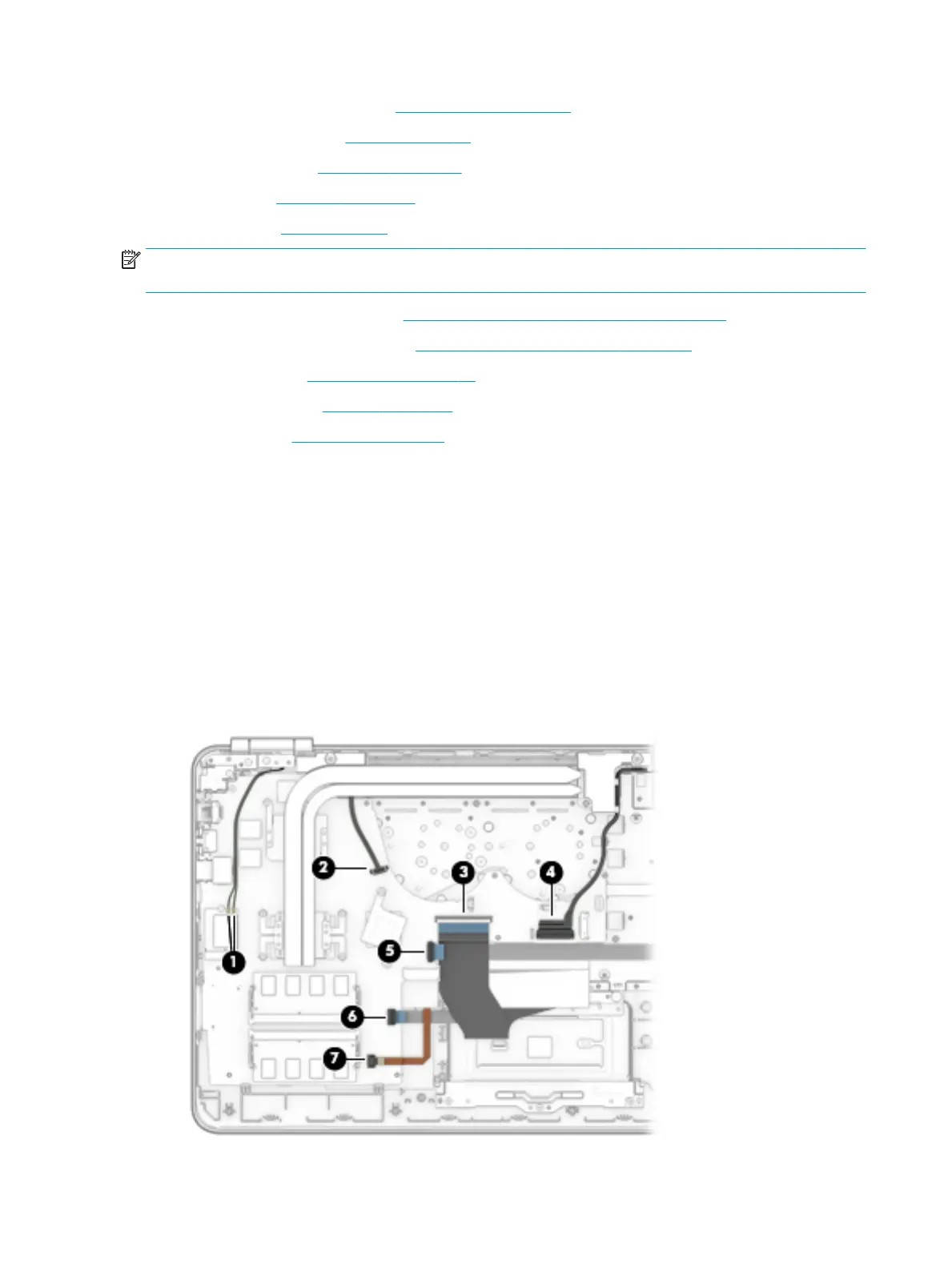

1. Disconnect the following cables and zero-insertion force (ZIF) connectors from the system board:
●
Wireless antenna cable (1)
●
Speaker cable (2)
●
Keyboard cable (3)
●
Display cable (4)
●
USB board cable (5)
●
TouchPad cable (6)
●
Memory cable (7)
