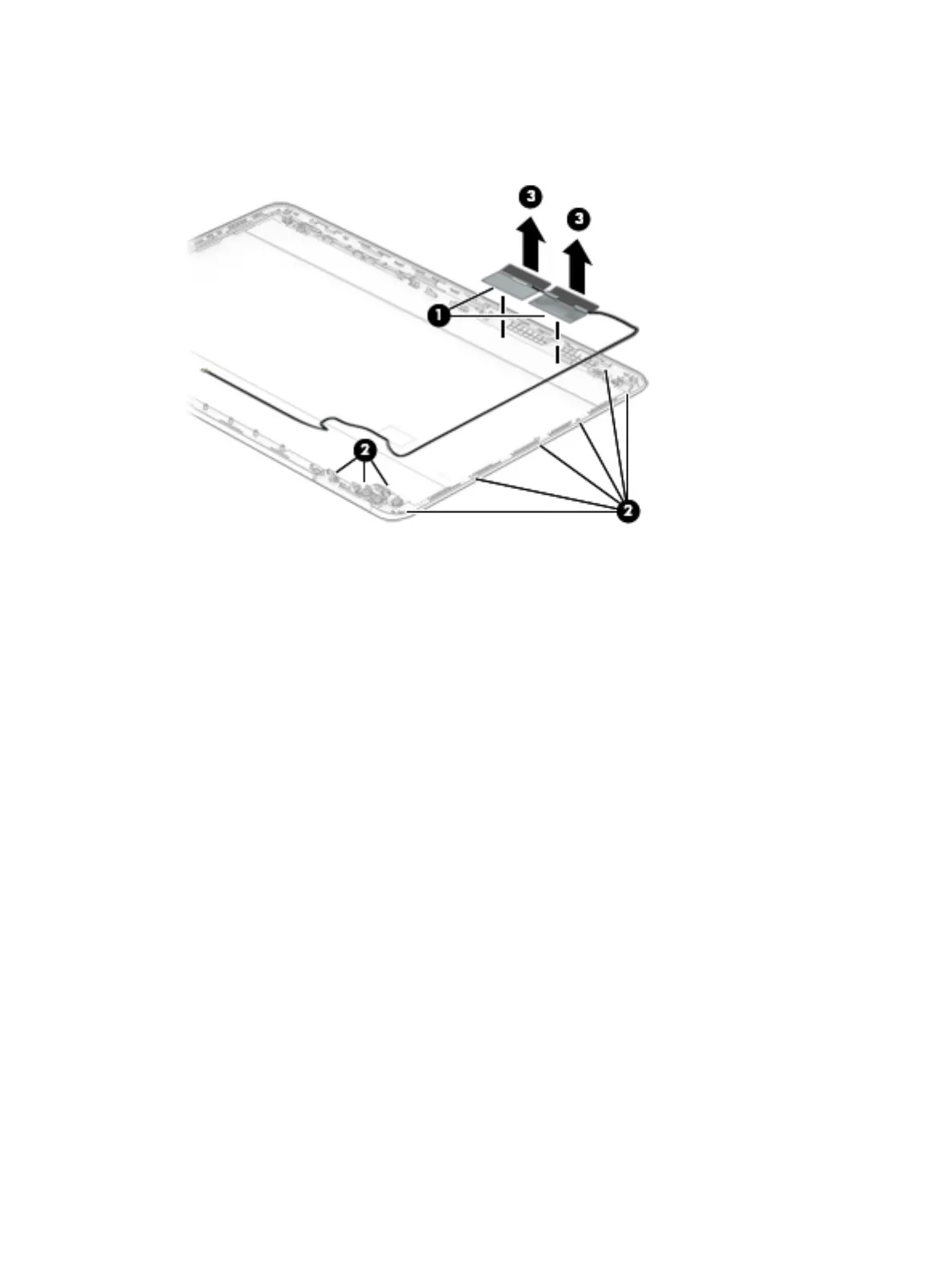

7. If it is necessary to replace the WLAN antennas, remove the WLAN antennas (1) from the back cover ,
release the WLAN cable from the routing channels (2), and then lift the antennas and cable to remove
them (3).
Reverse this procedure to install the display assembly and components.
64 Chapter 5 Removal and replacement procedures for authorized service provider parts
