HP P6300 Enterprise Virtual Array User Manual

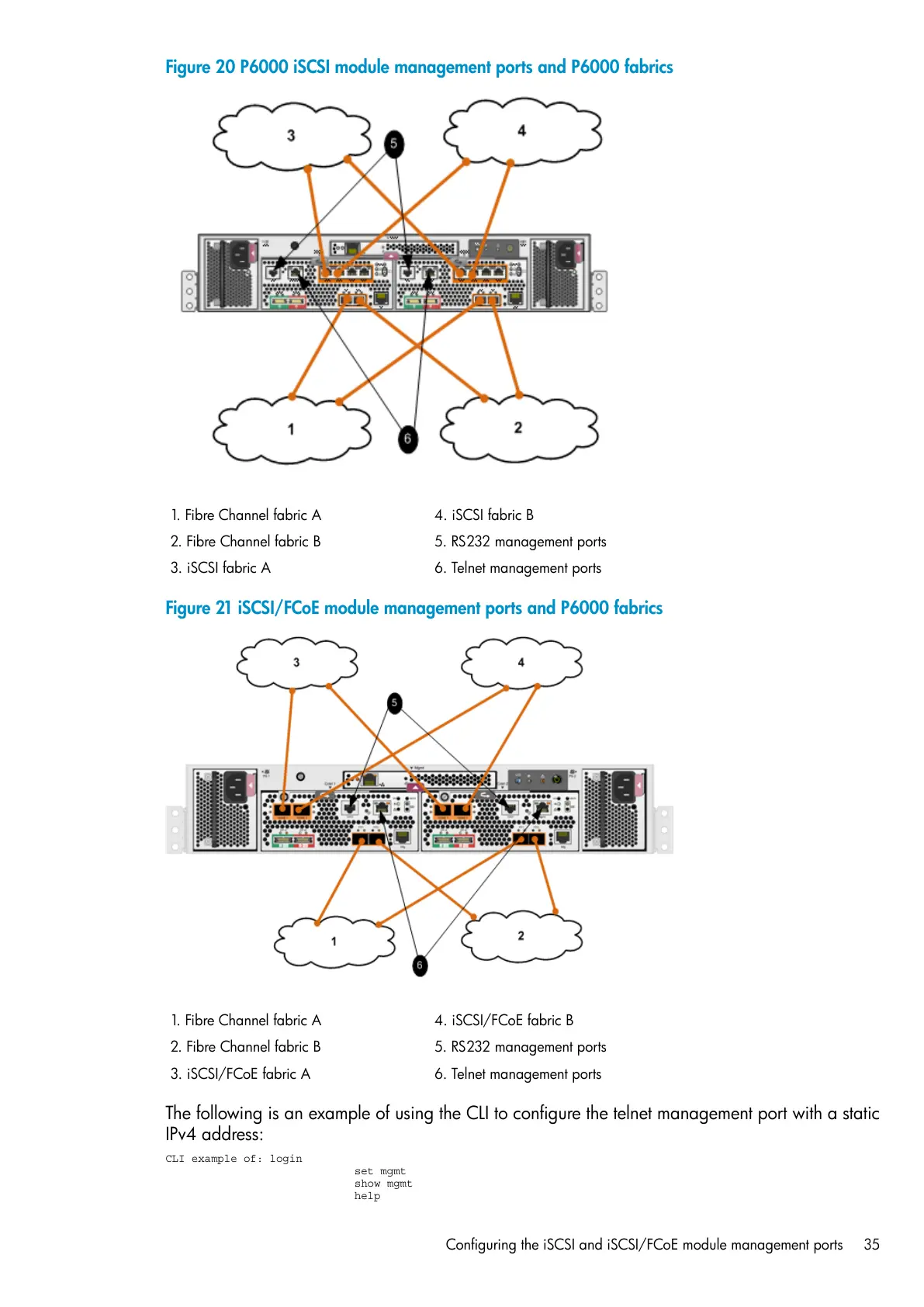

Figure 20 P6000 iSCSI module management ports and P6000 fabrics
4. iSCSI fabric B1. Fibre Channel fabric A
5. RS232 management ports2. Fibre Channel fabric B
6. Telnet management ports3. iSCSI fabric A
Figure 21 iSCSI/FCoE module management ports and P6000 fabrics
4. iSCSI/FCoE fabric B1. Fibre Channel fabric A
5. RS232 management ports2. Fibre Channel fabric B
6. Telnet management ports3. iSCSI/FCoE fabric A
The following is an example of using the CLI to configure the telnet management port with a static
IPv4 address:
CLI example of: login
set mgmt
show mgmt
help
Configuring the iSCSI and iSCSI/FCoE module management ports 35
