modules. The iSCSI/FCoE modules are configured as four instantiated hosts—two Fibre Channel
ports from each module (as illustrated in Figure 23 (page 38)) and as iSCSI MPX hosts 01, 02,
03, and 04 (Figure 27 (page 40), Figure 28 (page 40), Figure 29 (page 40), and Figure 30
(page 41)). The Fibre Channel ports associated with each iSCSI/FCoE host come from the IEEE
format 2 HP-registered MAC addresses and represent N-port ID virtualization (NPIV) functionality
called Virtual Port Groups (VPG). The iSCSI module does not support VPGs.

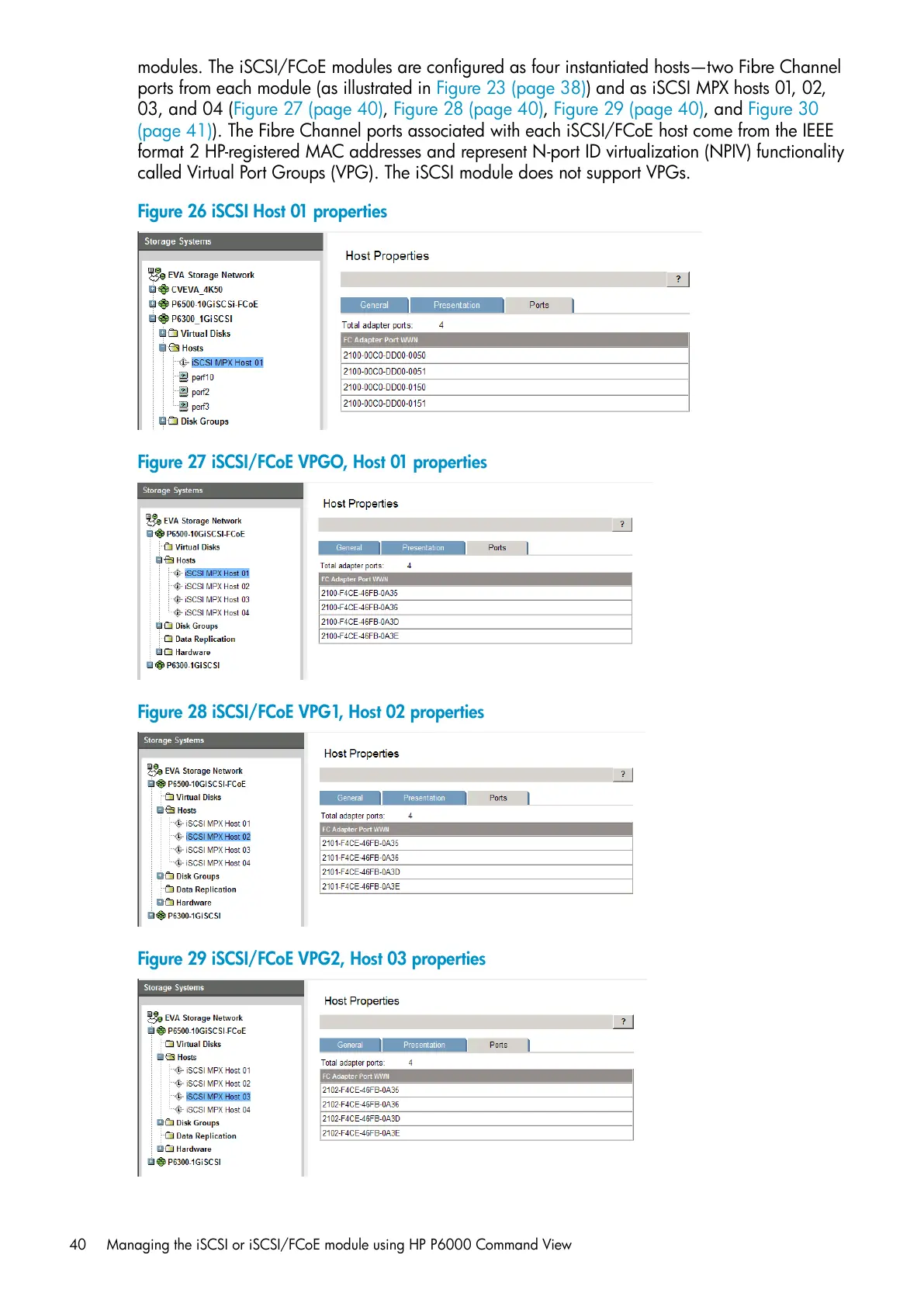

Figure 26 iSCSI Host 01 properties
Figure 27 iSCSI/FCoE VPGO, Host 01 properties
Figure 28 iSCSI/FCoE VPG1, Host 02 properties
Figure 29 iSCSI/FCoE VPG2, Host 03 properties
40 Managing the iSCSI or iSCSI/FCoE module using HP P6000 Command View
