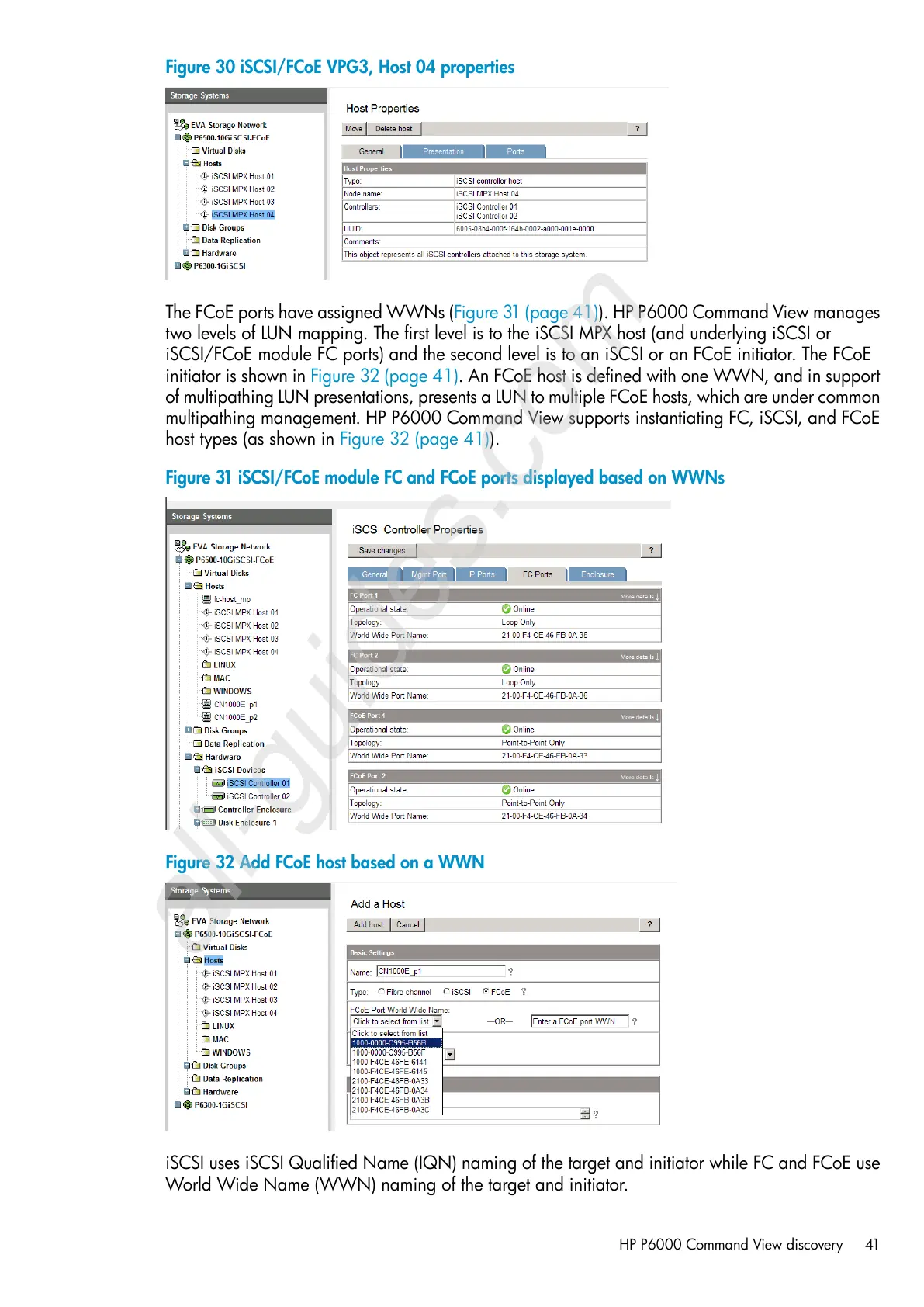

Figure 30 iSCSI/FCoE VPG3, Host 04 properties
The FCoE ports have assigned WWNs (Figure 31 (page 41)). HP P6000 Command View manages
two levels of LUN mapping. The first level is to the iSCSI MPX host (and underlying iSCSI or
iSCSI/FCoE module FC ports) and the second level is to an iSCSI or an FCoE initiator. The FCoE
initiator is shown in Figure 32 (page 41). An FCoE host is defined with one WWN, and in support
of multipathing LUN presentations, presents a LUN to multiple FCoE hosts, which are under common
multipathing management. HP P6000 Command View supports instantiating FC, iSCSI, and FCoE
host types (as shown in Figure 32 (page 41)).
Figure 31 iSCSI/FCoE module FC and FCoE ports displayed based on WWNs
Figure 32 Add FCoE host based on a WWN
iSCSI uses iSCSI Qualified Name (IQN) naming of the target and initiator while FC and FCoE use
World Wide Name (WWN) naming of the target and initiator.
HP P6000 Command View discovery 41
