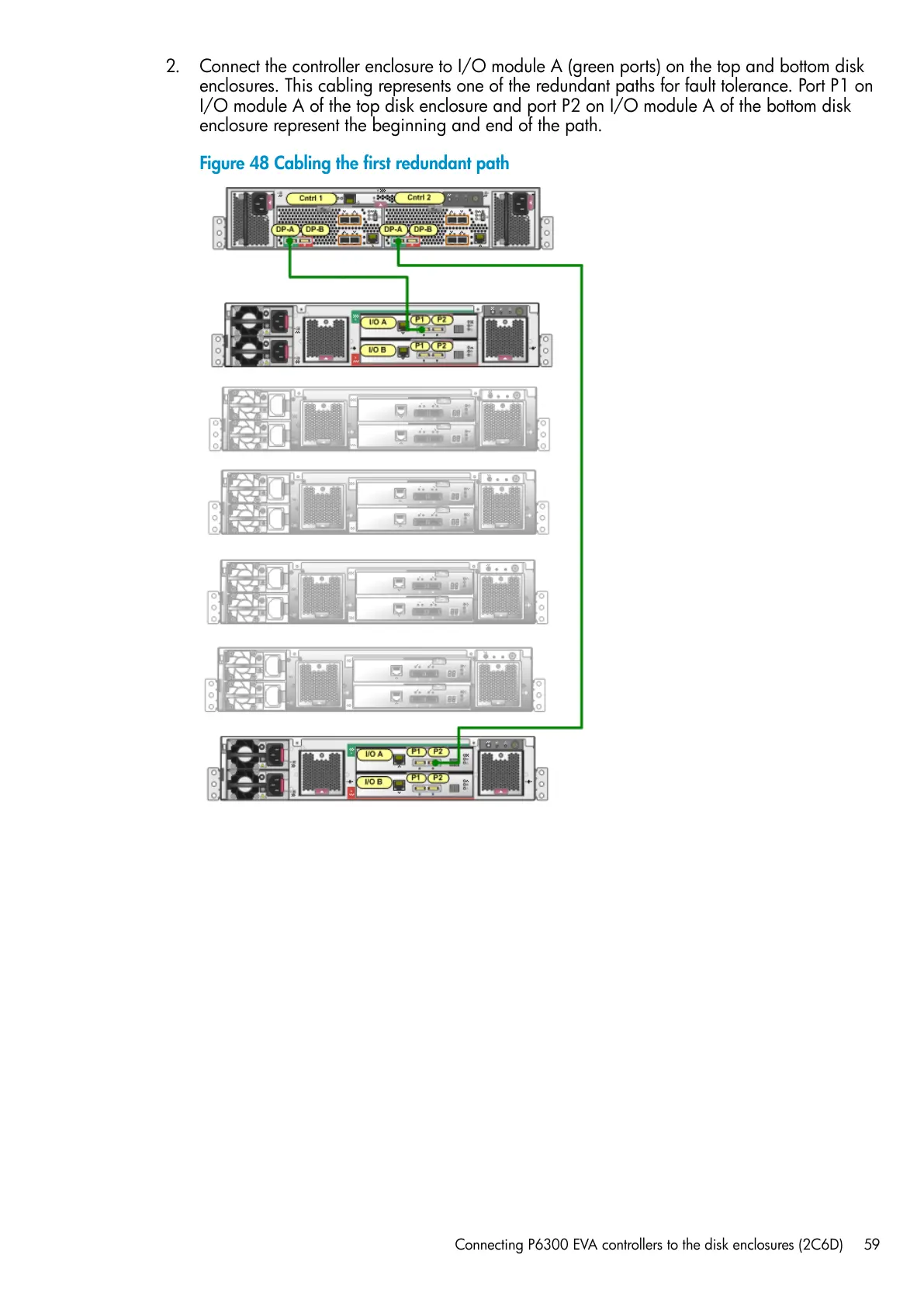

2. Connect the controller enclosure to I/O module A (green ports) on the top and bottom disk

enclosures. This cabling represents one of the redundant paths for fault tolerance. Port P1 on

I/O module A of the top disk enclosure and port P2 on I/O module A of the bottom disk

enclosure represent the beginning and end of the path.

Figure 48 Cabling the first redundant path

Connecting P6300 EVA controllers to the disk enclosures (2C6D) 59
