3. Connect the controller enclosure to I/O module B (red ports) on the top and bottom disk
enclosures. This cabling represents the second redundant path (P1 on I/O module B of the
top disk enclosure and P2 on I/O module B of the bottom disk enclosure).

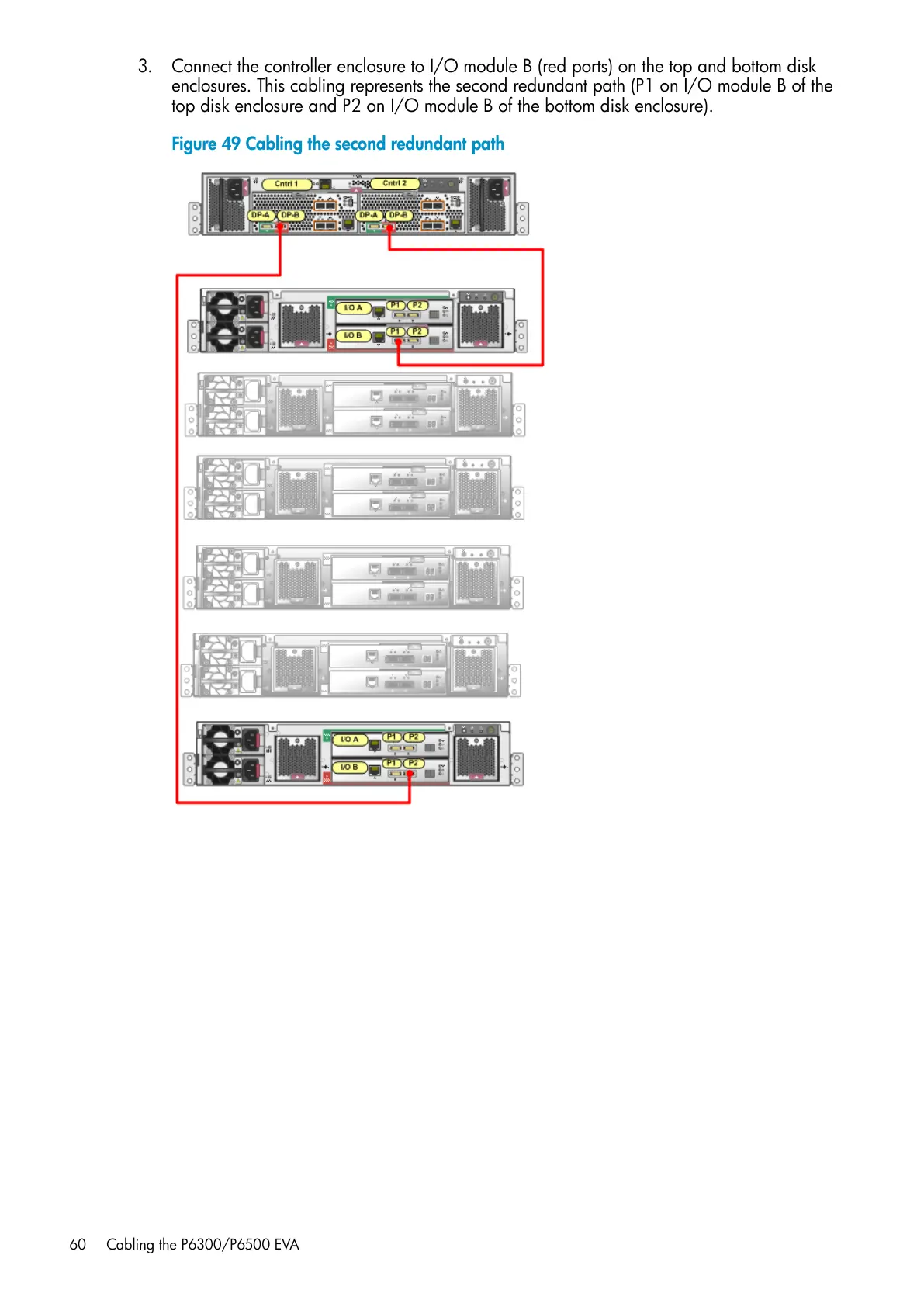

Figure 49 Cabling the second redundant path
60 Cabling the P6300/P6500 EVA
