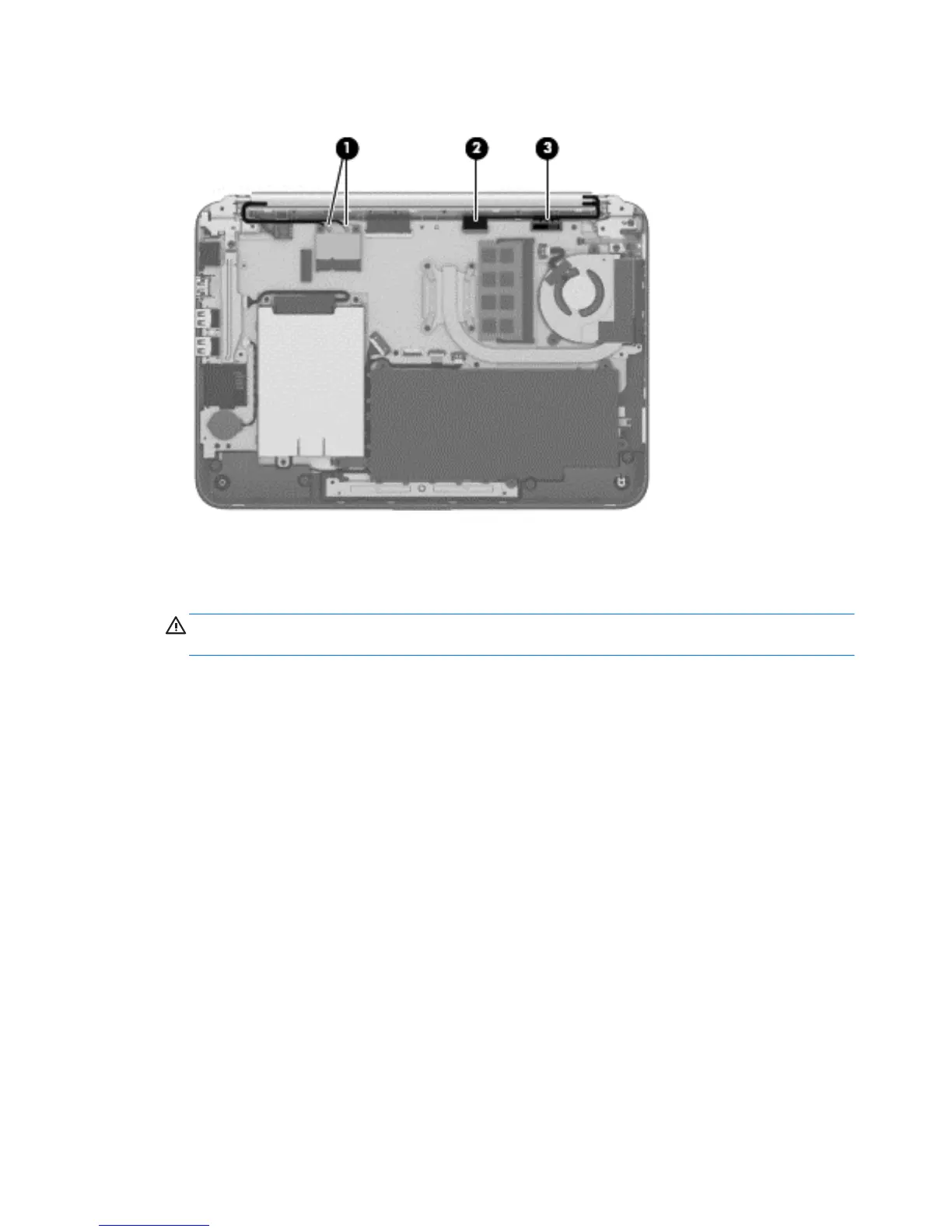

3. Disconnect the display panel cable (3) from the system board.
4. Lift the black foam piece that covers the right screw on the right hinge (1).
5. Remove the two silver Phillips PM2.5×4.0 screws (2) and the two black Phillips PM2.5×5.0 screws (3)
that secure the display assembly and bracket to the computer.
CAUTION: Support the display assembly when removing the screws. Failure to support the display
assembly can result in damage to the display assembly and other computer components.
6. Lift the computer to force the hinges to rotate upward to an angle (4).
54 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
