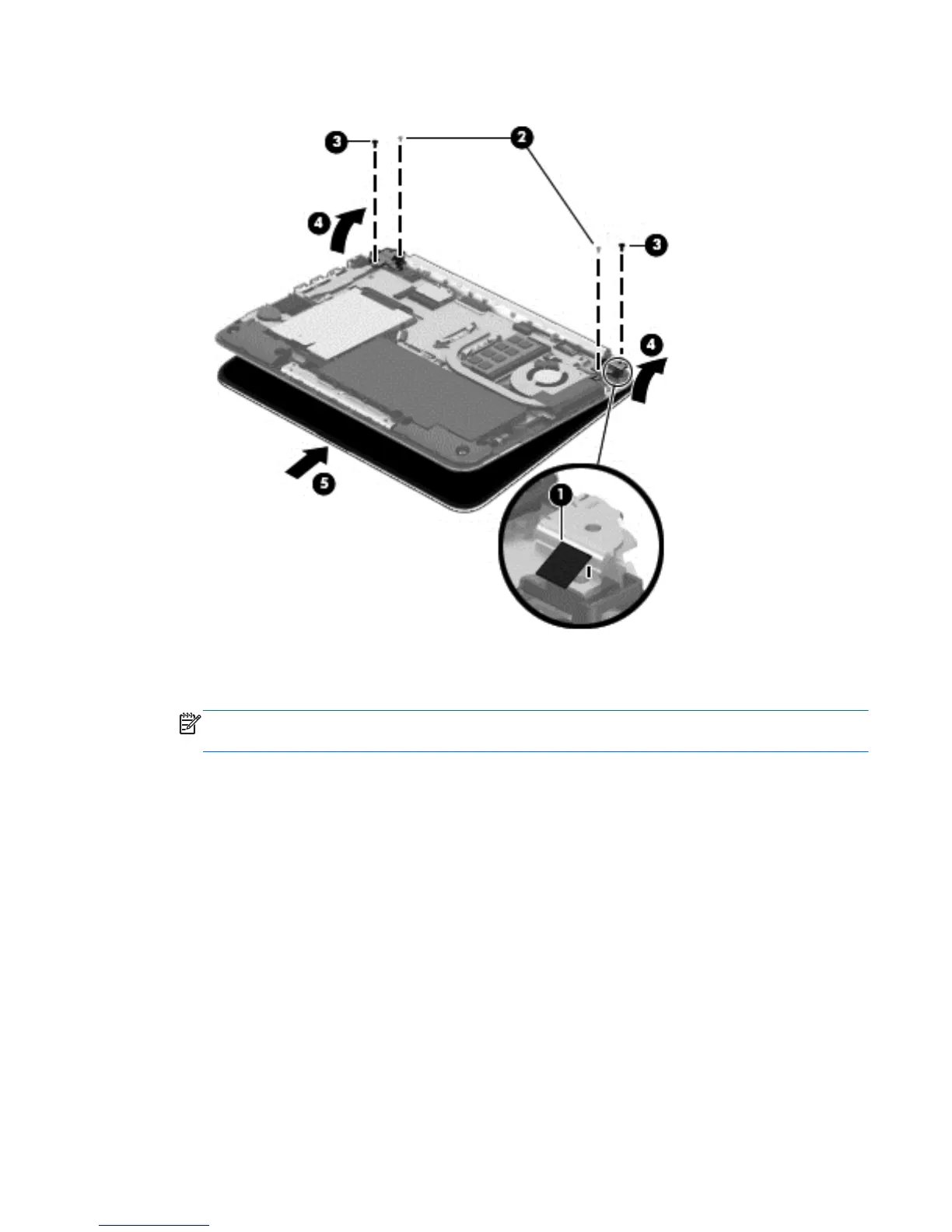

7. Separate the display assembly from the computer (5).
If it is necessary to replace any of the display assembly subcomponents:
1. To remove the display enclosure:
NOTE: The display enclosure is available using spare part number 758846-001 for red models and
758845-001 for silver models.
a. Remove the two screw covers (1).
b. Remove the two Phillips PM2.5×4.0 screws (2) that secure the enclosure to the display.
Component replacement procedures 55
