● L51750-001 – For use only on computer models in luminous green nish
● L19170-001 – For use only on computer models in natural silver nish
● L51749-001 – For use only on computer models in plum mauve nish
● L19171-001 – For use only on computer models in rose gold nish

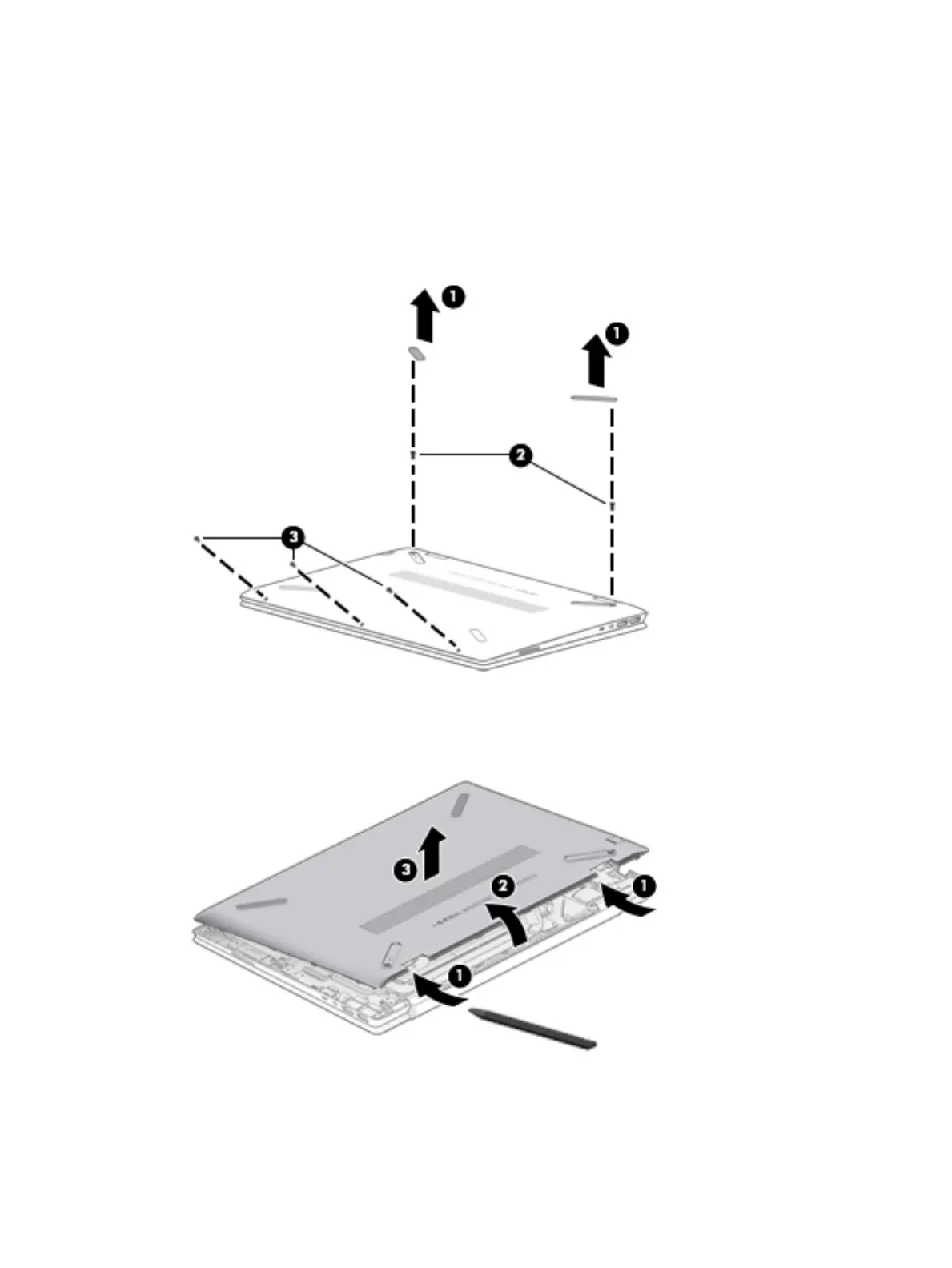

2. Remove the two Phillips M2.5×5.0 screws (P1 driver) under the rubber feet.
3. Remove the three Phillips M2.0×4.0 screws (P0 driver) along the front edge on the bottom cover
4. Starting under the hinges, use a thin plastic tool (1) to pry the bottom cover o the computer (2).
5. Remove the bottom cover (3).
Reverse this procedure to install the bottom cover.
52 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
