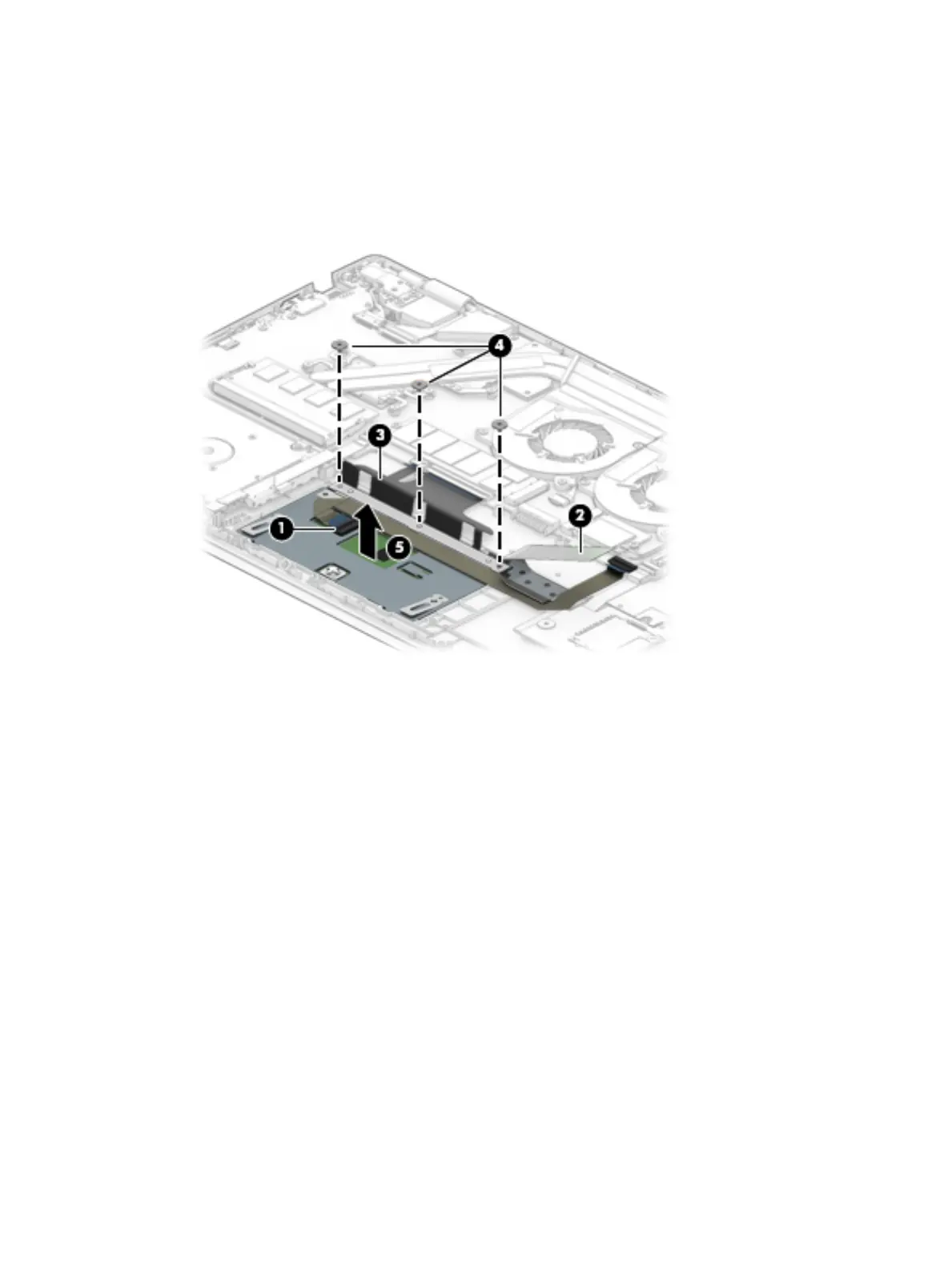

3. Disconnect the cable from the ZIF connector on the TouchPad (1).
4. Lift the keyboard cable to provide access to the screws(2).
5. Lift the clear plastic covering the top of the screws (3).
6. Remove the three Phillips M2.0×2.0 broad head screws (4) that secure the TouchPad to the computer.
7. Remove the TouchPad from the computer (5).
Reverse this procedure to install the TouchPad.
Component replacement procedures 75
