HP Pavilion 14 Series

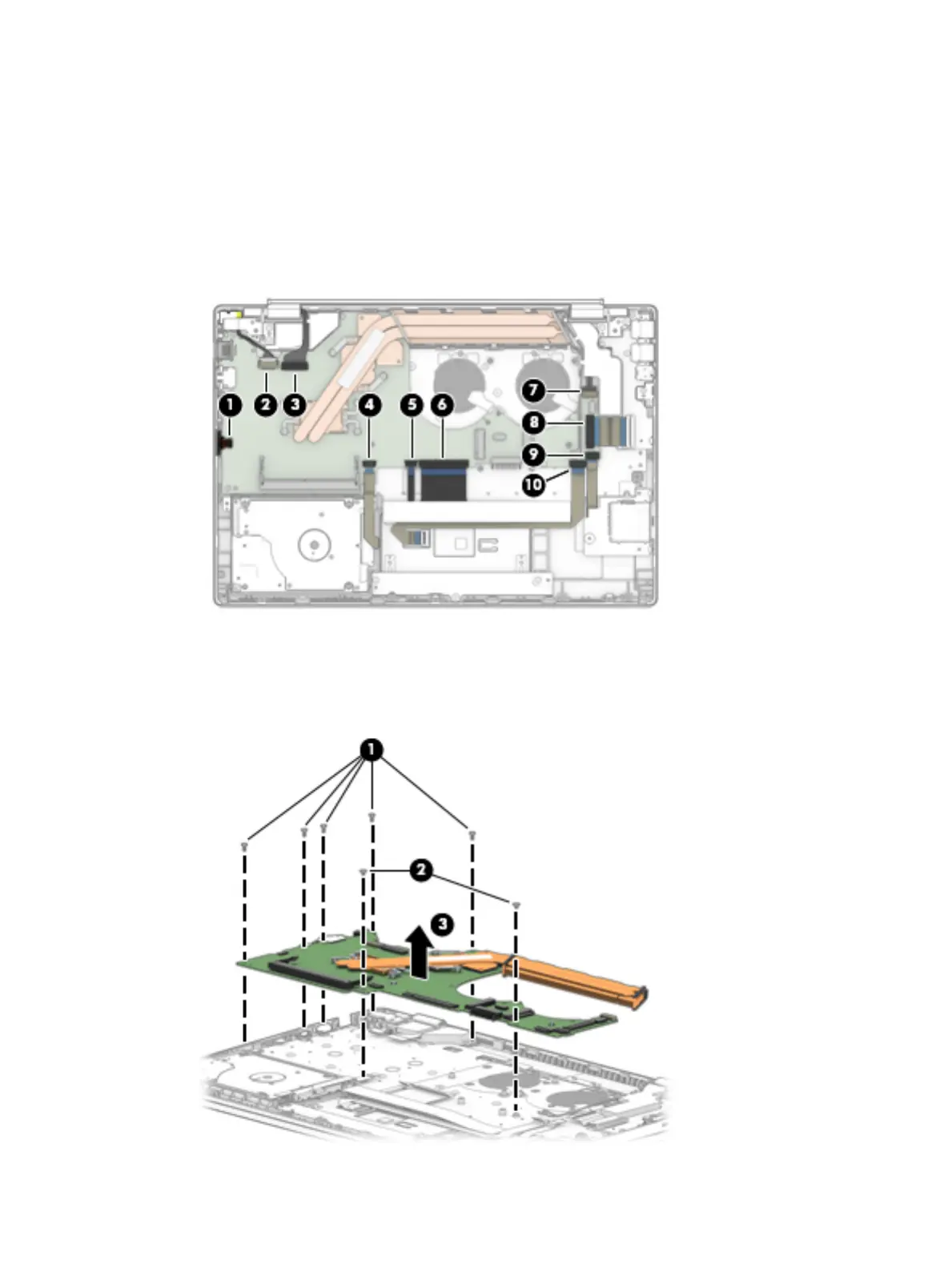

(5) Backlight cable
(6) Keyboard cable
(7) Speaker cable
(8) USB board cable
(9) Card reader cable
(10) TouchPad cable
2. Remove the ve Phillips M2.0×4.0 screws (1) that secure the system board to the computer.
3. Remove the two Phillips M2.0×2.5 screws (2) that secure the system board to the computer.
4. Lift the system board out of the computer (3).
Component replacement procedures 87
