HP Pavilion 14

Remove the hard drive:

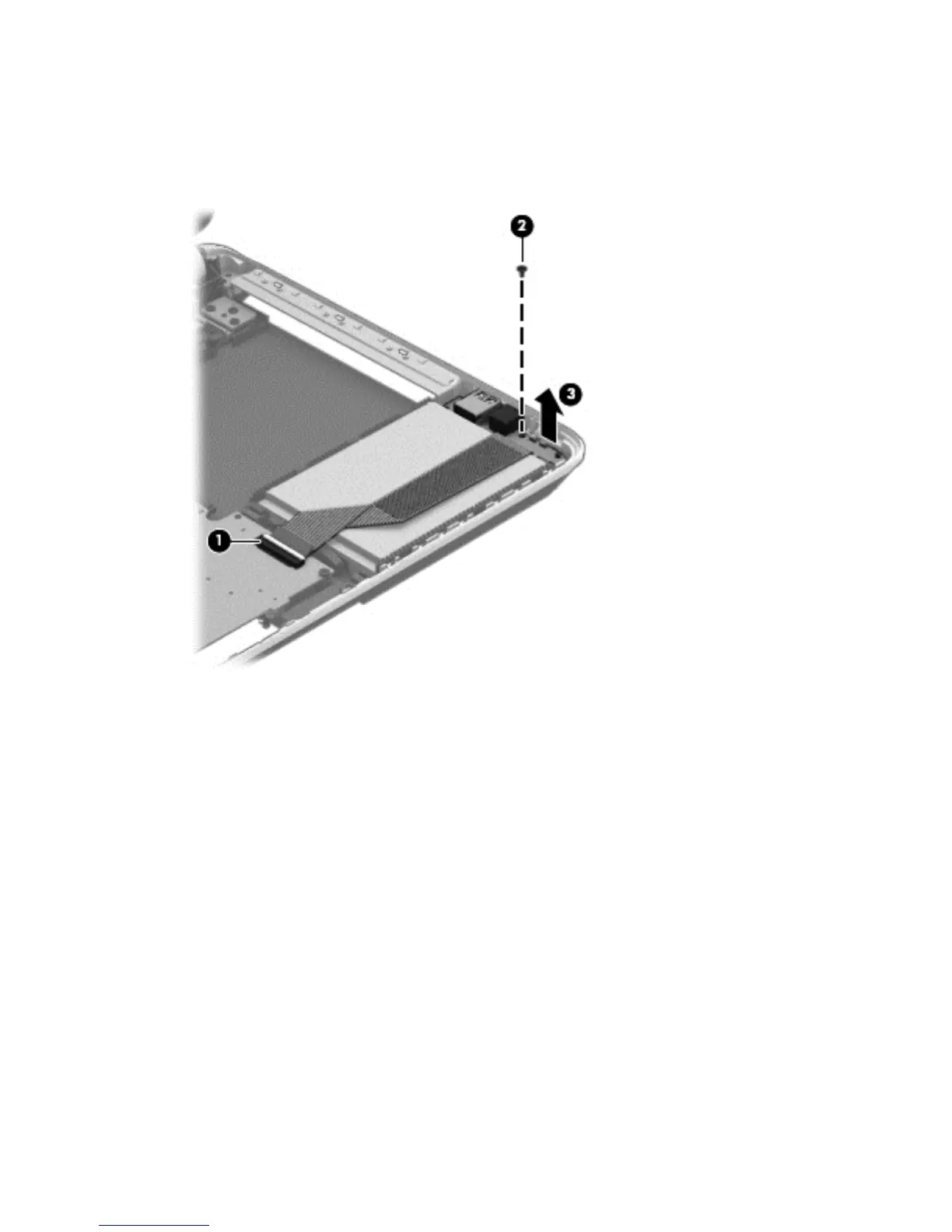

1. Disconnect the USB/audio cable (1) by flipping the connector and lifting the cable. Remove the
USB/audio cable Phillips M 2.5×3.0 screw (2) and then lift the USB/audio board (3). The USB/
audio board spare part number is 734417-001.
72 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
