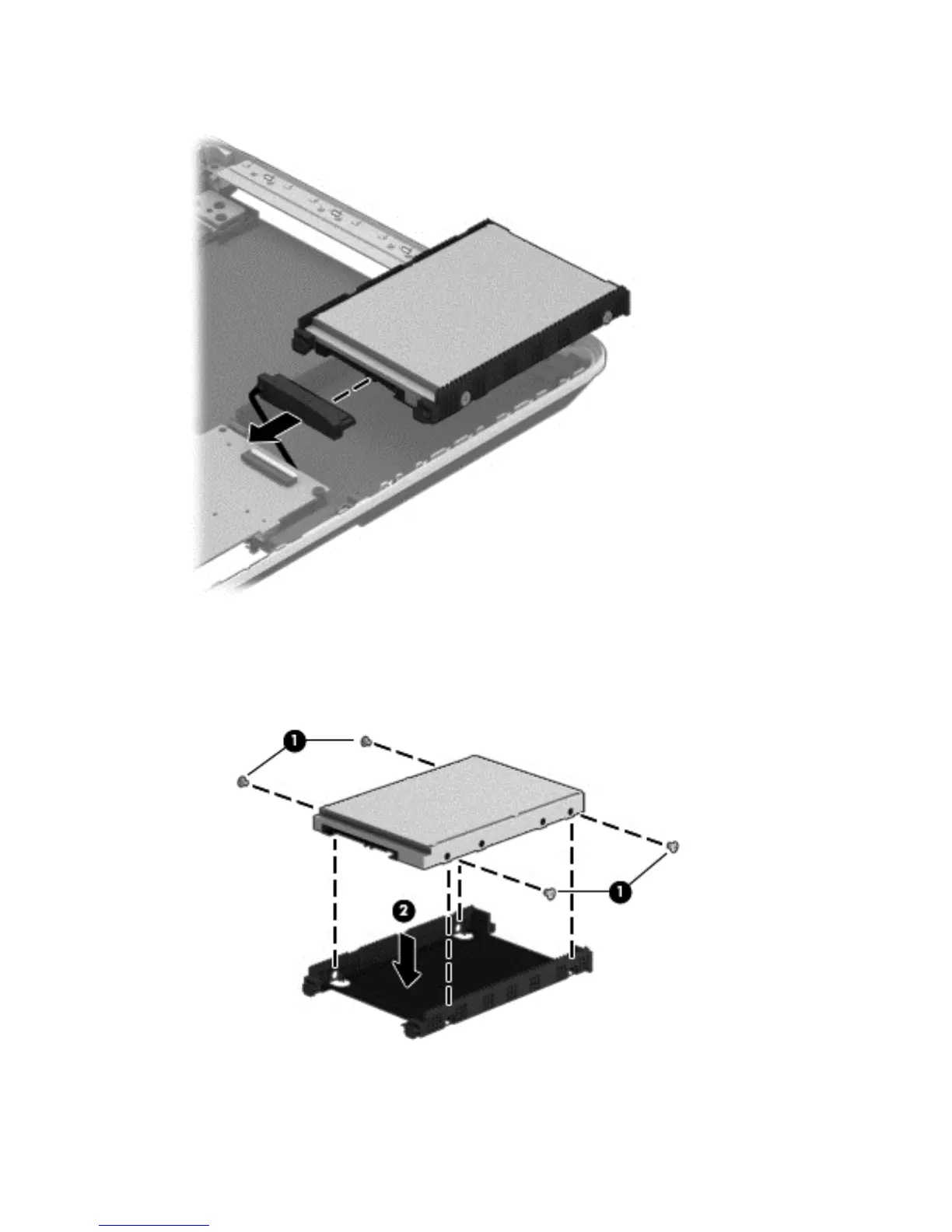

3. Disconnect the hard drive connector cable from the hard drive.
4. If it is necessary to disassemble the hard drive, perform the following steps:
a. Remove the four Phillips M3.0×3.5 screws (1) from the bracket.
b. Remove the bracket (2) from the hard drive.
Reverse this procedure to reassemble and install the hard drive.
74 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
