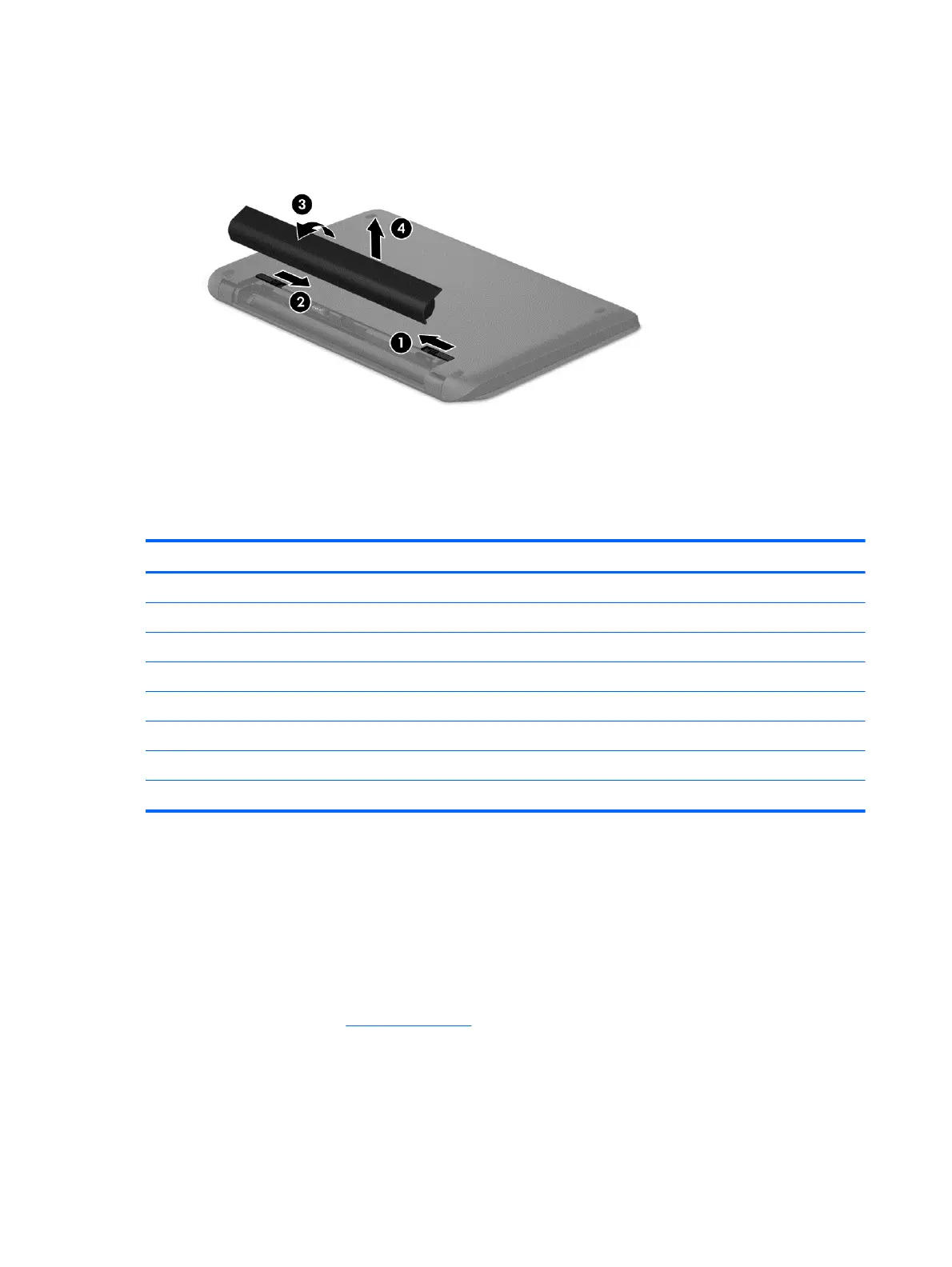

3. Rotate the battery upward (3), and then remove the battery from the computer (4).
Optical drive
Description Spare part number
Optical drive (DVD+/-RW Double-Layer SuperMulti)
For use in natural silver models 809304-001
For use in blizzard white models 809305-001
For use in cobalt blue models 809307-001
For use in peachy pink models 809308-001
For use in violet purple models 809309-001
For use in sunset red models 809306-001
For use in sparkling black models 810950-001
Before removing the optical drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 27).
To remove the optical drive:
1. Remove the Phillips PM2.5×7.0 screw (1) that secures the optical drive to the computer.
28 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
