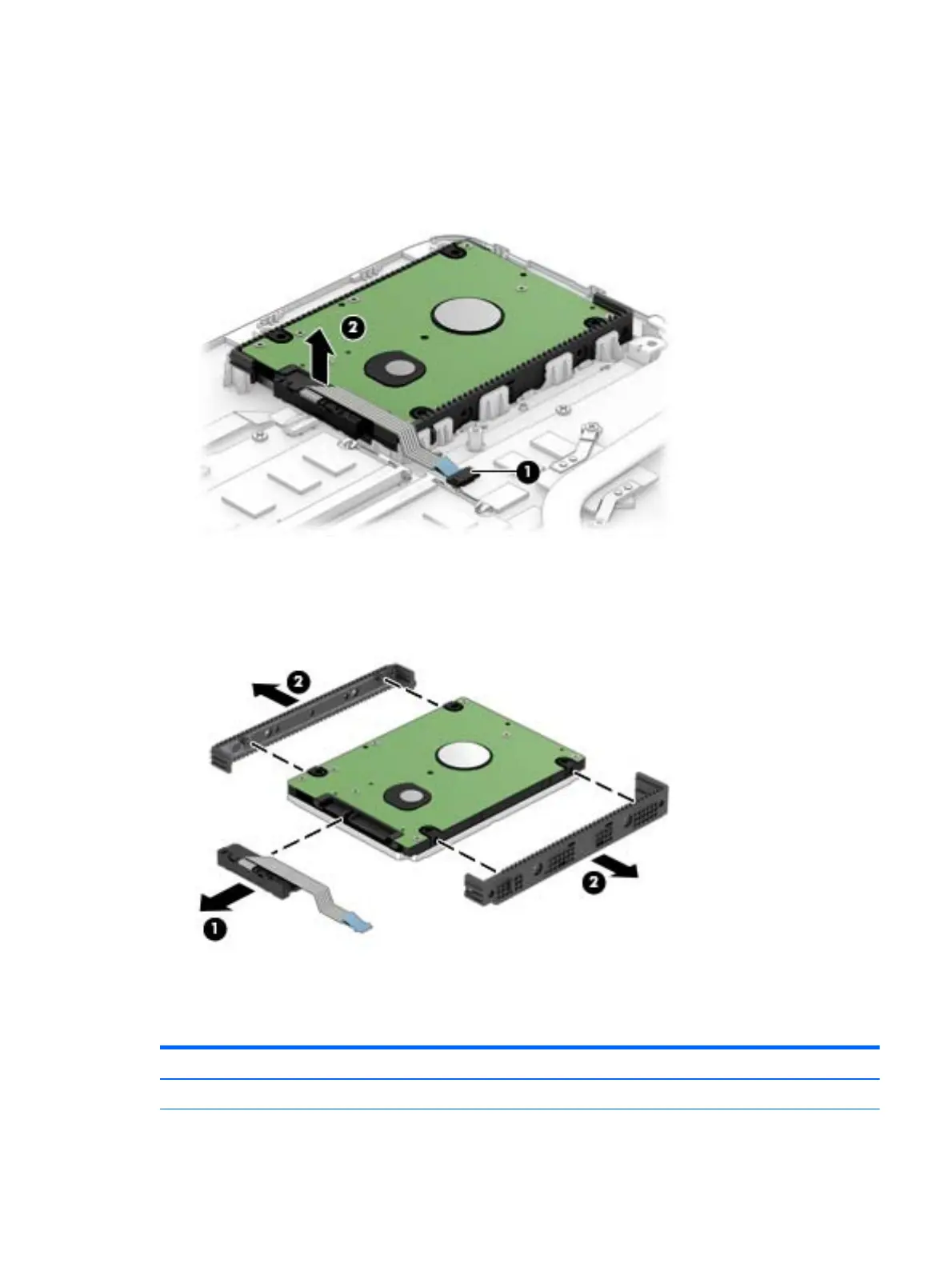

2. Lift the hard drive from the computer (2).
3. Disconnect the hard drive connector and cable (1) from the hard drive.
To disassemble the hard drive, pull the brackets away from each side of the hard drive (1).
4. To disassemble the hard drive, pull the brackets away from each side of the hard drive (2).
Reverse this procedure to reassemble and install the hard drive.
WLAN module
Description Spare part number
Intel Dual Band Wireless-AC 3160 802.11 ac 1x1 WiFi + Bluetooth 4.0 Combo Adapter 784638-005
Component replacement procedures 37
