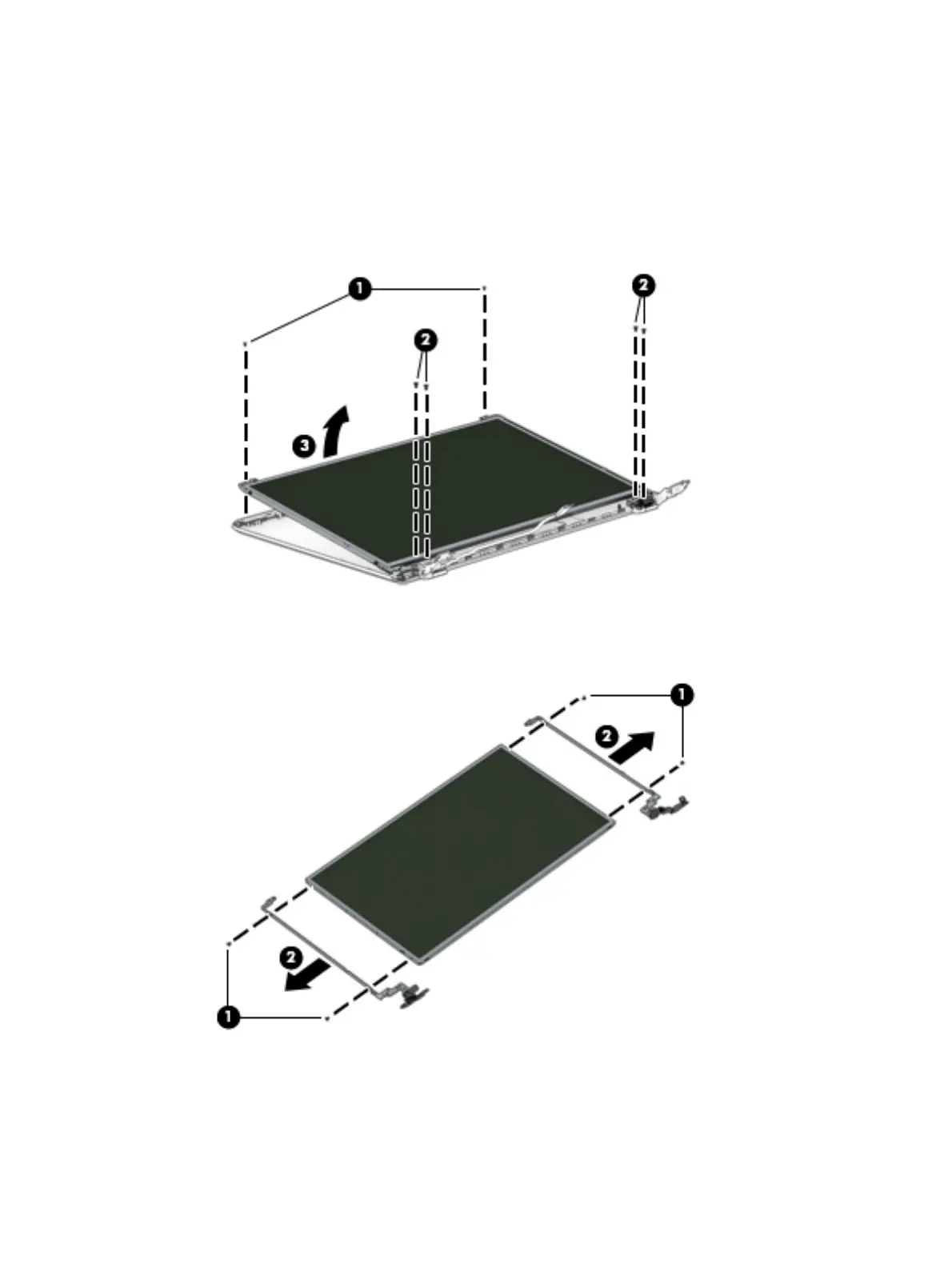

a. Position the display assembly with the top edge toward you.
b. Remove the two Phillips PM2.0×3.0 screws that secure the display panel to the top of the bezel
(1).
c. Remove the four Phillips PM2.0×3.0 screws that secure the display panel to the base of the bezel
(2).
d. Lift the top of the panel (3).
2. To remove the display hinges:
▲
Remove the four screws on the display hinges (1) and slide the display hinges off of the panel (2).
60 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
