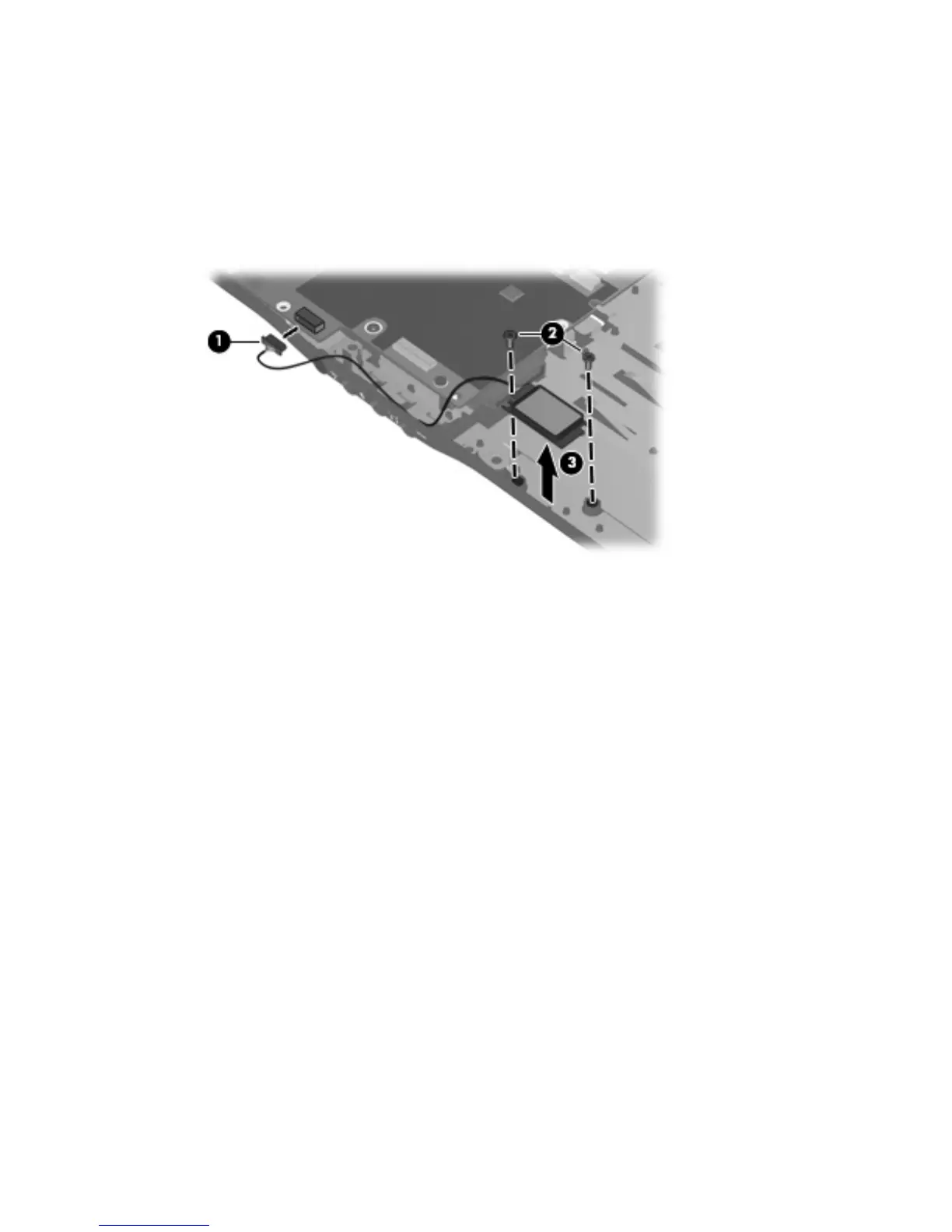

Remove the Bluetooth module:
1. Disconnect the Bluetooth module cable (1) from the system board. The Bluetooth module cable is
included in the Bluetooth module spare part kit and is also available in the Cable Kit, spare part
number 417075-001.
2. Remove the two Phillips PM2.0×3.0 screws (2) that secure the Bluetooth module to the computer.
3. Remove the Bluetooth module (3).
Reverse the above procedure to install the Bluetooth module.
Component replacement procedures 99
