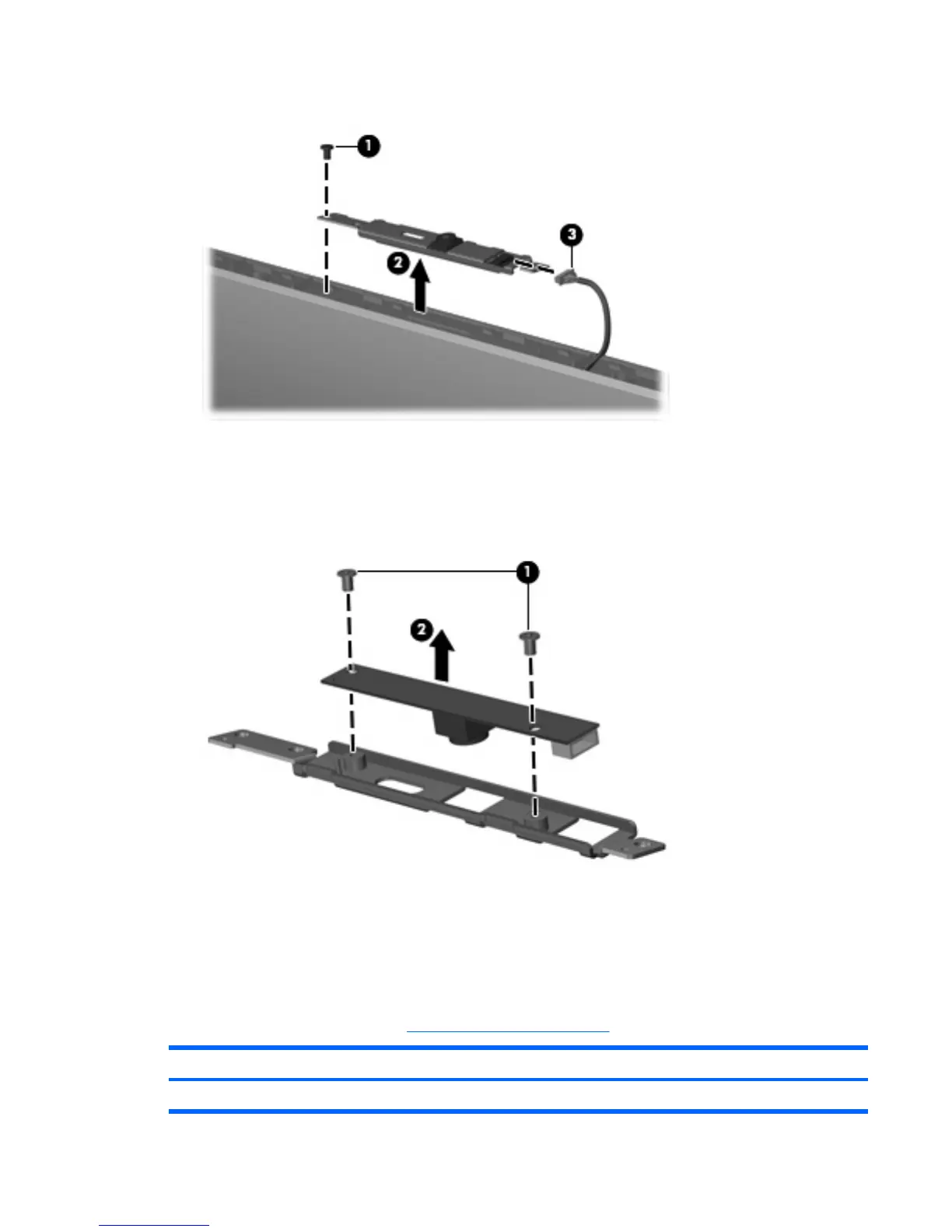

9. Disconnect the camera module cable (3) from the camera module.
10.
Turn the camera module assembly upside down.
11. Remove the two Phillips PM2.0×3.0 screws (1) that secure the camera module to the camera module
bracket.
12. Remove the camera module (2) from the bracket.
Reverse this procedure to install the camera module.
Display inverter
If it has been determined that the display inverter is the component that must be replaced to complete the
computer repair, the display assembly does not have to be removed. Follow the procedures in this section
to replace the display inverter. For information on replacing the display assembly and other display
assembly internal components, see
Display assembly on page 82.
Description Spare part number
Display inverter (includes 2-sided tape) 417097-001
Component replacement procedures 59
