HP PAVILION DV2700

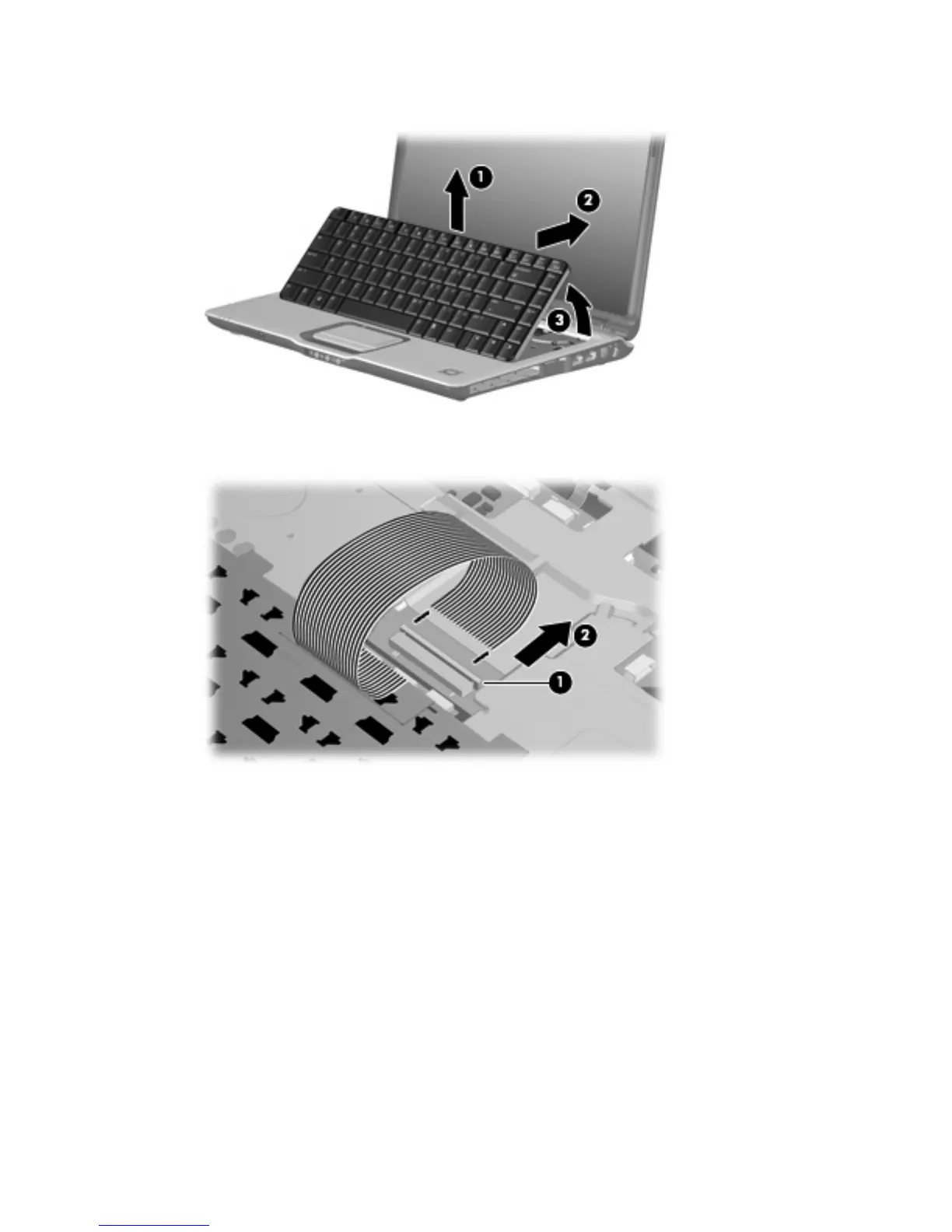

7. Lift the rear edge of the keyboard (3) and swing it forward until it rests on the palm rest.
8. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached and
disconnect the keyboard cable (2) from the system board.
9.
Remove the keyboard.
Reverse this procedure to install the keyboard.
Component replacement procedures 77
