Removal and replacement procedures
Maintenance and Service Guide 4–43

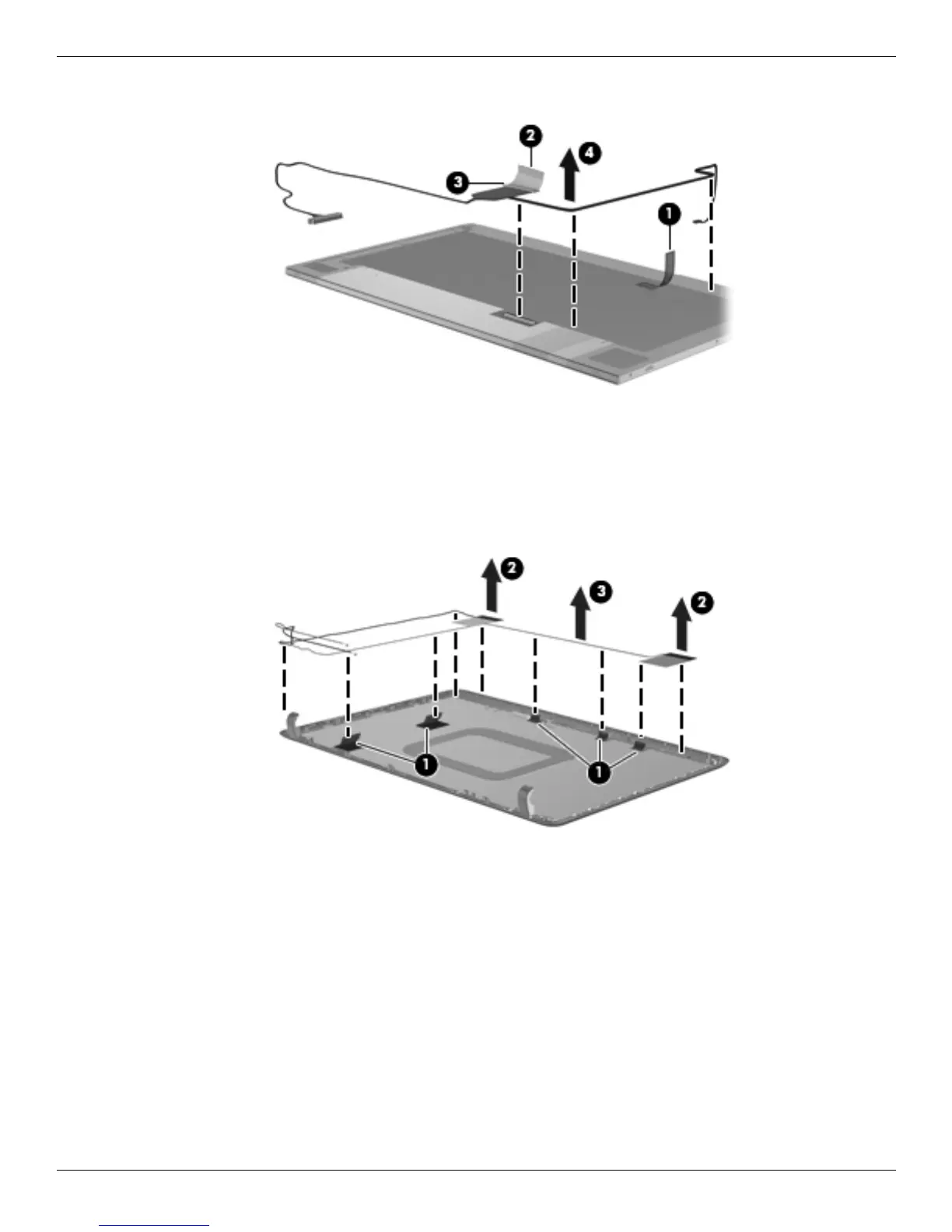

54. Remove the display panel cable 4. The display panel cable is available using spare part number 577681-001.
55. If it is necessary to replace the wireless antenna transceivers and cables, release the tabs 1 built into the display
enclosure shielding.
56. Release the wireless antenna transceivers 2 from the display enclosure. The transceivers are attached to the
enclosure with double-sided tape.
57. Remove the wireless antenna transceivers and cables 3. The wireless antenna transceivers and cables are
available using spare part number 531781-001.
Reverse this procedure to reassemble and install the display assembly.
