Removal and replacement procedures
Maintenance and Service Guide 4–57
Remove the fan/heat sink assembly:
1. Turn the system board upside down with the front toward you.
✎
Steps 2 and 3 apply to computer models equipped with graphics subsystems with discrete memory. See steps 4
and 5 for instructions on removing the fan/heat sink assembly on computer models equipped with graphics
subsystems with UMA memory.

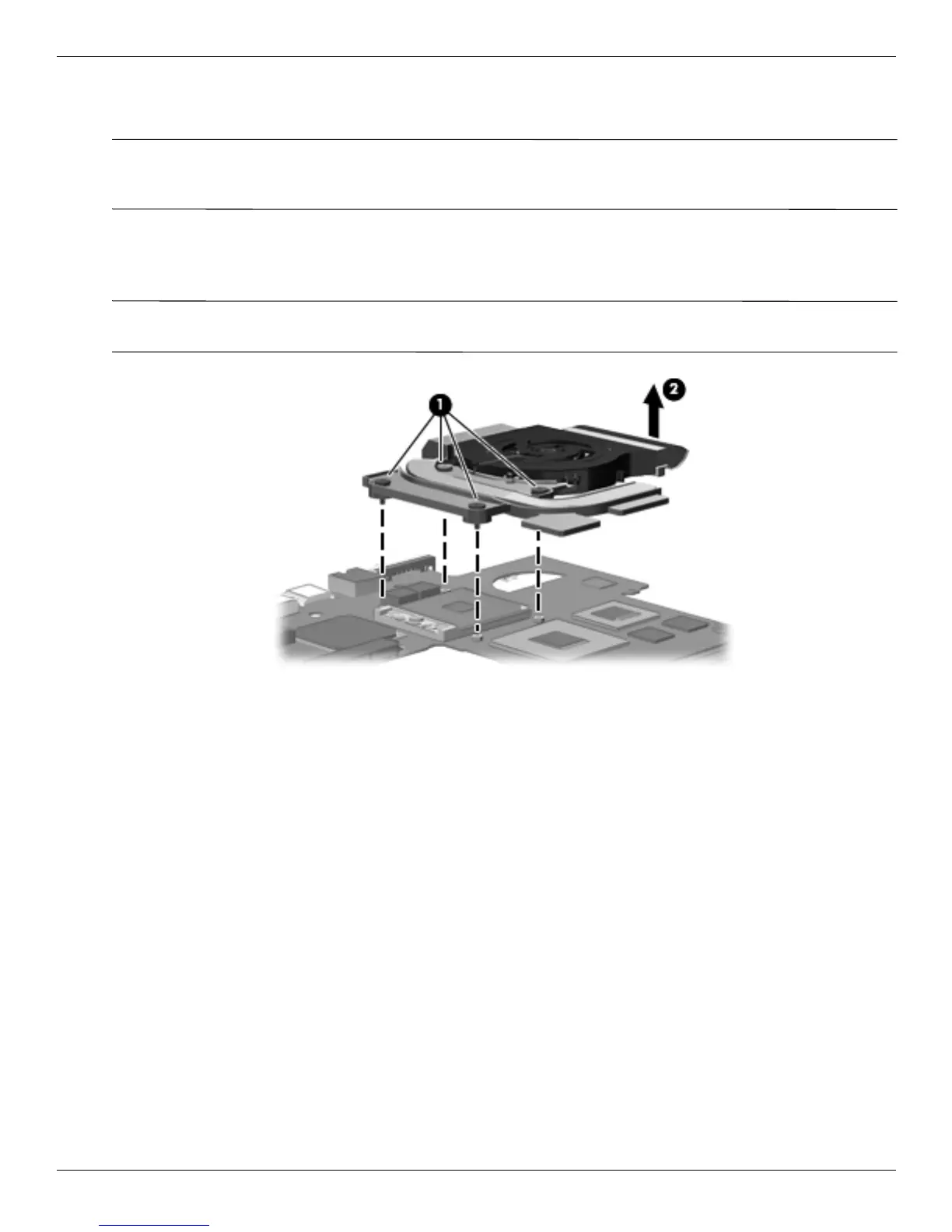

2. Loosen the four captive Phillips PM2.0×7.0 screws 1 that secure the fan/heat sink assembly to the
system board.
3. Remove the fan/heat sink assembly 2.
✎
Due to the adhesive quality of the thermal material located between the fan/heat sink assembly and system board
components, it may be necessary to move the fan/heat sink assembly from side to side to detach the assembly.
