Removal and replacement procedures
Maintenance and Service Guide 4–9

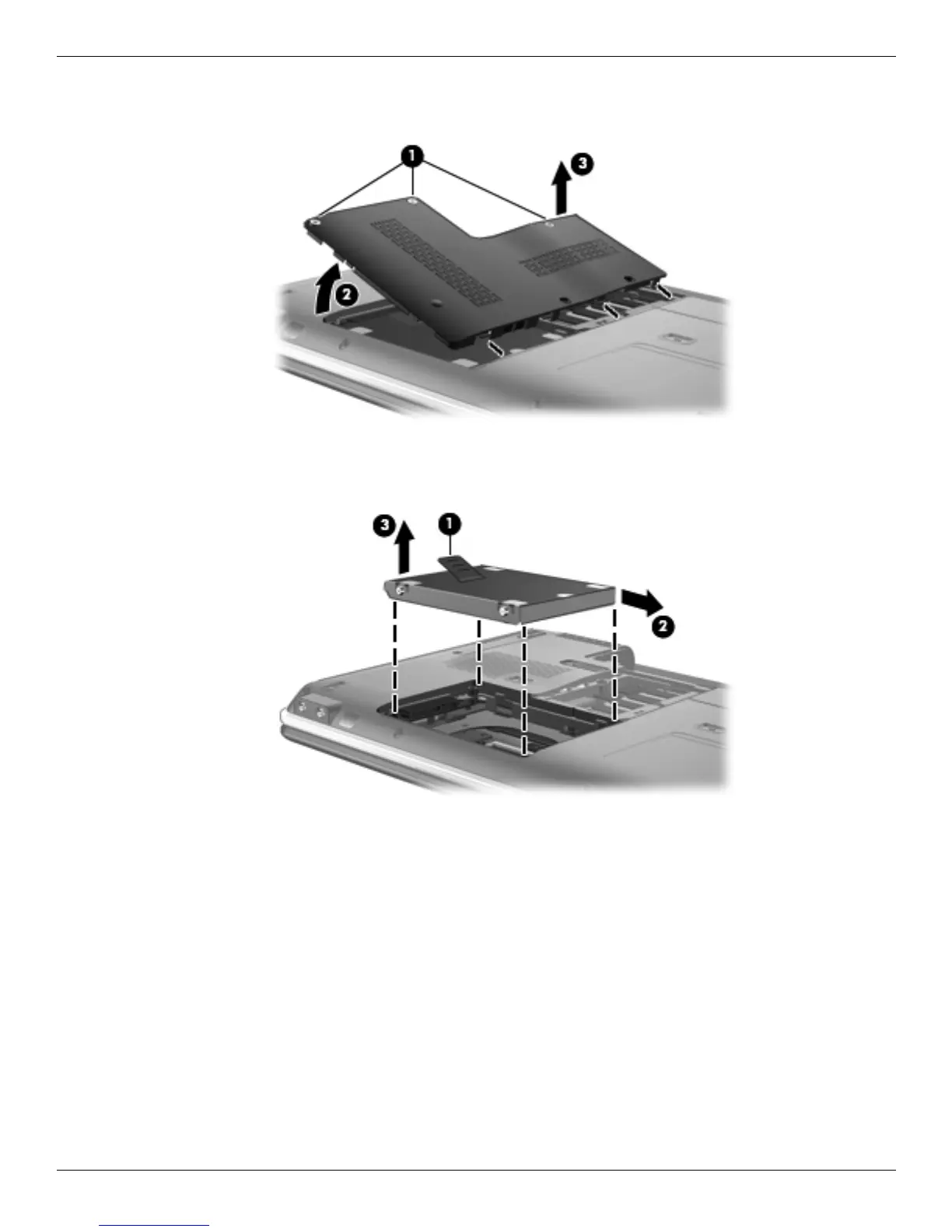

4. Remove the hard drive cover 3. The hard drive cover is included in the Plastics Kit, spare part number
531808-001.
5. Grasp the Mylar tab 1 on the hard drive and slide the hard drive 2 to the right.
6. Remove the hard drive 3 from the hard drive bay.
7. If it is necessary to replace the hard drive bracket, follow these steps:
a. Remove the two Phillips PM3.0×4.0 screws 1 from each side of the hard drive.
To Next Page
