4–28 Maintenance and Service Guide
Removal and replacement procedures

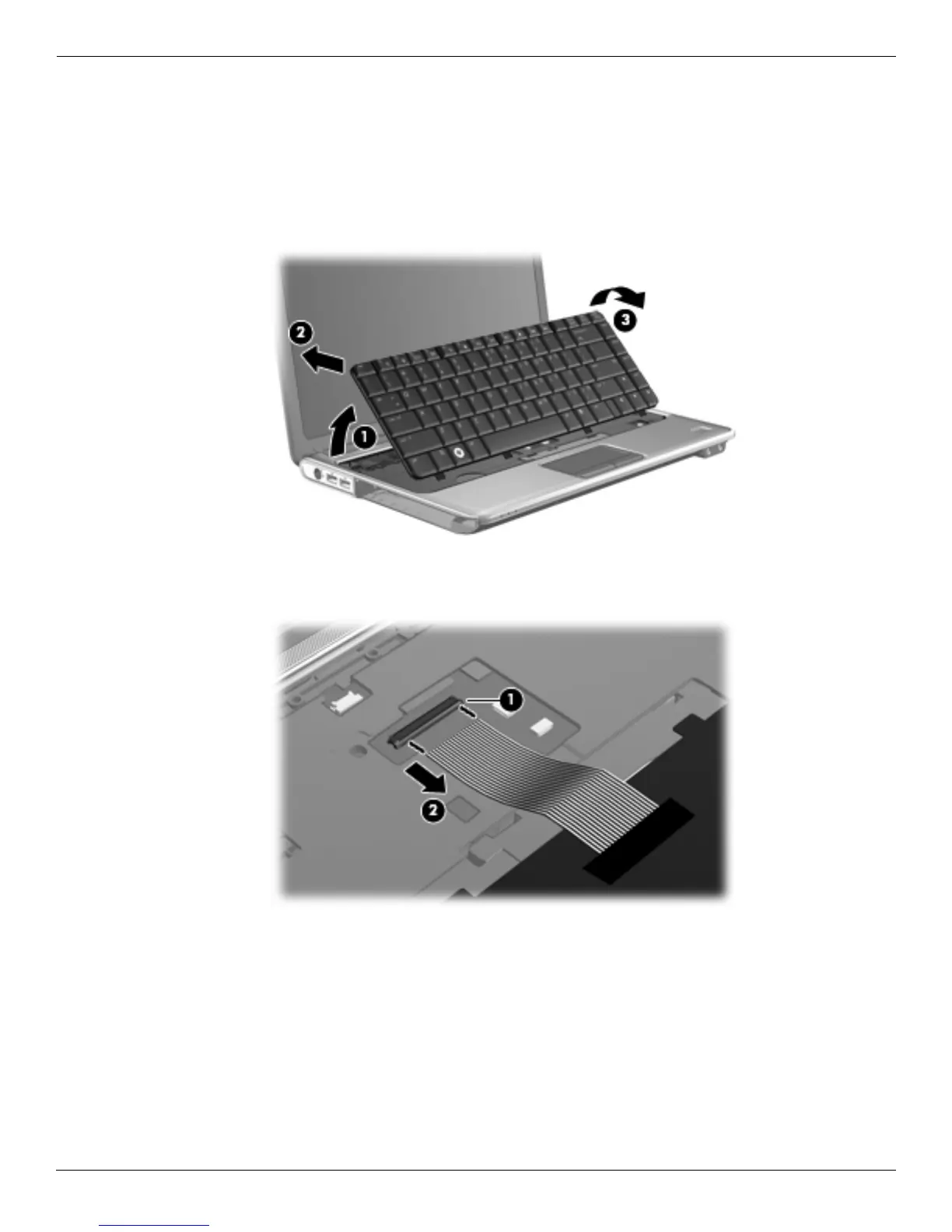

2. Turn the computer display-side up with the front toward you.
3. Open the computer as far as possible.
4. Lift the rear edge of the keyboard 1 until it rests at an angle.
5. Slide the keyboard 2 toward the display until the tabs on the front edge of the keyboard are clear of the
openings in the top cover.
6. Swing the rear edge of the keyboard 3 up and forward until it rests upside down on the top cover.
7. Release the zero insertion force (ZIF) connector 1 to which the keyboard cable is attached, and disconnect
the keyboard cable 2 from the system board.
8. Remove the keyboard.
Reverse this procedure to install the keyboard.
