HP Pavilion DV6-1050 Maintenance And Service Guide
4
of 1
of 1 rating
166 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Where used:

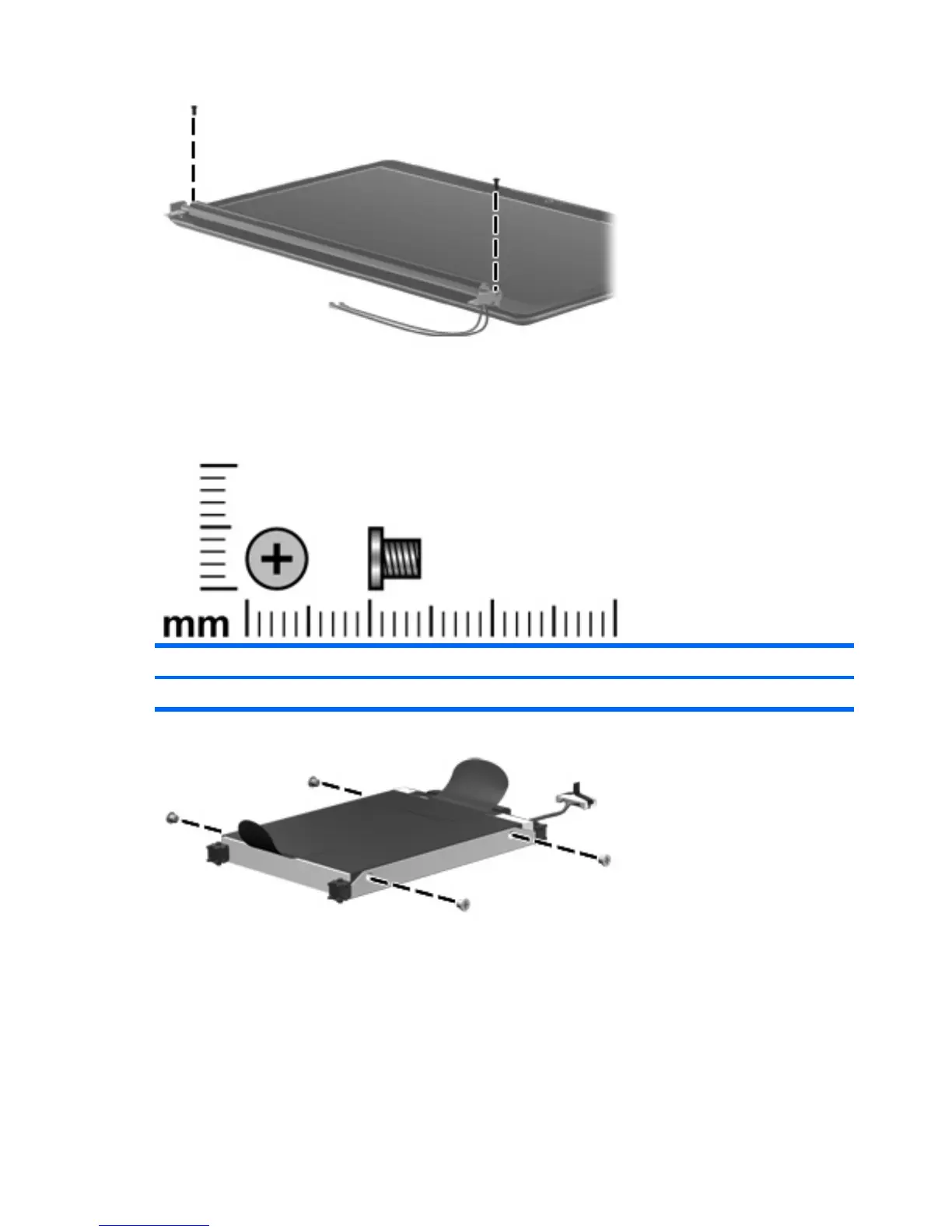

2 screws
that secure the displ
ay bezel to the display on
computers equipped with
BrightView display assemblies
Phillips PM3.0×3.5 screw
Color
Quantity
Length
Thread
Head diameter
Silver
4
3
.5 mm
3.0 mm
4.8 mm
Where used:
4 screws that secure the hard dr
ive br
acket to the hard drive
134
Chapter 7 Screw listing
141
143
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 External Component Identification
14
Top Components
14
Touchpad
14
Lights
15
Buttons, Speakers and Fingerprint Reader
17
Keys
19
Front Components
20
Rear Component
21
Right-Side Components
21
Left-Side Components
22
Bottom Components
23
Display Components
24
Cleaning the Display
24
Wireless Antennas (Select Models Only)
25
3 Illustrated Parts Catalog
26
Service Tag
26
Computer Major Components
27
Display Assembly Components
34
Antiglare Display Assembly Spare Parts
34
Brightview Display Assembly Spare Parts
35
Plastics Kit
36
Cable Kit
37
Miscellaneous Parts
38
Sequential Part Number Listing
39
4 Removal and Replacement Procedures
49
Preliminary Replacement Requirements
49
Tools Required
49
Service Considerations
49
Plastic Parts
49
Cables and Connectors
50
Drive Handling
50
Grounding Guidelines
51
Electrostatic Discharge Damage
51
Packaging and Transporting Guidelines
52
Workstation Guidelines
52
Equipment Guidelines
53
Component Replacement Procedures
54
Service Tag
54
Computer Feet
55
Battery
56
Webcam/Microphone Module
57
Optical Drive
59
Memory Module
61
TV Tuner Module
63
RTC Battery
64
Hard Drive
65
WLAN Module
68
Switch Cover and Keyboard
71
Power Button Board
75
Display Assembly
76
Speaker
86
Bluetooth Module
87
Top Cover
88
Modem Module
91
Audio/Infrared Board
92
USB Board
93
Power Connector Cable
94
System Board
96
TV Tuner Module Cable
98
Modem Module Cable
99
Fan/Heat Sink Assembly
100
Processor
104
5 Setup Utility
106
Starting the Setup Utility
106
Using the Setup Utility
107
Changing the Language of the Setup Utility
107
Navigating and Selecting in the Setup Utility
107
Displaying System Information
108
Restoring Default Settings in the Setup Utility
108
Exiting the Setup Utility
108
Setup Utility Menus
109
Main Menu
109
Security Menu
109
System Configuration Menu
109
Diagnostics Menu
110
6 Specifications
111
Computer Specifications
111
15.6-Inch, WXGA Display Specifications
112
16.0-Inch WXGA Brightview Display Specifications
113
16.0-Inch WXGA Antiglare Display Specifications
114
Hard Drive Specifications
115
Blu-Ray ROM DVD±R/RW Supermulti Double-Layer Drive Specifications
116
DVD±RW Supermulti Double-Layer Combo Drive Specifications
117
System DMA Specifications
118
System Interrupt Specifications
119
System I/O Address Specifications
120
System Memory Map Specifications
122
7 Screw Listing
123
Phillips PM2.0×3.0 Screw
124
Phillips PM2.0×14.0 Captive Screw
127
Phillips PM2.5×3.0 Screw
129
Phillips PM2.5×4.0 Screw
130
Phillips PM2.5×6.0 Screw
132
Phillips PM2.0×2.0 Broadhead Screw
133
Phillips PM2.5×5.0 Screw
134
Phillips PM2.5×5.0 Captive Screw
136
Phillips PM2.5×5.5 Captive Screw
138
Phillips PM2.5×7.0 Screw
139
Phillips PM3.0×3.5 Screw
142
8 Backup and Recovery
143
Recovering System Information
143
Creating Recovery Discs
144
Backing up Your Information
145
When to Back up
145
Backup Suggestions
145
Using System Restore Points
145
When to Create Restore Points
145
Create a System Restore Point
146
Restore to a Previous Date and Time
146
Performing a Recovery
147
Recovering from the Recovery Discs
147
Recovering from the Dedicated Recovery Partition (Select Models Only)
147
9 Connector Pin Assignments
148
Audio-In (Microphone)
148
Audio-Out (Headphone)
149
External Monitor
149
Hdmi
150
Modem)
151
Network)
151
Universal Serial Bus
152
10 Power Cord Set Requirements
153
Requirements for All Countries or Regions
153
Requirements for Specific Countries or Regions
154
11 Recycling
155
Battery
155
Display
155
Index
161
